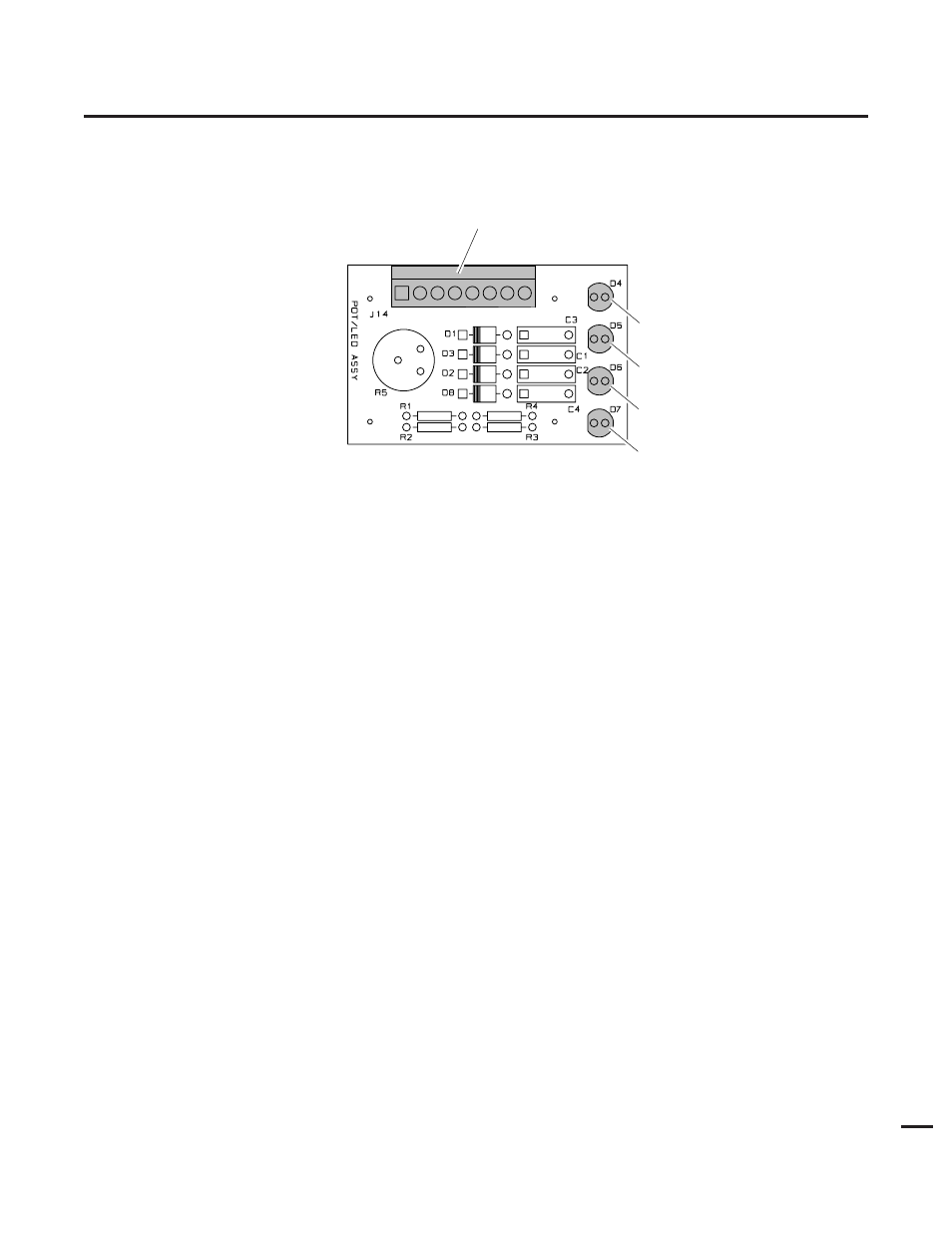

APPENDIX 22: POT / LED BOARD LAYOUT

J14

D4

D5

D7

D6

A-03712

Pot/LED PC Board Signals

J14-1

from Main PC Board (J27-1) Pot High

J14-2

Main PC Board (J27-2) Pot Wiper

J14-3

from Main PC Board (J27-3) Pot Low

J14-4 12vdc (J27-4)
J14-5

Logic Low Signal for AC OK Indicator from Logic PC Board (J27-5)

J14-6

Logic Low Signal for GAS Indicator from Logic PC Board (J27-6)

J14-7

Logic Low Signal for TEMP Indicator from Logic PC Board (J27-7)

J14-8

Logic Low Signal for DC Indicator from Logic PC Board (J27-8)

D4

Front Panel AC Indicator

D5

Front Panel TEMP Indicator

D6

Front Panel GAS Indicator

D7

Front Panel DC Indicator
