APPENDIX A-22 Manual 0-4691
A

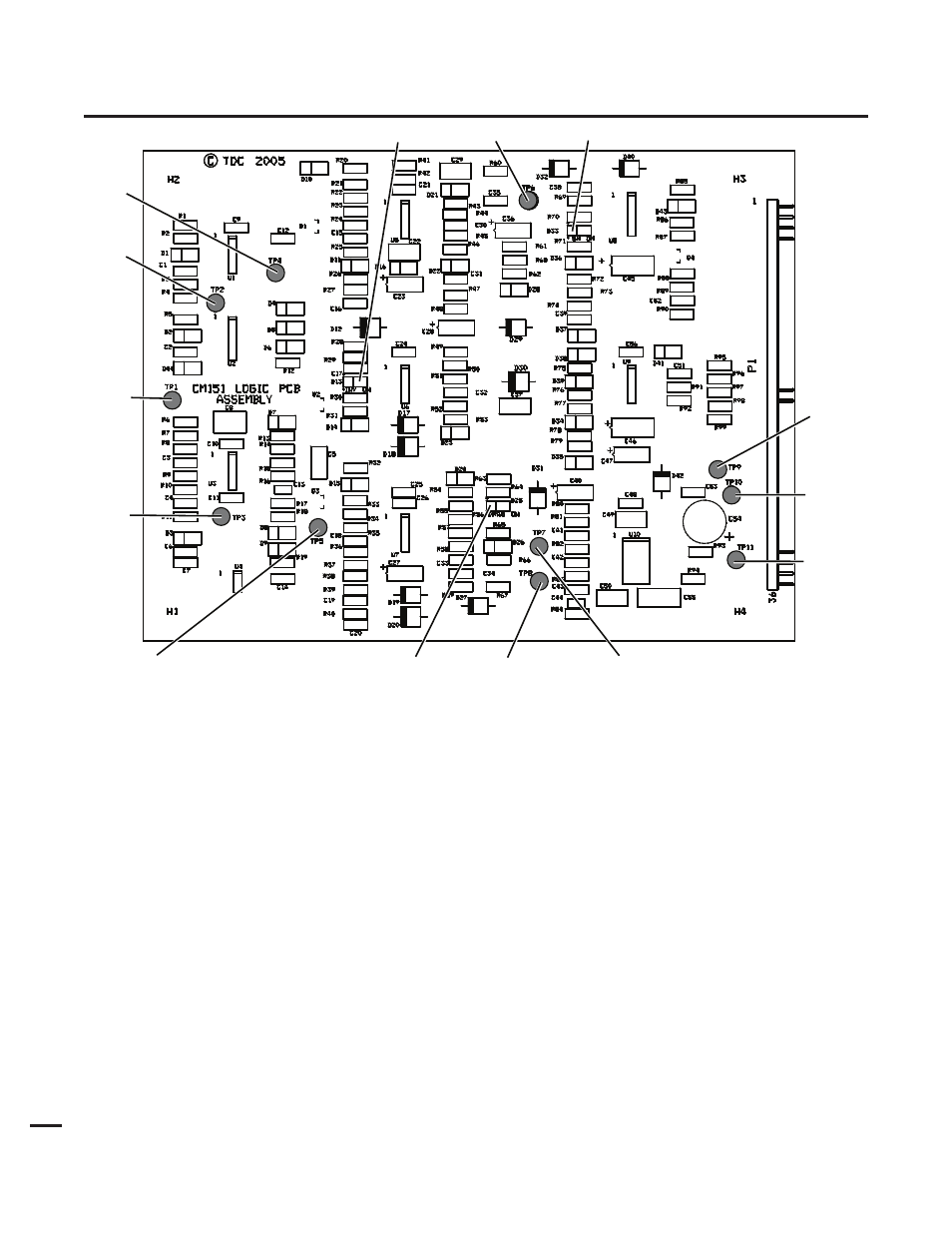

APPENDIX 21: LOGIC BOARD LAYOUT
Logic Board Signals
P1-1 +12vdcfrom Main Power PCB
P1-2 +12vdcfrom Main PCB
P1-3 DC Com
P1-4 DC Com
P1-5
MC1 ON signal
P1-6 Tip Sense
P1-7
RUN/SET Signal Logic Low for SET
P1-8 Logic Low = PS1 Pressure Switch
closed = Pressure OK
P1-9 Logic Low = TS1 Closed = OVERTEMP
P1-10 Logic Low = CSR
P1-11 Logic Low = Gas ON
P1-12 Logic Low = DC OK
P1-13 Logic Low = OVTEMP
P1-14 Logic Low = AC OK
P1-15 Logic Low = Torch Switch
P1-16 Logic Low = Torch Switch Return
P1-17 Logic Low = +12vdc
P1-18 Logic Low = Pot High
P1-19 Logic Low = Pot High
P1-20 Pot Low
P1-21
Gate Drive B Return
P1-22 Gate Drive B
P1-23
Gate Drive A Return
P1-24 Gate Drive A
P1-25 - Out Sense
P1-26 Current Sense
P1-27 Current Sense
P1-28 Current Sense Return
P1-29 Current Sense Return
P1-30 DC Com
P1-31 DC Com
P1-32 Not Used
P1-33 I Sense
P1-34 Not Used
P1-35 Not Used
P1-36 TipVolts
INDICATORS:
D13 INV ON
D25 DRAG ON
D33 SWITCH ON
TEST POINTS:
TP-1 Common
TP-2 Current Demand Signal
TP-3 Converter Enable
TP-4 CSR (Logic Low)
TP-5 Not used
TP-6 Fault (Logic Low)
TP-7 DC OK (Logic Low)
TP-8 Tip Sense
TP-9 Current Sense
TP-10 Gate Drive A
TP-11 Gate Drive B
Art # A-04641
TP1
TP7
TP2
TP8
TP3
TP9
TP4
TP10
TP5
TP11
TP6 D33 D13
D25
