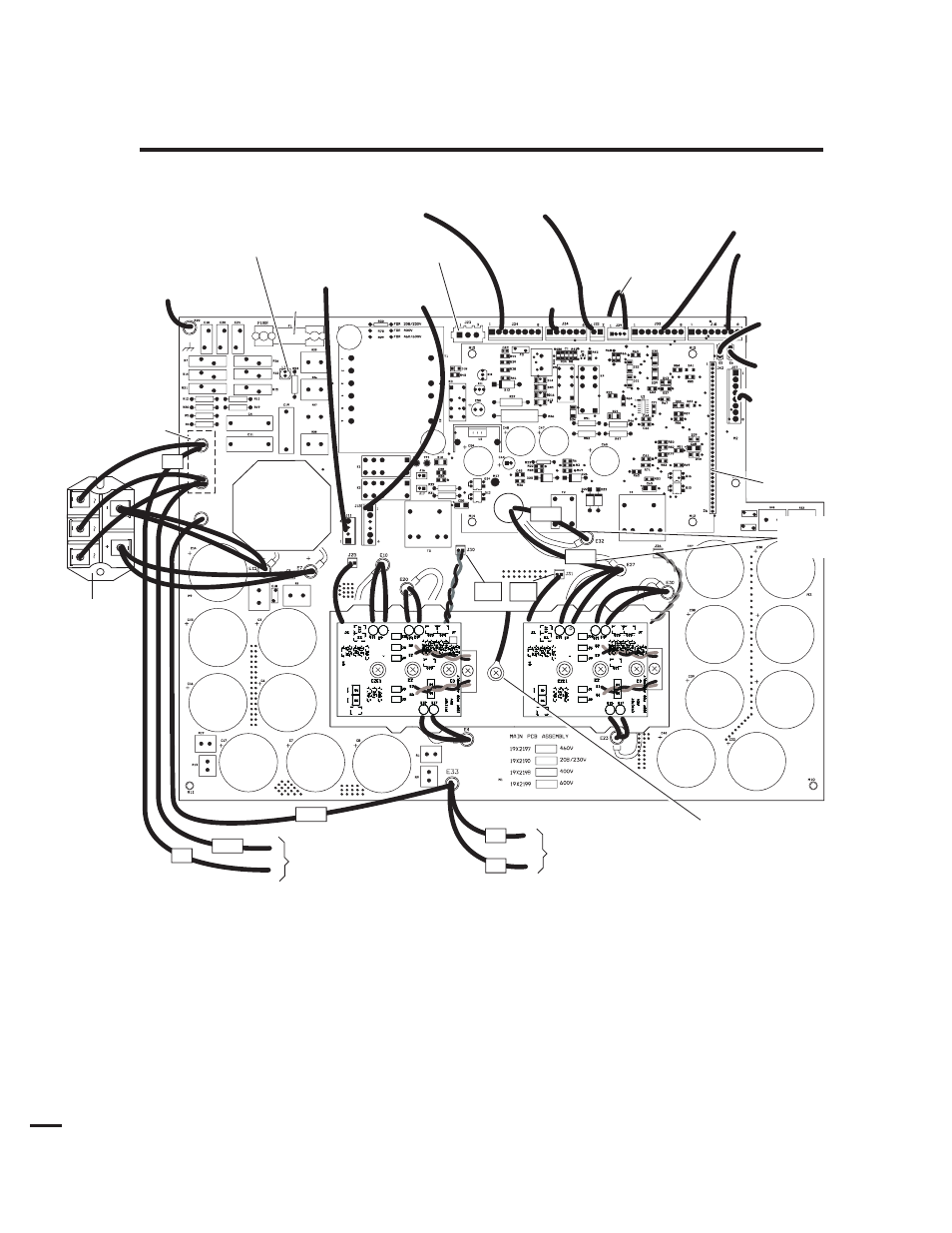

APPENDIX 19: MAIN PC BOARD WIRING LAYOUT
(208/230-Volt POWER SUPPLIES)
e
e
B
e
*
Input
Diode
(mounts
to center
chassis)
E2
E3
E1
Art # A-04606
To Input
Contactor
To Chassis Ground
To Logic Board
via Connector
To Power Output Board
To Torch
Connector
To On/Off and
Run/Rapid Restart
Set Switches
To Fans
To Main
Input Contactor
Test Connector To Heat Sink
Temp Sensor
Heat Sink
Temp Sensor
To Inductor Temp Sensor
To Press Switch/Solenoid/Contactor
Fuse
Secondary
Transformer
Copper
Strap
#1
To Input
Contactor
To Auto Interface
Board J1-5
To Auto Interface
Board J1-6
To Main
Transformer
#33
#78
#1
LT1
#32
#27
#2
#3
To POT/LED PCB
(or to
Optional Remote
Current Control )*
* If installed in conjuction with
Automation Interface PC Board
J30 J31
