Item Field Range Access Description
OFF, 40 to 122°F
(OFF, 4.5 to 50.0°C)
LTD
USER
INST
ADV

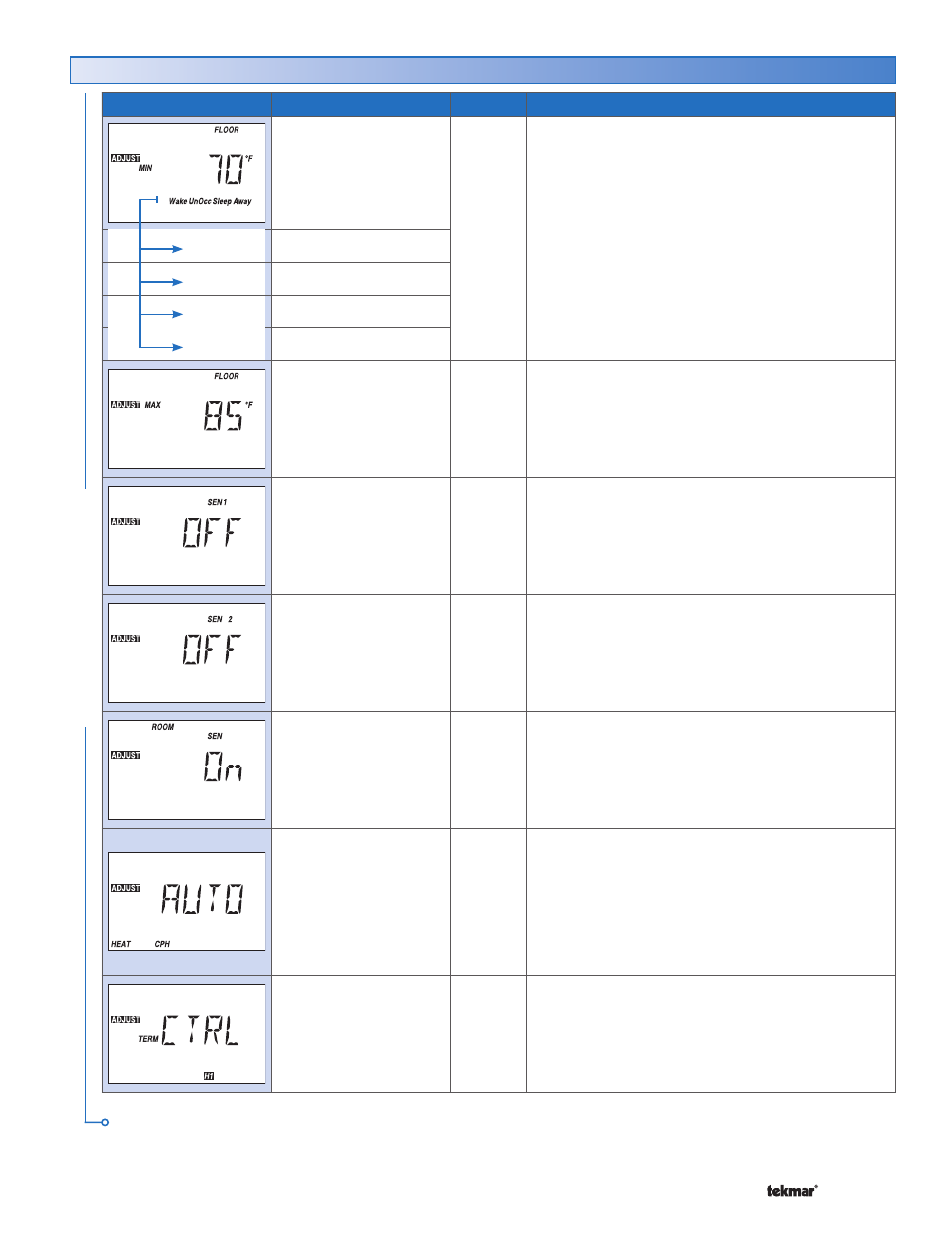

FLOOR MINIMUM SECTION A
Select the minimum floor temperature for each
event.
Note: This item is only available when Sensor 1 or 2
is set to Floor. At the Limited Access Level, you can
only adjust the temperature +/-3°F (1.5°C) from the
last setting.
Wake Default = 70°F (21.0°C)
UnOccupied Default = OFF
Occupied Default = 70°F (21.0°C)
Sleep Default = OFF
40 to 122°F
(4.5 to 50.0°C)
Default = 85°F
(29.5°C)
ADV
FLOOR MAXIMUM SECTION A
Maximum floor temperature.
Note: This item is only available when Sensor 1 or
2 is set to Floor.
OFF, ROOM,
FLOR (Floor),
REM (Remote)
Default = OFF
INST
ADV
SENSOR 1 SECTION A
Select the type of sensor connected to the auxiliary
sensor input 1.
OFF, ROOM,
FLOR (Floor),
OUT (Outdoor)
Default = OFF
INST
ADV
SENSOR 2 SECTION A
Select the type of sensor connected to auxiliary
sensor input 2.
OFF, ON
Default = ON
INST
ADV
ROOM SENSOR SECTION A
Selects whether the built-in room sensor is functional.
SYNC, AUTO
2 to 12
Default = AUTO
ADV
HEAT CYCLES PER HOUR SECTION D
Select the number of heating cycles per hour. SYNC
results in 5 CPH. All tN4 thermostats that are connected
and have the SYNC setting selected synchronize their
cycle to the same starting time.
Note: This item is only available when the tN4 System
Control DIP switch is set to None.
CTRL, HRF1, HRF2,
COIL, CONV, RAD,
BASE, OTHR
Default =CTRL
INST
ADV
HEAT 1 TERMINAL SECTION E
Select the type of heating terminal.
Note: If CTRL is selected, the terminal unit selected
on the tN4 System Control is used.
Continued on next page.
