11 of 32 © 2007 D 543 - 08/07
Item Field Range Access Description
Occ, Away
PERM1, PERM Away 2
PERM UnOcc 3,
PERM 4, PERM 5
TMPY Occ 6
TMPY 7, TMPY 8
Default = Occ PERM 1
USER
INST
ADV
SELECT SECTION K
Select the scene for the building.
Note: Only Occ and AWAY are available when no
schedule is selected.
INF, 1 to 180 days
Default = INF
USER
INST
ADV
AWAY HOLD SECTION K
Set the number of days for the Permanent Away 2
scene. When the scene is selected, the thermostat
remains in that scene for the set number of days then
reverts to the last permanent scene.
Schd
Wake
Occ
UnOcc
Sleep
Away
Default = SCHD
INST
ADV
SET PERMANENT 1 SECTION K
Select an action for the Permanent 1 scene.
Note: This item is only available when SCENE menu
is set to ON and a schedule has been selected.
Schd
Wake
Occ
UnOcc
Sleep
Away
Default = SCHD
INST
ADV
SET PERMANENT 4 SECTION K
Select an action for the Permanent 4 scene.
Note: This item is only available when SCENE menu
is set to ON and a schedule has been selected.
Schd
Wake
Occ
UnOcc
Sleep
Away
Default = SCHD
INST
ADV
SET PERMANENT 5 SECTION K
Select an action for the Permanent 5 scene.
Note: This item is only available when SCENE menu
is set to ON and a schedule has been selected.
Schd
Wake
Occ
UnOcc
Sleep
Away
Default = SCHD
INST
ADV
SET TEMPORARY 7 SECTION K
Select an action for the Temporary 7 scene. The
scene lasts for 4 hours before reverting to the previous
permanent scene.
Note: This item is only available when SCENE menu
is set to ON and a schedule has been selected.
Schd
Wake
Occ
UnOcc
Sleep
Away
Default = SCHD
INST
ADV
SET TEMPORARY 8 SECTION K
Select an action for the Temporary 8 scene. The
scene lasts for 8 hours before reverting to the previous
permanent scene.
Note: This item is only available when SCENE menu
is set to ON and a schedule has been selected.

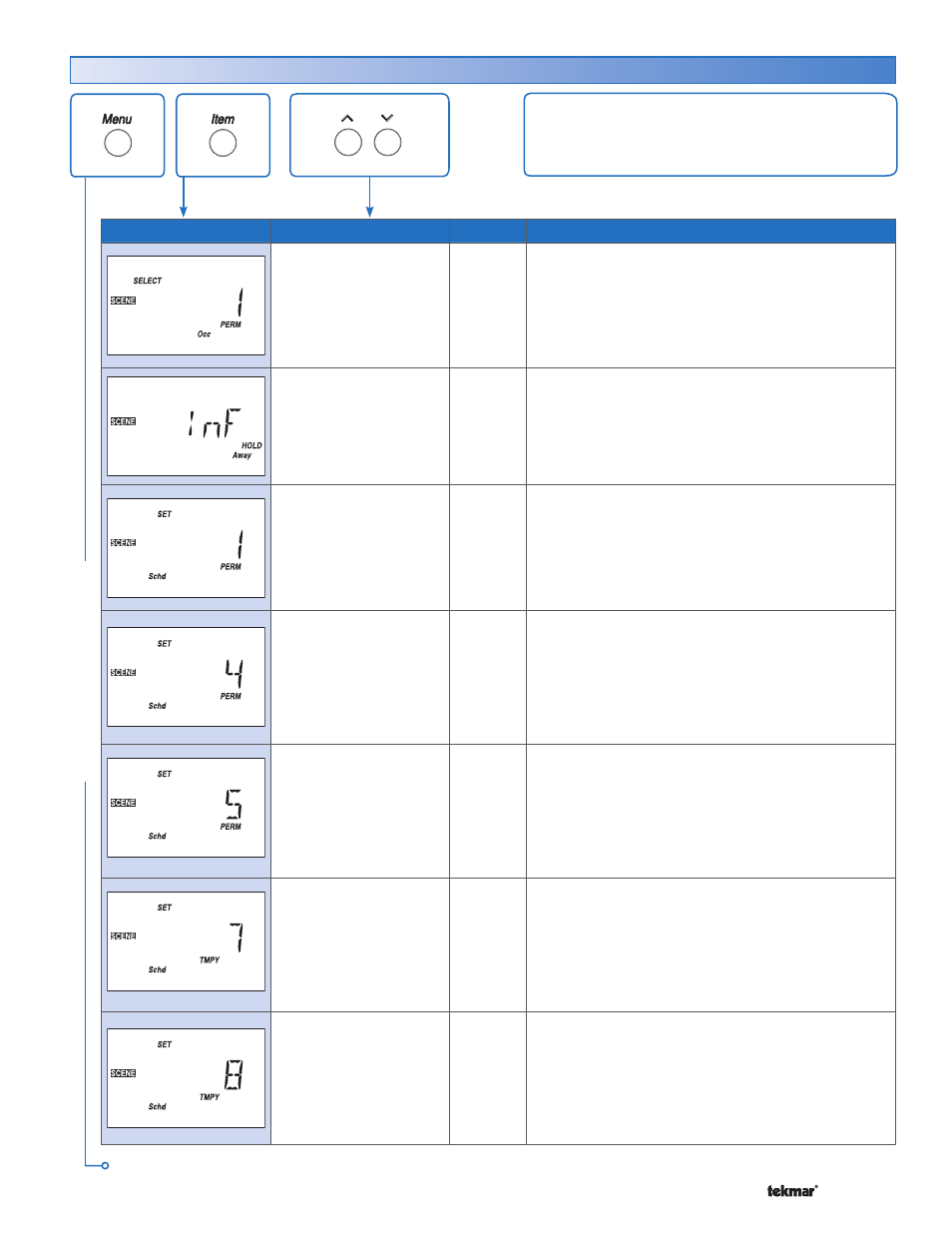

Scene Menu (1 of 2)
The Scene Menu items set the current scene as
well as the scene settings.
SCENE MENU
Continued on next page.
