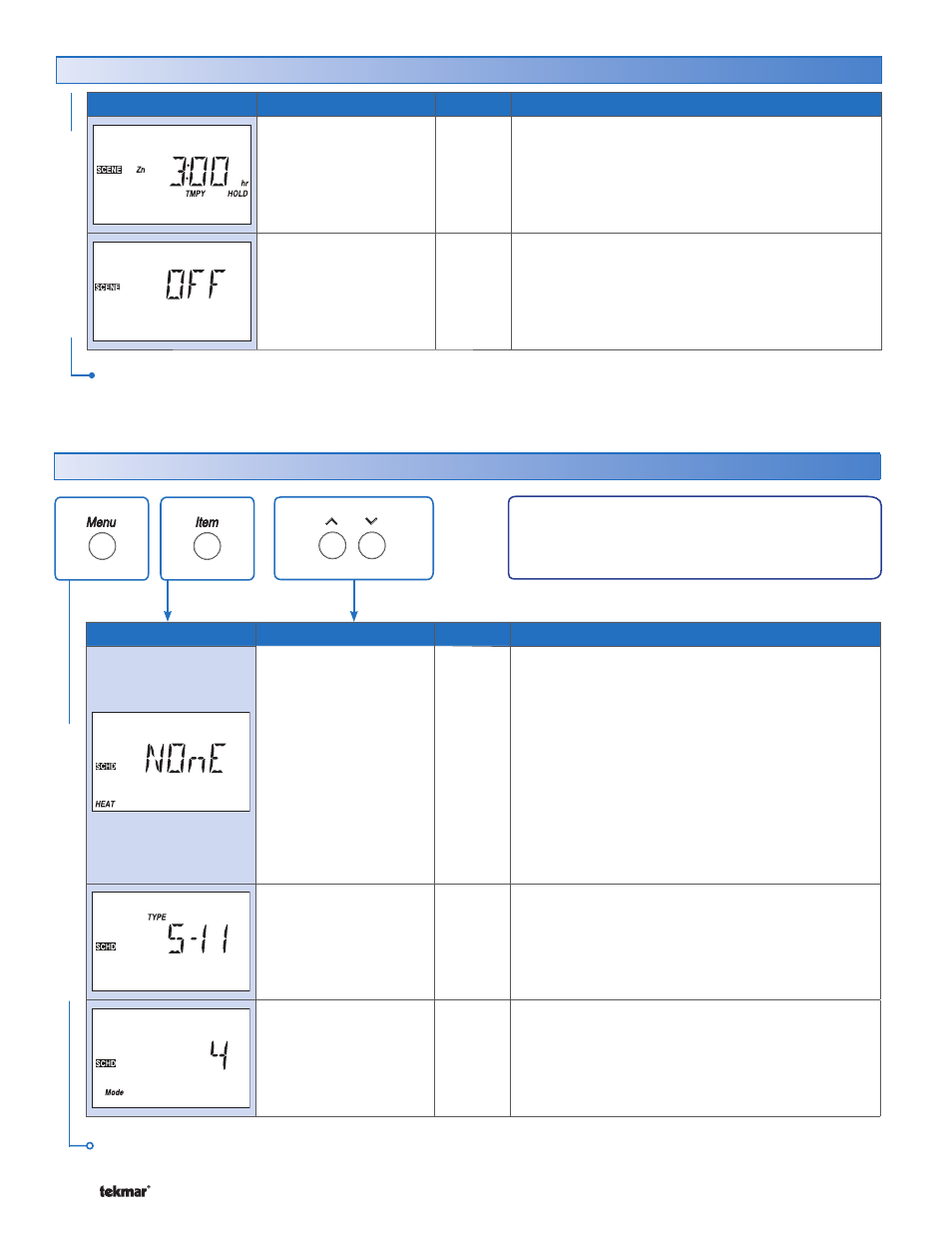

Item Field Range Access Description
1:00 to 10:00 hr
(½ hr intervals)
Default = 3:00
USER
INST
ADV
TEMPORARY ZONE HOLD SECTION C
Select the number of hours the temporary hold affects
this zone.
OFF. ON
Default = OFF
INST
ADV
SCENE MENU SECTION K
Select the Scene feature of the thermostat.
Scene Menu (2 of 2)
SCENE MENU
After the last item, the control returns to the first item in the menu.
Item Field Range Access Description
NONE, ZONE,
MST1, MST2,
MST3, MST4,
MBR1, MBR2,
MBR3, MBR4
Default = NONE
USER
INST
ADV
HEAT SCHEDULE SECTION I
If a schedule is not required, select NONE.
If the schedule is only used by this thermostat, select
ZONE.
If the schedule is shared with other thermostats,
select MST1 to MST4.
If the schedule is set on another thermostat, select
MBR1 to MBR4.
Note: This item can be viewed in the USER and
INST access levels but can only be adjusted in the
ADV access level.
24 hr, 5-2,
5-11, 7dAY
Default = 5-11
USER
INST
ADV
SCHEDULE TYPE SECTION I
Select the type of schedule.
Note: This item is only available when the Heat
Schedule is set to ZONE or MST1 to MST4.
2 (Occ, UnOcc),
4 (Wake, UnOcc,
Occ, Sleep)
Default = 4
USER
INST
ADV
SCHEDULE MODE SECTION I
Select the number of events per day.
Note: This item is only available when the Heat
Schedule is set to ZONE or MST1 to MST4.
Schedule Menu (1 of 4)
The Schedule menu items set the schedule type, the
number of events per day, and the event times.
Continued on next page.
SC
HEDULE MENU
