© 2007 D 543 - 08/07 2 of 32
Table of Contents
Table of Contents ............................................................2
Display and DIP Switches ..............................................2
Dip
Switches ...........................................................2
Access Levels .........................................................3
Display and Symbols Description............................3
User Interface .........................................................4
Setup ..............................................................................5
View
Menu .............................................................5
Adjust Menu ............................................................6
Time Menu ............................................................ 10
Scene Menu .......................................................... 11
Schedule Menu ..................................................... 12
Miscellaneous Menu ............................................ 15
Thermostat Operation .................................................. 17
Auxiliary Sensors ................................................. 17
Mode of Operation ............................................... 17
Adjusting the Temperature ................................... 18
Cycles Per Hour ................................................... 18
Heating Terminal Units .........................................20
Heating Operation ................................................ 21
Cool Groups .........................................................23
Time Clock ............................................................23
Setting the Schedule ............................................. 24
Optimum Start / Stop ...........................................25
Scenes .................................................................25
Away Hold ............................................................27
Offset ...................................................................27
Units of Temperature ............................................27
Backlight ..............................................................27
tN4 Address .........................................................27
Pump Exercising ...................................................27
Error Messages ............................................................28
Cleaning the Thermostat ............................................. 31
Warranty .......................................................................32
Display and DIP Switches

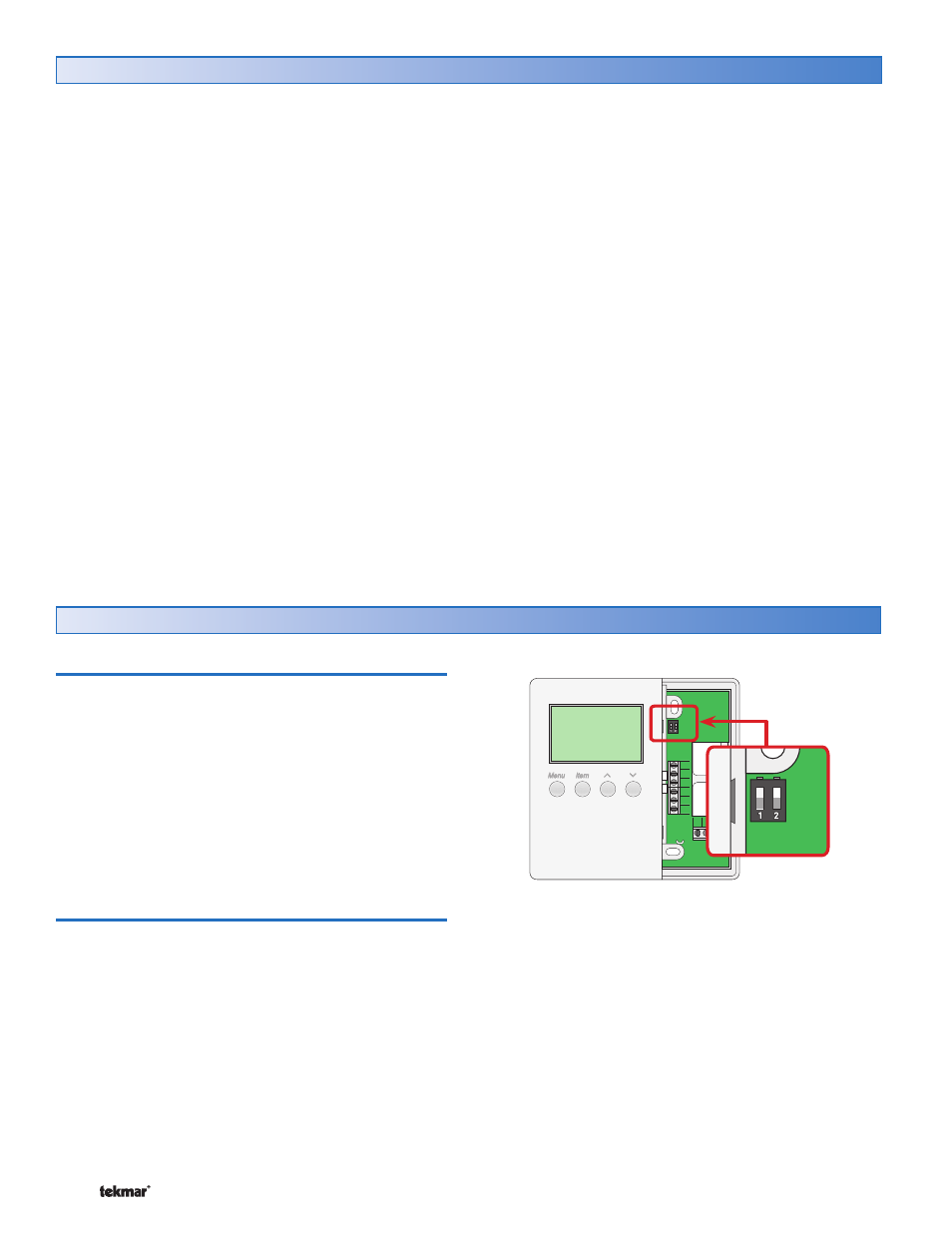

Dip Switches
W1 Rh1 Rh2 W2
R
C
tN4
Com
S1
S2
tN4 System Control (DIP Switch #2)
A tN4 System Control is a control, not a thermostat, that
the 543 thermostat connects to through the tN4 bus. All
tN4 compatible Outdoor Reset Modules are tN4 System
Controls.
•
• If the thermostat is connected to a tN4 System Control,
set the tN4 System Control DIP switch to tN4 System
Control (down position).
• • If the thermostat is not connected to a tN4 System
Control, set the tN4 System Control DIP switch to None
(up position).
Lock / Unlock (DIP Switch #1)
Use the Lock / Unlock DIP switch to lock or unlock the
Access Level of the 543.
•
• To unlock the Access Level, set the DIP switch to the
unlocked (down) position.
• • To lock the Access Level, set the DIP switch to the locked
(up) position. Once locked, a padlock is displayed in the
lower right corner of the display and the Access Level
cannot be changed.
Note: The tN4 System Control’s Lock / Unlock DIP switch
overrides the Lock / Unlock DIP switch on the 543. Set
the tN4 System Control’s Lock / Unlock DIP switch to the
Unlock position before Access Levels can be changed on
the thermostat.
