15 of 32 © 2007 D 543 - 08/07

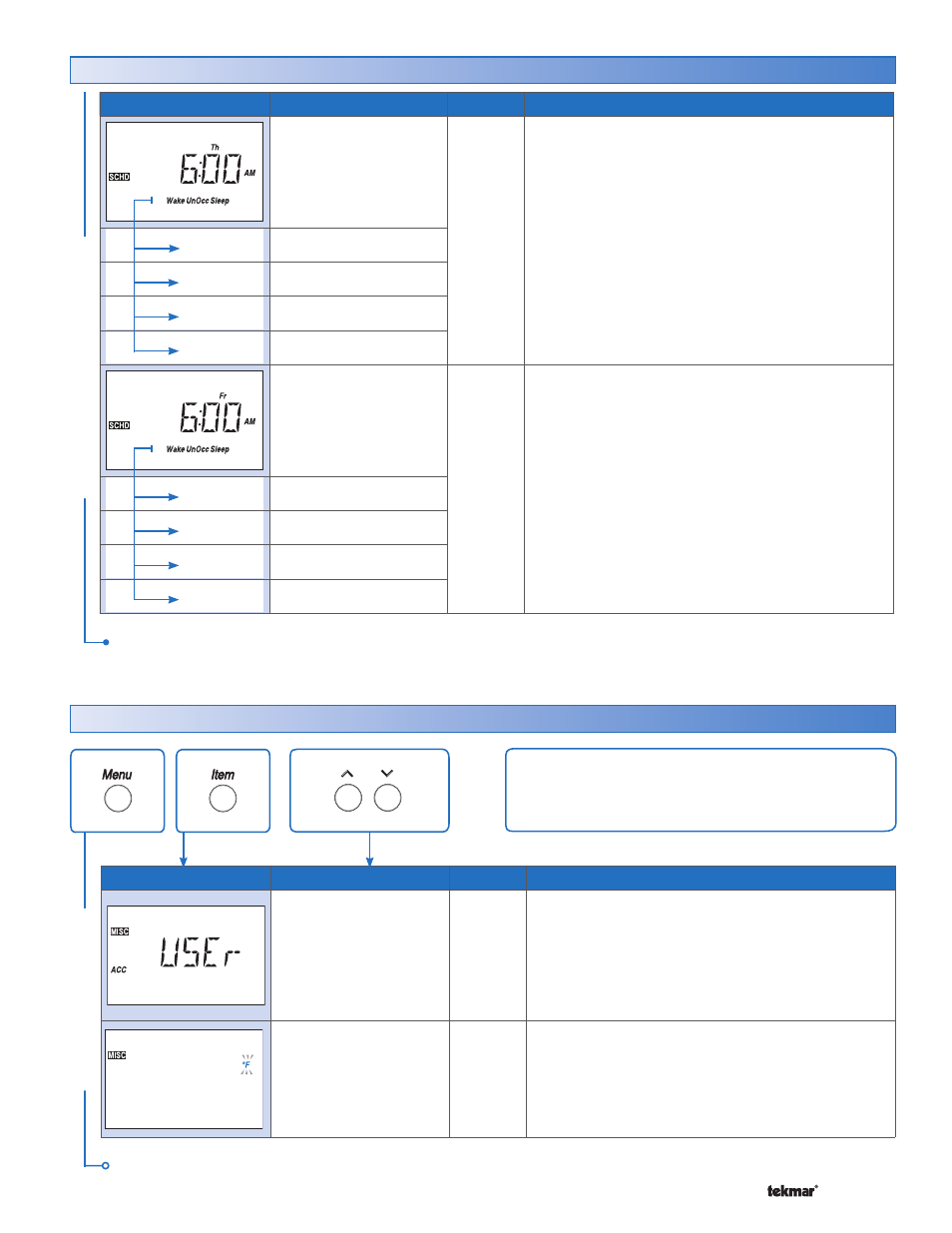

Item Field Range Access Description
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
THURSDAY SECTION I
Select the times for the scheduled events.
Note: This item is only available when the Schedule
Type is set to 7dAY.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
FRIDAY SECTION I
Select the times for the scheduled events.
Note: This item is only available when the Schedule
Type is set to 7dAY.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
Schedule Menu (4 of 4)
SC
HEDULE MENU
Item Field Range Access Description
SEC, LTD, USER,
INST, ADV
Default = USER
SEC
LTD
USER
INST
ADV
ACCESS LEVEL
The access level of the thermostat. The access column
shows which items are visible in each access level.
Note: This item is only available when the Lock / Unlock
DIP switch on the thermostat and the tN4 system
control are set to Unlock.
°F, °C
Default = °F
USER
INST
ADV
UNITS SECTION O
Select Fahrenheit or Celsius as the temperature
units.
Misc (Miscellaneous) Menu (1 of 2)
The Miscellaneous menu items set display and control
options such as access level and temperature units.
Continued on next page.
MISC MENU
After the last item, the control returns to the first item in the menu.
