tekmar 543 Thermostat Installation - Manual (Page 6)

© 2007 D 543 - 08/07 6 of 32
Item Field Range Access Description
OFF, HEAT,
Default = HEAT
USER
INST
ADV
MODE OF OPERATION SECTION B
Mode of operation of the thermostat.
40 to 95°F
(4.5 to 35.0°C)
LTD
USER
INST
ADV
SET HEAT SECTION C
Selected air heating temperature for each event.
Note: At the Limited Access Level, you can only
adjust the temperature +/-3°F (1.5°C) from the last
setting.
Away is only available when Scenes are turned on.
Wake Default = 70°F (21.0°C)
UnOccupied Default = 62°F (16.5°C)
Occupied Default = 70°F (21.0°C)
Sleep Default = 62°F (16.5°C)
Away Default = 62°F (16.5°C)

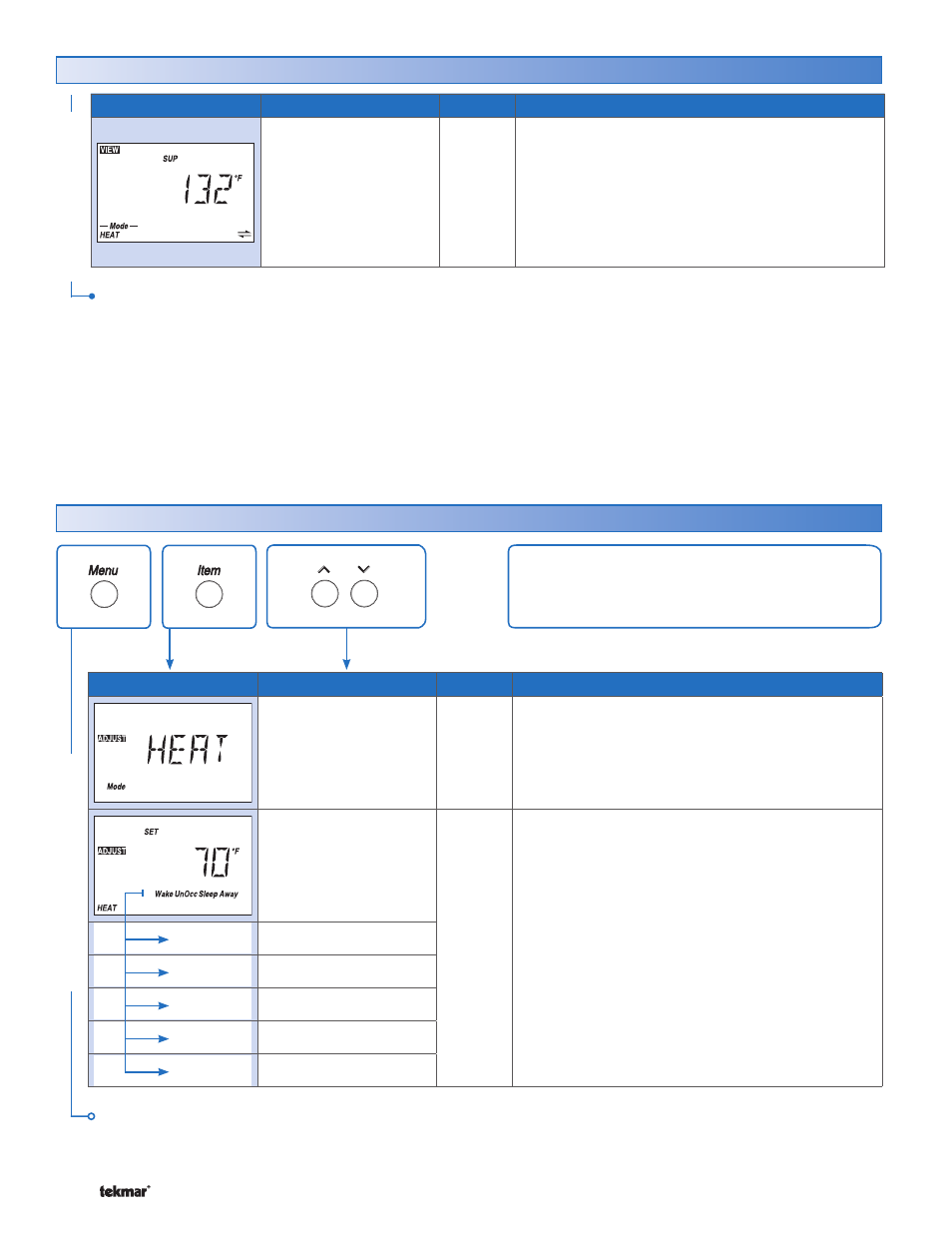

Adjust Menu (1 of 4)
The Adjust Menu items are the programmable settings
used to operate the mechanical equipment.
ADJUS
T MENU
Item Field Range Access Description
-22 to 266°F
(-30.0 to 130.0°C)
INST
ADV
SUPPLY TEMPERATURE OF TN4 BUS SECTION F
Actual water temperature of the tN4 bus for the first
stage of heat.
Note: This item is only available when the thermostat
is connected to an Outdoor Reset Module and the
DIP switch is set to tN4 System Control.
View Menu (2 of 2)
VIEW MENU
After the last item, the control returns to the first item in the menu.
Continued on next page.
