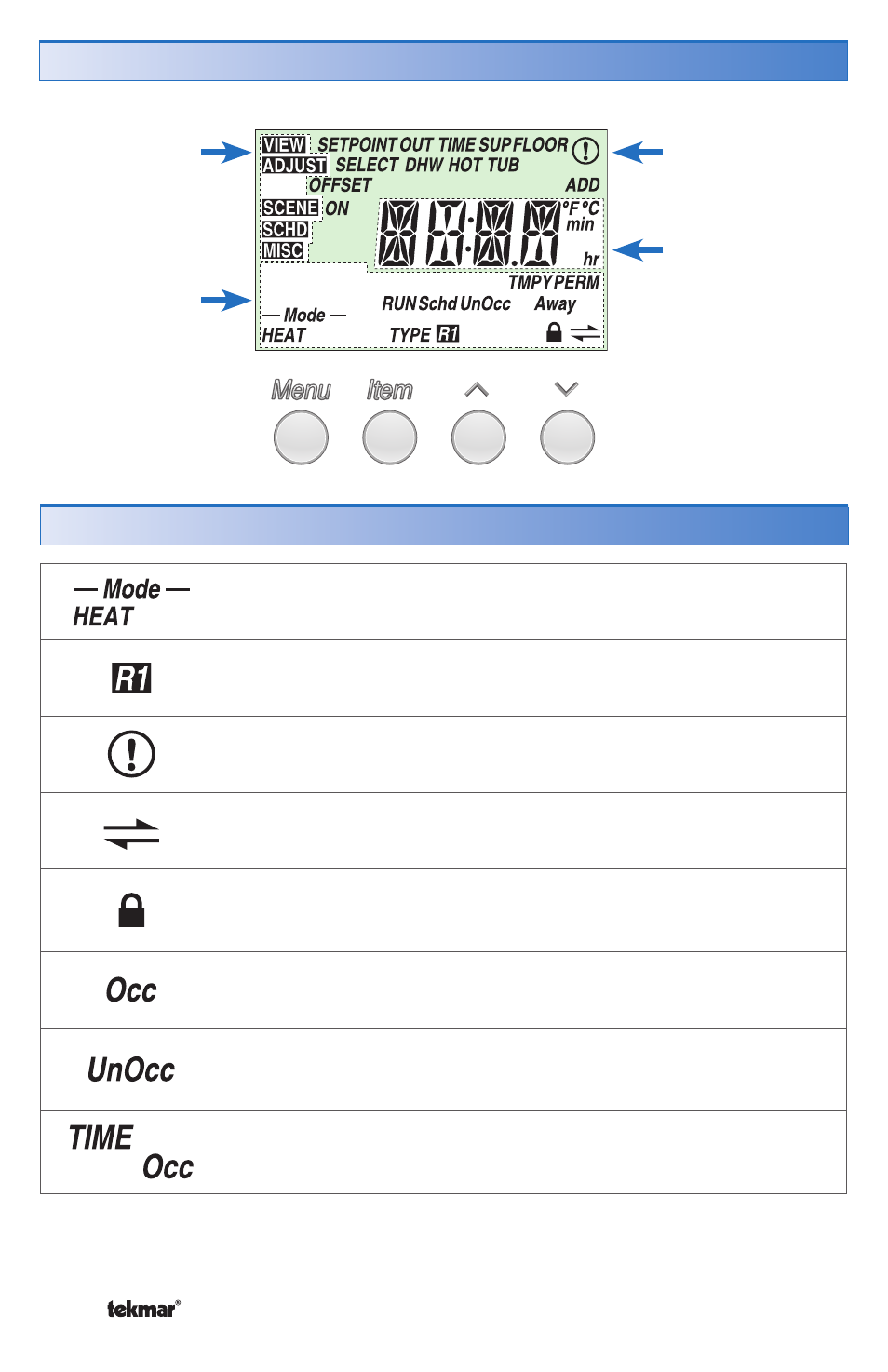

Item Field
Displays an
abbreviated
name of the
selected item
Number Field
Displays the
current value of
the selected item
Status Field
Displays the
current status
of the control’s
inputs, outputs
and operation
Menu Field
Displays the
current menu
MODE OF OPERATION
Displays whether the device is in heating or off mode.
RELAY 1
Displays when relay contact 1 is closed.
WARNING
An error is present.
tN4 COMMUNICATION
A tN4 network is detected.
LOCK
The Access Levels are locked or a menu option is visible but
not adjustable.
OCCUPIED
Displays when operating at the occupied temperature.
UNOCCUPIED
Displays when operating at the unoccupied setback
temperature.
OCCUPIED TIME
Displays when operating temporarily at the occupied temperature
due to a remote enable or manual enable.
Display
Symbols Description
