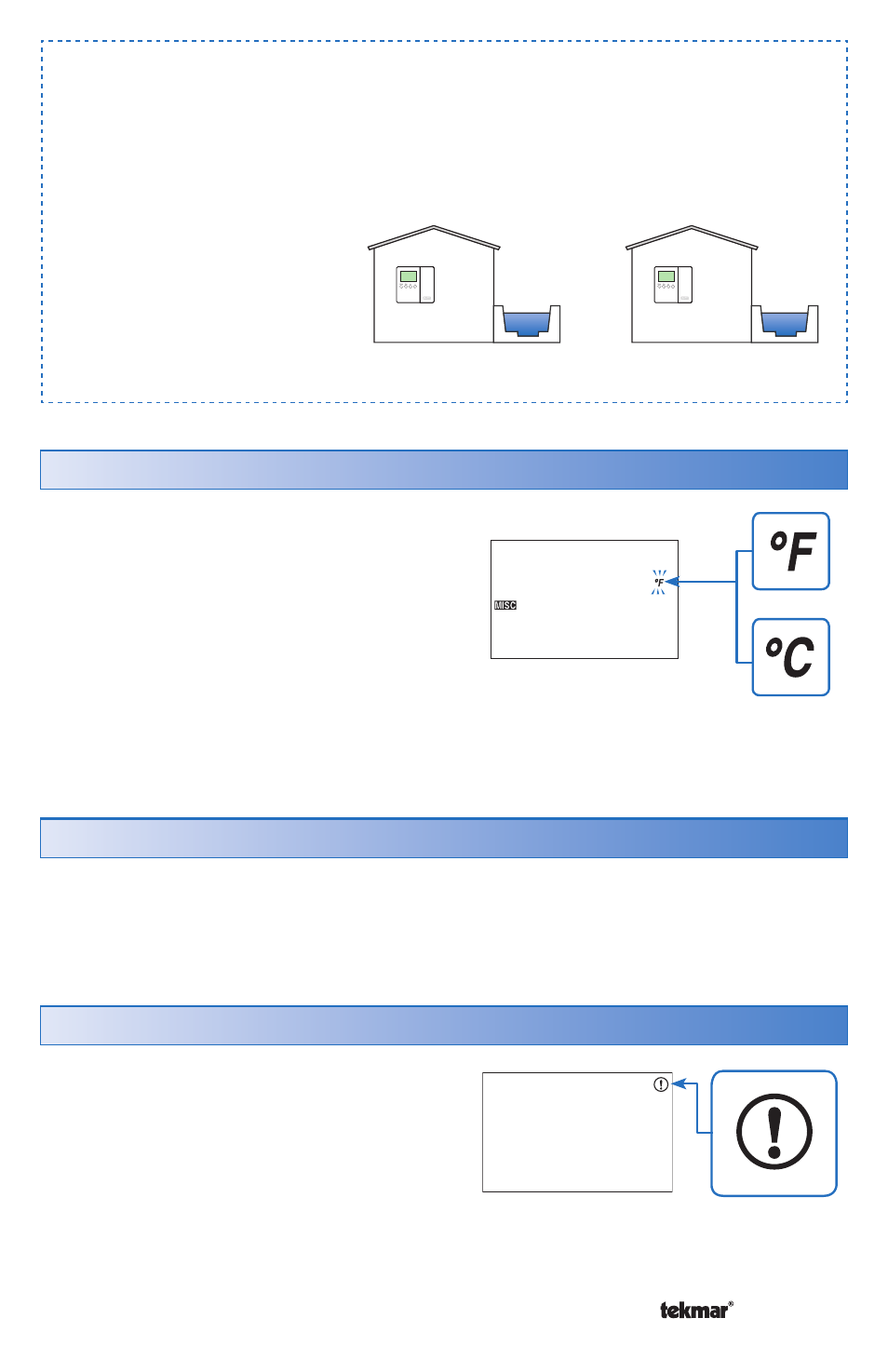

Example:
A house is normally in scene 1. There is a living room that operates on a schedule
and there is a hot tub that is normally at the unoccupied temperature. When
entertaining guests, the scene is changed to scene 6. Scene 6 has been pre-
programmed to change the hot tub to operate at the occupied temperature for 3
hours.
Living room thermostat:
Scene 1 is set to Schedule.
Scene 6 is set to Schedule.
Hot tub setpoint control:
Scene 1 is set to Unoccupied.
Scene 6 is set to Occupied.
Living Room Living Room
Scheduled
Event
Hot Tub
Unoccupied
Scheduled
Event
Hot Tub
Occupied
70°F
94°F
70°F
104°F
or
The temperature can be displayed in either
Fahrenheit (°F) or in Celsius (°C).
To change the units of temperature:
1. Use the Menu button to select the
Misc menu.
2. Use the Item button until the units
flash.
3. Use the Up or Down button to select
Fahrenheit (°F) or Celsius (°C).
Temperature Units
Clean the Setpoint Control’s exterior using a damp cloth. Moisten the cloth with
water and wring out prior to wiping the control. Do not use solvents or cleaning
solutions.
Cleaning the Setpoint Control
Warning Symbol
When the Setpoint control encounters a
problem, a Warning Symbol appears. To
troubleshoot how to correct the error, please
refer to the Data Brochure or contact a
qualified installer.
An electronic version of the Data Brochure
D 161 is available on the tekmar website:
www.tekmarcontrols.com.
Error Messages
