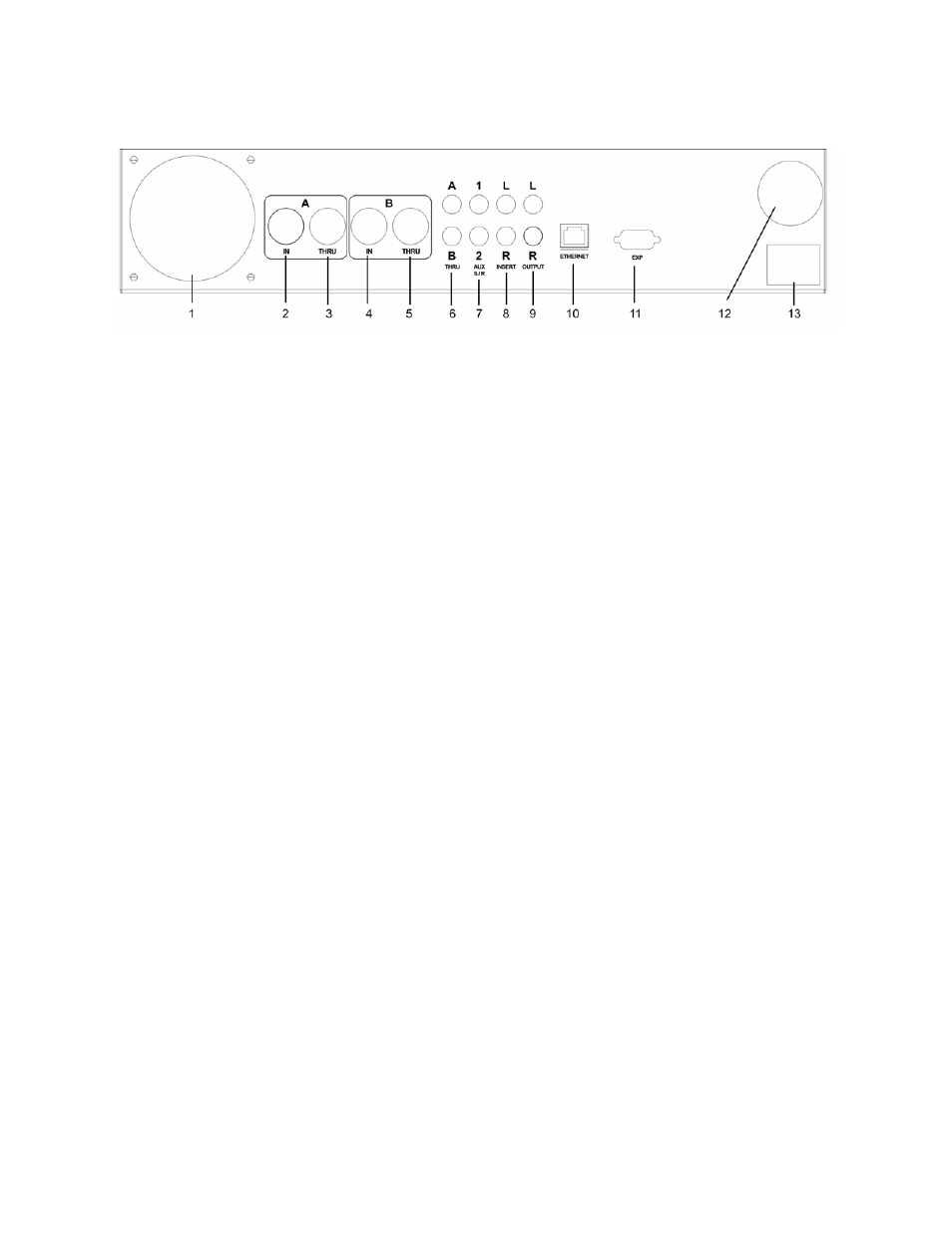

Details of the GPM-216 Back Panel
1.
80mm Fan for exhausting heat from the unit
2.
Input A - Female XLR mic/instrument input (can also be used as output)
3.
Thru A - Male XLR mic/instrument output (can also be used as input)
4.
Input B - Female XLR mic/instrument input (can also be used as output)
5.
Thru B - Male XLR mic/instrument output (can also be used as input)
6.
Thru A and B - Balanced TRS 1/4” loop-through outputs
7.
Aux Send/Return 1 and 2 - TRS per input channel, returns to the main mix
8.
Left and Right Main Insert - TRS send/return inserts for main mix
9.
Left and Right Main Output - Balanced TRS 1/4” main outputs to monitors
10.
CAT5 Ethernet Connector
11.
I/O Expansion Port for future functionality
12.
Power supply cooling fan
13.
Power connector
