Glyph GPM-216 - Manual (Page 32)

Glyph GPM-216
32

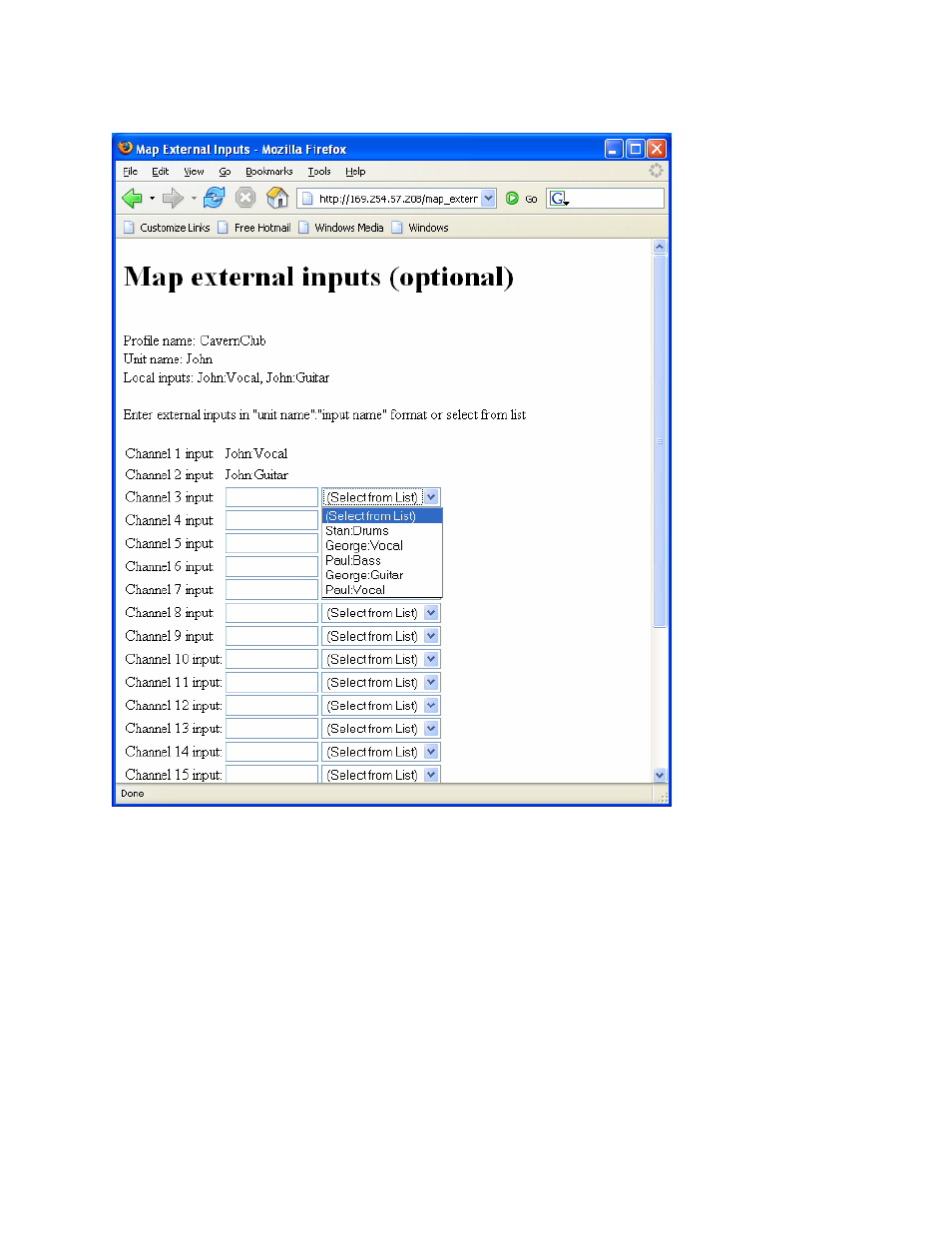

Figure 16: Map External Inputs.
If you do not map external inputs, the input will be assigned to a channel based on the channel selected
when the other GPM unit was configured. In the case of collision, the input will be assigned to an available
channel.
Note: An easy way to configure multiple GPM units is to connect them all to the network and choose unit
and input names for all GPM units. Skip the Map External Inputs step and save the configuration. You can
then edit each profile (Edit Profile). All external inputs will appear by name on the pick lists. If there are no
external inputs on the pick lists, the GPM unit has detected no inputs available on the network.
