Details of the GPM-216 Front Panel
Here is a guide to the front panel controls.

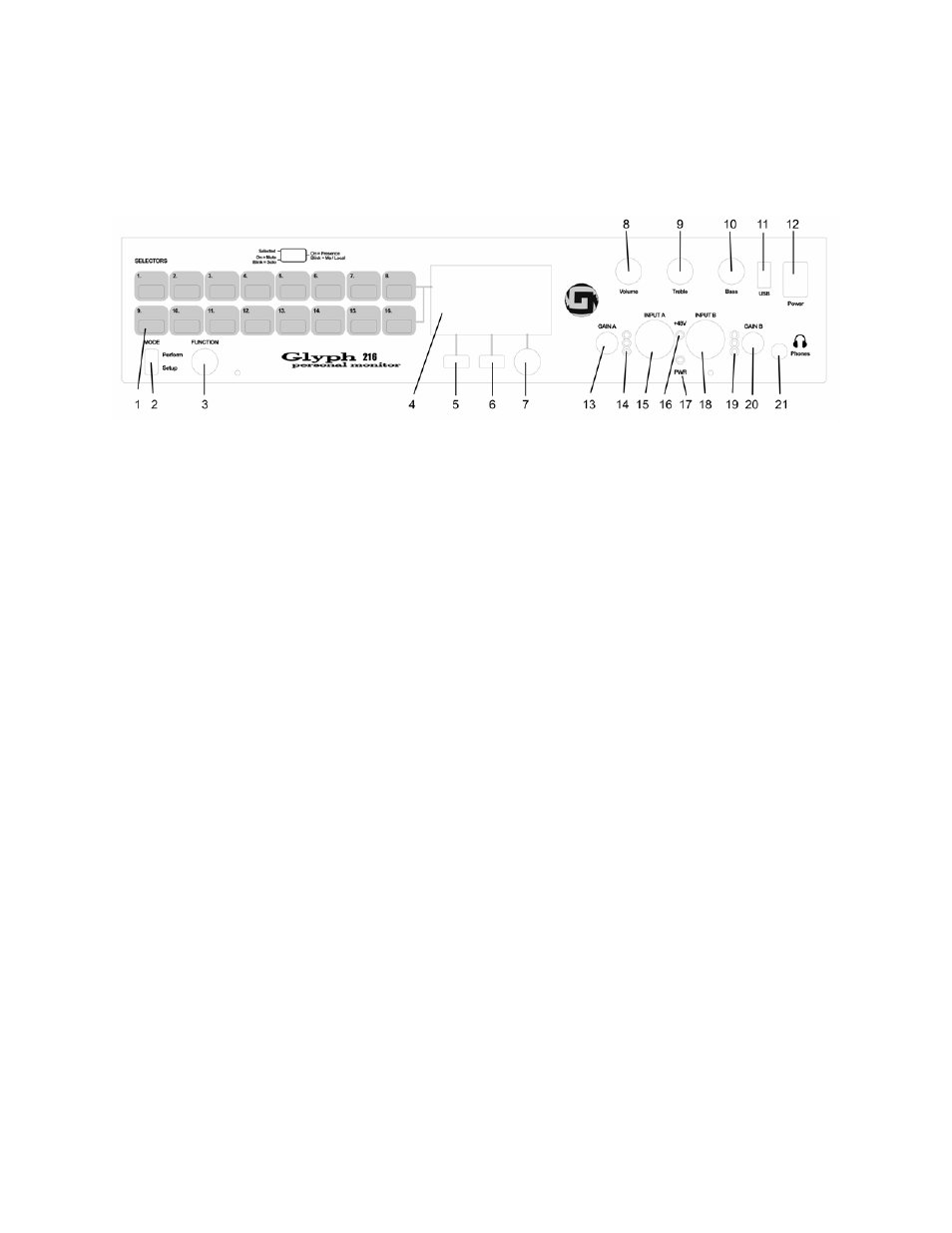

Figure 2: GPM-216 Front Panel
1.
16 Selector buttons - in Performance Mode, buttons select sources while the LCD screen displays
current information about those sources, such as the status of solo and mute. In Setup Mode, buttons
are used for data entry
2.
Mode Select button - switches between Performance and Setup Mode
3.
Function Select knob - selects functions under each Mode, such as Volume and Pan under
Performance Mode; and Diagnostics, Polarity and Phantom Power under Setup Mode
4.
LCD screen - 160 x 80 pixels (2.8" x 1.5") with a blue background and white lettering. Displays current
selections and control labels
5.
P1 button - a Soft Key that changes binary parameters, like mute and solo, on and off
6.
P2 button - a Soft Key that changes binary parameters, like mute and solo, on and off
7.
Data knob - changes continuous parameters, like source volume level and source pan position
8.
Volume knob - controls audio level sent to headphone jack and rear line outputs for personal mix
9.
Treble knob - controls treble sent to headphone jack and rear line outputs for personal mix
10.
Bass knob - controls bass sent to headphone jack and rear line outputs for personal mix
11.
USB Port - provided for future expansion
12.
Power switch
13.
Input A gain control knob - controls input A level at front combo input jack and rear XLR input jack
14.
Input A three-color LED meters - displays signal level of analog A input
15.
Input A - combo XLR and balanced TRS ¼" mic/instrument input
16.
+48V Phantom power LED indicator
17.
Input power LED indicator - displays that there is power to input section
18.
Input B - combo XLR and balanced TRS ¼" mic/instrument input
19.
Input B three-color LED meters - displays signal level of analog B input
20.
Input B gain control knob - controls input B level at front combo input jack and rear XLR input jack
21.
Stereo headphone jack - provides monitoring connection from front panel
