8 E-flite Divo 3D Profile Assembly Manual
Fuselage Assembly
Required Parts
Vertical fuselage Horizontal fuselage
Stabilizer/elevator Horizontal fuselage brace (L&R)
Plywood firewall Fuselage stiffener (R&L)
Triangular fuselage brace
Required Tools and Adhesives
Foam-safe CA Foam-safe CA activator
Low-tack masking tape Square

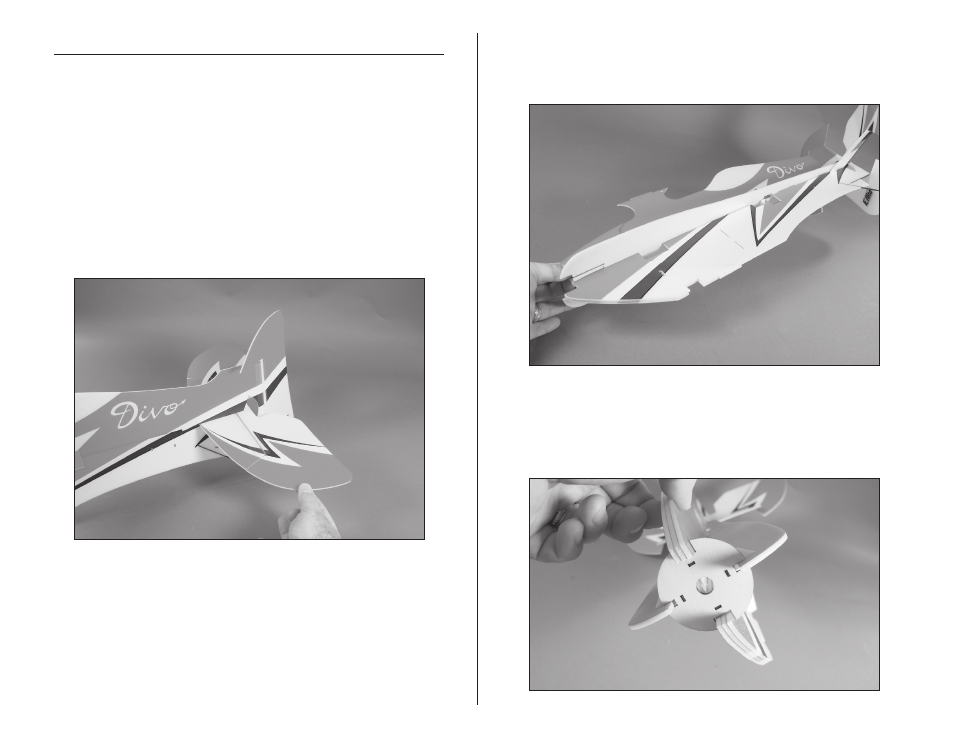

 1. Slide the stabilizer/elevator into the slot at the rear of
the fuselage.
 2. Slide the horizontal fuselage into the vertical fuselage.
The horizontal fuselage will rest on the top of the
stabilizer/elevator.
 3. Position the plywood firewall at the front of the
fuselage. DO NOT glue the firewall, it is only to aid in
the alignment of the horizontal and vertical fuselage
pieces at this time.
