16 E-flite Divo 3D Profile Assembly Manual
Motor Installation (E-flite)
Required Parts
Assembled airframe Plywood firewall
Motor w/hardware
Required Tools and Adhesives
Foam-safe CA Foam-safe CA activator
Felt-tipped pen Pin drill
Drill bit: 1/16-inch (1.5mm) #0 Phillips screwdriver

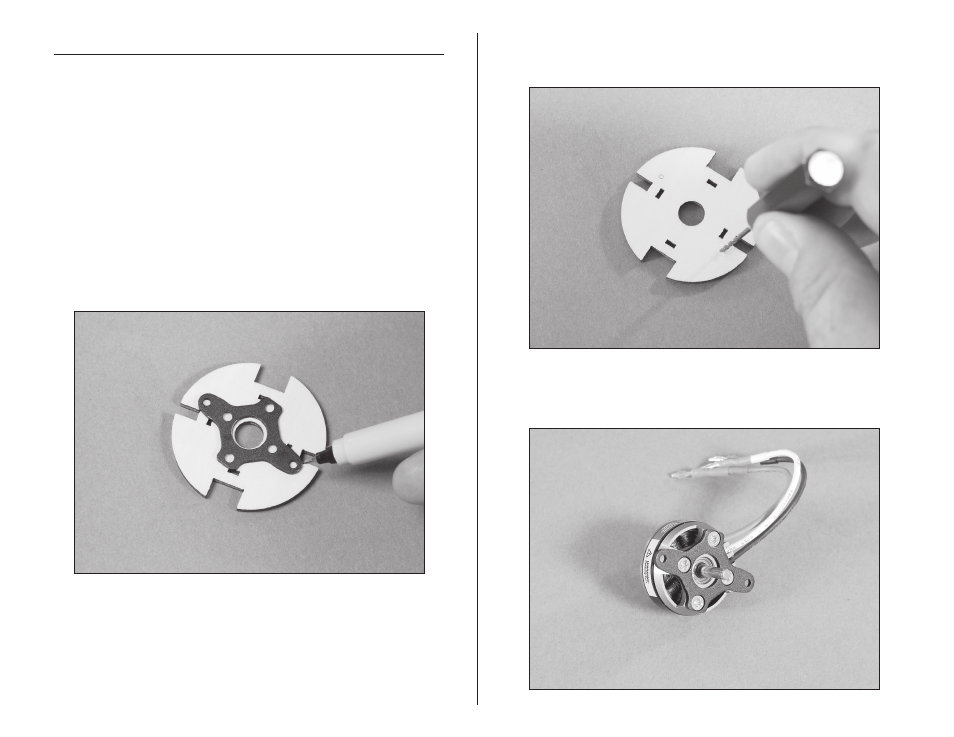

 1. Position the mount for your motor centered on the
firewall. The edges of the mount will be almost touching
the narrow notches in the firewall. Use a felt-tipped pen
to mark the locations for the mounting screws through the
motor mount.
 2. Drill two 1/16-inch (1.5mm) holes in the firewall at
the locations marked in the previous step.
 3. Attach the motor mount to the motor using the
hardware provided with the motor.
