21 E-flite Divo 3D Profile Assembly Manual
Servo Installation
Required Parts
Airframe assembly Micro control connector (4)
Servo (3)
Carbon pushrod, 4.8-inch (123mm) (2)
Carbon pushrod, 12.4-inch (314mm)
Carbon pushrod, 7.9-inch (200mm) (2)
Carbon pushrod, 12.2-inch (311mm)
2mm x 4mm screw (6)
Control horn (2) Control horn locking plate (2)
Micro control connector backplate (4)
Required Tools and Adhesives
Foam-safe CA Foam-safe CA activator
Low-temperature hot glue Hot glue gun

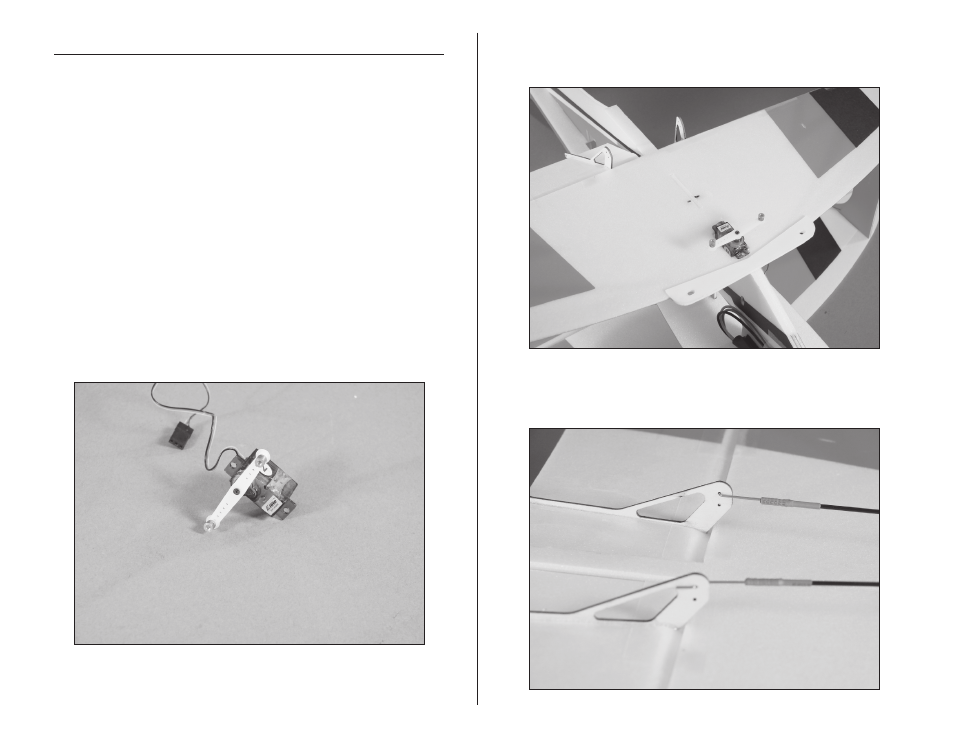

 1. Attach a long servo arm to the aileron servo after
centering the servo using the radio. Install a micro control
connector to each end of the servo arm as shown.
 2. Use hot glue to secure the aileron servo to the bottom
wing as shown.
 3. Attach the bend of each of the 4.8-inch (123mm)
carbon pushrods to the control horns on the bottom wing.
