3 E-flite Divo 3D Profile Assembly Manual
Using the Manual
This manual is divided into sections to help make assembly
easier to understand, and to provide breaks between each
major section. In addition, check boxes have been placed next
to each step to keep track of each step completed. Steps with
a single circle () are performed once, while steps with two
circles ( ) indicate that the step will require repeating, such
as for a right or left wing panel, two servos, etc.
Remember to take your time and follow the directions.

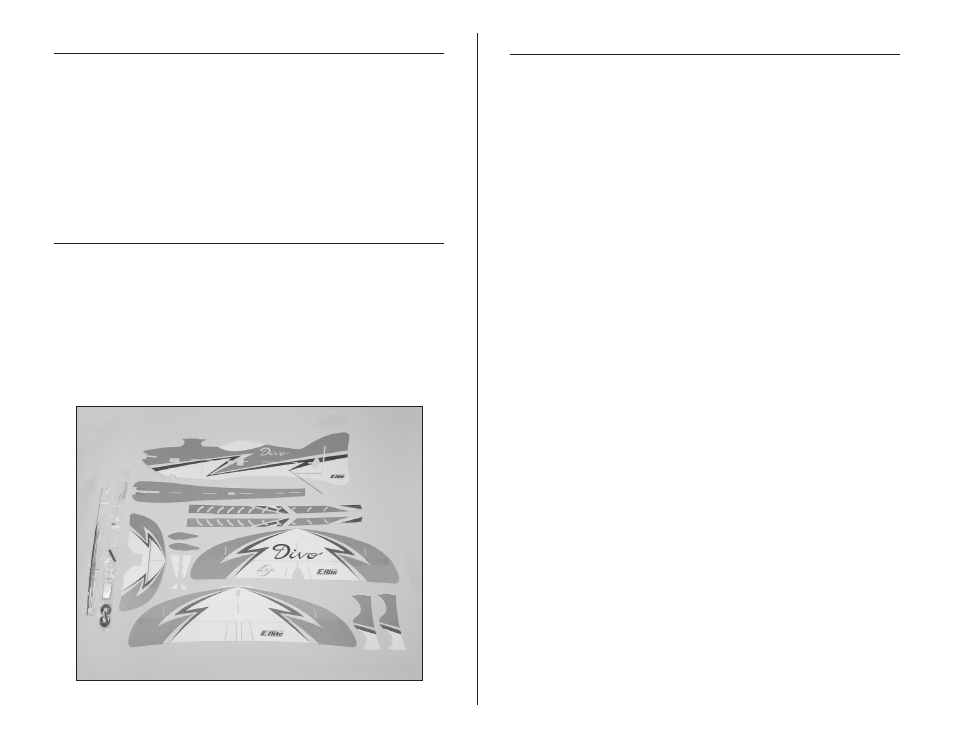

Contents of Kit/Parts Layout
Replacement Parts
EFL1126 Motor Mount Set
EFL1127 Carbon Pushrod Set
EFL1128 Carbon Wing Bracing
EFL1129R Red Wheel Pants
EFL1129B Blue Wheel Pants
EFL1130 Landing Gear
EFL1131 Micro Control Horns/Wood
Required Radio Equipment
You will need a minimum 6-channel transmitter (for proper
mixing and dual rate capabilities), crystals, micro receiver,
and three sub-micro servos. You can choose to purchase a
complete radio system that includes all of these items or, if
you are using an existing transmitter, just purchase the other
required equipment separately. We recommend the crystal-
free, interference-free Spektrum DX7 2.4GHz DSM2
®
7-channel
system. If using your own transmitter, we recommend the use of
a JR SPORT ™ 6-channel UltraLite receiver and E-flite ® S60 Super
Sub-Micro servos for 72MHz users or the Nanolite 6ch flight
pack for Spectrum users.
For Spectrum DX7 users
SPMAR6300F DSM2 6CH Nanolite Flight Pack
For 72MHz users
JSP30610 6-Channel UltraLite Rx w/o Crystal, Positive Shift JR/
AIR (72MHz)
JSP30615 6-Channel UltraLite Rx w/o Crystal, Negative Shift
Fut/HRC (72MHz)
JRPXFR** FM Receiver Crystal (JR only,
not AR6000)
EFLRS60 6.0-Gram Super Sub-Micro Servo (3)
If you are using a Spectrum DX6
SPM6000 AR6000 DSM 6-Channel Park Flyer Receiver
EFLRS60 6.0-Gram Super Sub-Micro Servo (3)
