25 E-flite Divo 3D Profile Assembly Manual

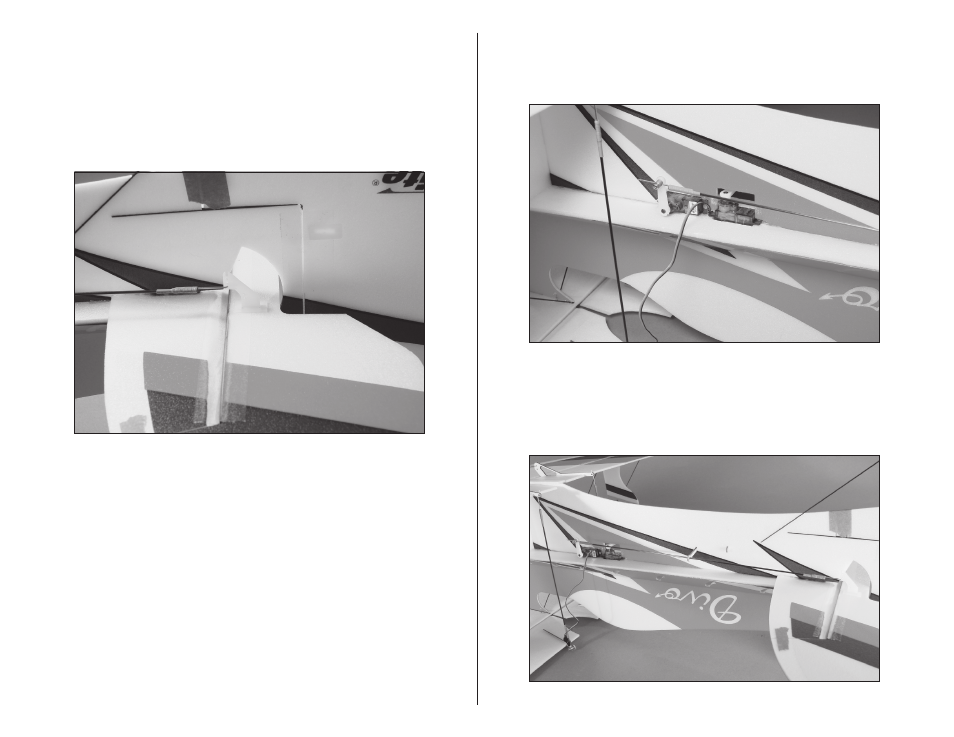

 13. Slide the control horn through the elevator, then slide
the control horn locking plate onto the horn, pressing
it tight against the elevator to secure the control horn.
Apply a few drops of foam-safe CA to the junction
between the horn and locking plate to secure its position.
Attach the bend of the 12.2-inch (311mm) pushrod to the
elevator control horn.
 14. With elevator centered, secure the pushrod to the
connector at the elevator servo using a 2mm x 4mm
machine screw.
 15. Use foam-safe CA to glue the pushrod brace to the
fuselage in the hole farthest from the elevator. Make sure
to position the brace so the pushrod will not bind on the
brace during flight.
