Rope Pull Emergency Stop Switches –
RP-LS42F-75L.. Series
10
P/N 67709 rev. A
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

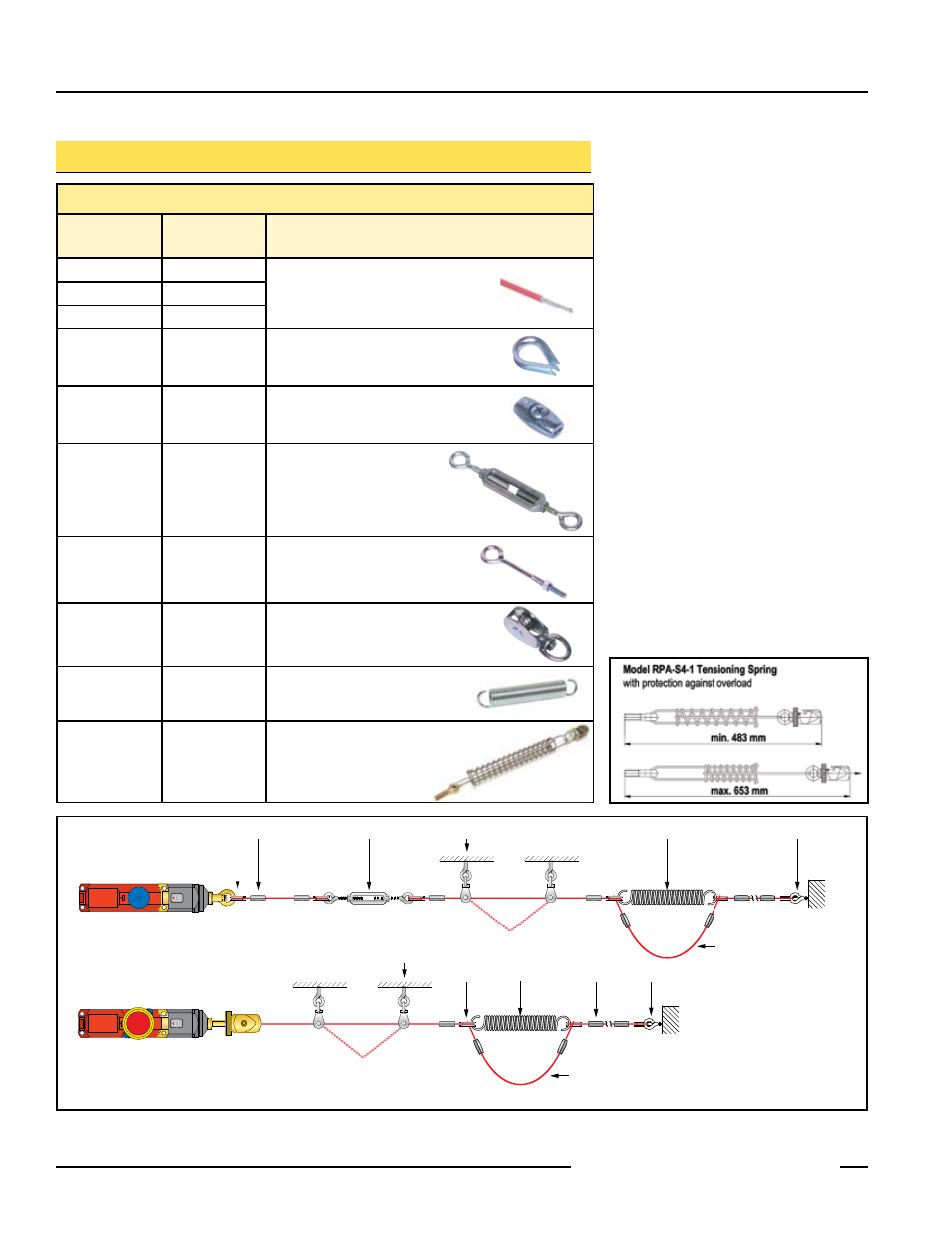

Accessories
Components for Wire Rope Assembly
Model
Package
Quantity
Description
RPA-C2-10 10 m (33')
3 mm steel wire rope with
0.25 mm red PVC jacket
(unterminated)
RPA-C2-20 20 m (66')
RPA-C2-80 80 m (264')
RPA-T2-4 4 pcs Thimble for 3 mm wire rope
RPA-CC2-4 4 pcs Clamp for 3 mm wire rope
RPA-TA1-1 1 pc #4 Turnbuckle
RPA-EB1-1 1 pc
1/4"-20 Eye bolt
(3" bolt shaft)
RPA-P1-1 1 pc Pulley
RPA-S3-1 1 pc Tensioning spring
RPA-S4-1 1 pc
Tensioning spring with
built-in eye bolt, cable thimble,
clamping, tensioning, and
overload protection
Figure 7. Wire rope assembly components
Spring breakage
protector cable
Spring breakage
protector cable
Thimble
Thimble
Clamp
Clamp
Turnbuckle Spring
Spring
Eye Bolt
Eye Bolt
Pulley
Pulley
NOTE: If model RPA-S4-1 tensioning spring is used, eliminate eye bolt, spring,
protector cable, clamp and thimble from versions shown here.
