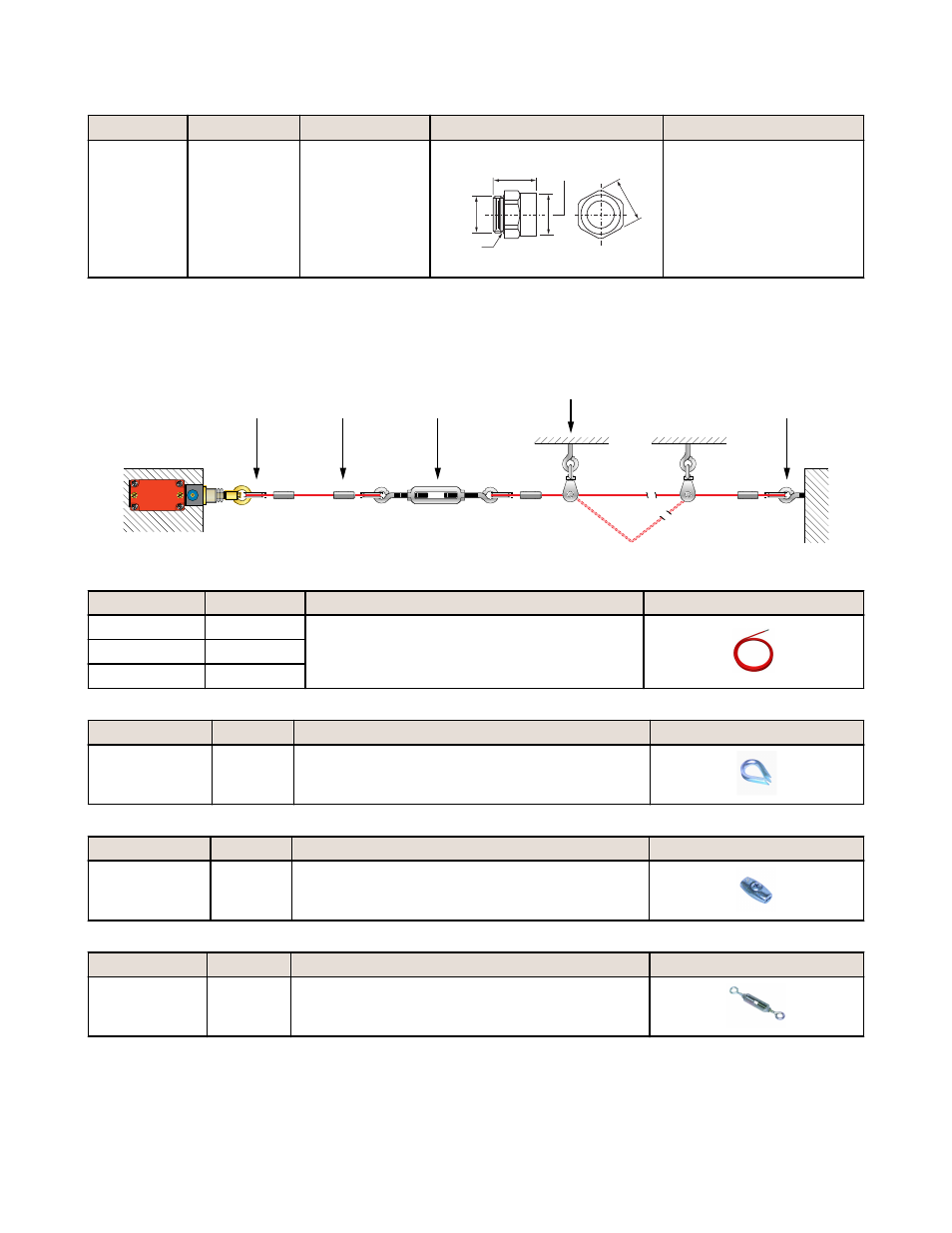

Conduit Adapters
Model Size Thread Conversion Dimensions Used With
SI-QM-M20
½ in-14 NPT
Metal M20 × 1.5 to ½
in-14 NPT
23.0 mm
(0.91")
M20 x 1.5
24.0 mm
(0.94")
1/2"-14 NPT
Internal Thread
O-ring
SI-LM40 Safety Interlock
Switches
SI-QM100 Safety Interlock
Switches
RP-RM83 Rope Pull Switches
RP-LM40 Rope Pull Switches
RP-QM72/QMT72 Rope Pull
Switches
RP-QM90 Rope Pull Switches
One conduit adapter is supplied with each switch.
Assembly Components
Thimble Clamp
Pulley
Turnbuckle Eye Bolt
Figure 8. Components for Wire Rope Assembly Components
Model Length Description Wire Rope
RPA-C1-10 10 m (33 ft)
2 mm steel wire rope with 0.5 mm red PVC jacket
(unterminated)
RPA-C1-20 20 m (66 ft)
RPA-C1-100 100 m (330 ft)
Model Quantity Description Thimble
RPA-T1-4 4 Thimble for 2 mm wire rope
Model Quantity Clamp
RPA-CC1-4 4 Clamp for 2 mm wire rope
Model Quantity Description Turnbuckle
RPA-TA1-1 1 #4 Turnbuckle
RP-LM40 Series Rope Pull Switches
