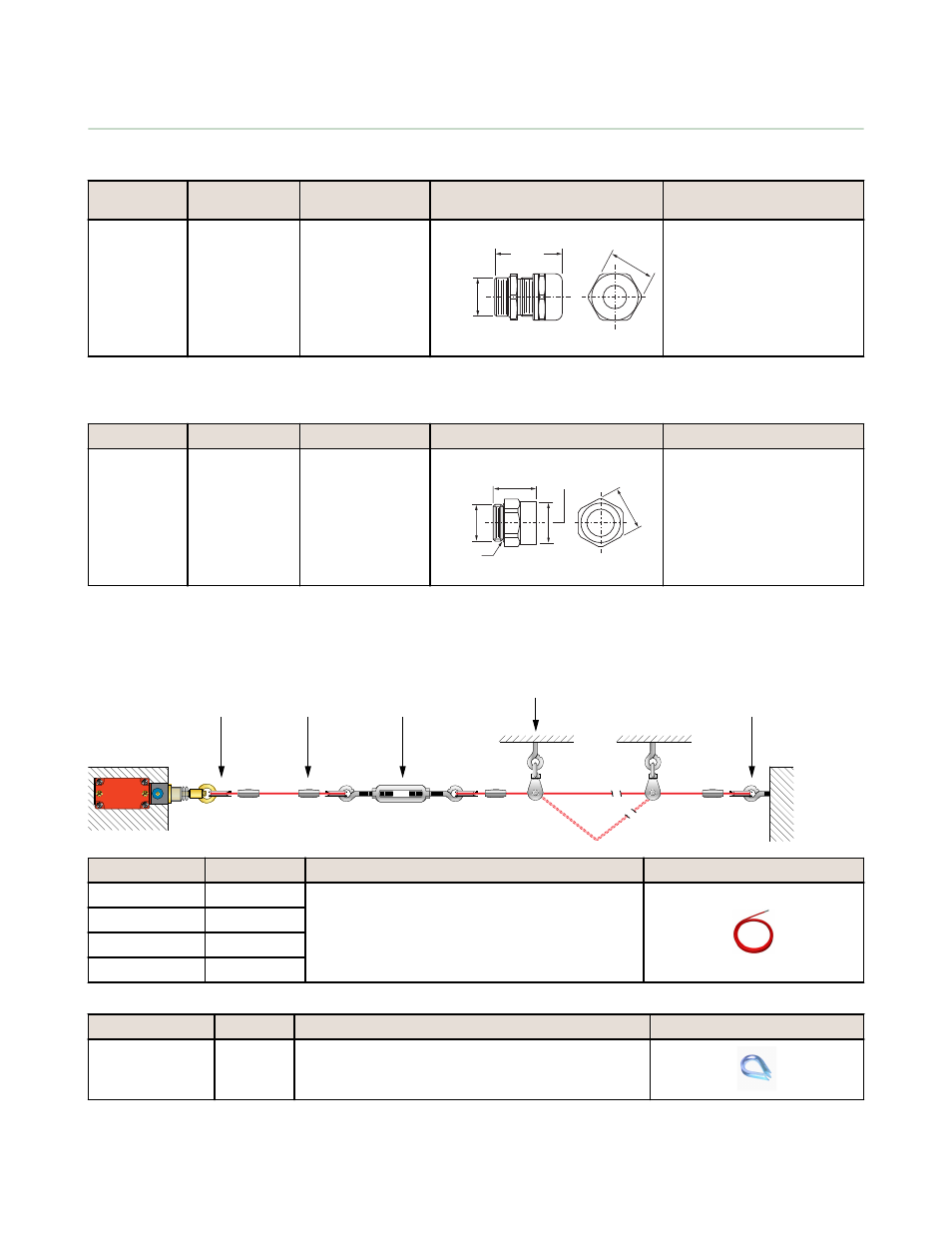

Accessories
Cable Glands
Model
Size
For Cable
Diameter
Dimensions
Used With
SI-QM-CGM20
M20 × 1.5 Metal
5.0 to 12.0 mm
(0.20 to 0.47
inches)
M20 x 1.5
24.0 mm
(0.94")
35.5 mm
(1.40")
SI-LM40 Safety Interlock
Switches
SI-QM100 Safety Interlock
Switches
RP-RM83 Rope Pull Switches
RP-LM40 Rope Pull Switches
RP-QM72/QMT72 Rope Pull
Switches
RP-QM90 Rope Pull Switches
Conduit Adapters
Model
Size
Thread Conversion Dimensions
Used With
SI-QM-M20
½ in-14 NPT
Metal
M20 × 1.5 to ½
in-14 NPT
23.0 mm
(0.91")
M20 x 1.5
24.0 mm
(0.94")
1/2"-14 NPT
Internal Thread
O-ring
SI-LM40 Safety Interlock
Switches
SI-QM100 Safety Interlock
Switches
RP-RM83 Rope Pull Switches
RP-LM40 Rope Pull Switches
RP-QM72/QMT72 Rope Pull
Switches
RP-QM90 Rope Pull Switches
One conduit adapter is supplied with each switch.
Components for the Wire Rope Assembly
Thimble
Clamp
Pulley
Turnbuckle
Eye Bolt
Model
Length
Description
Wire Rope
RPA-C2-10
10 m (33 ft)
3 mm steel wire rope with 0.5 mm red PVC jacket
(unterminated)
RPA-C2-20
20 m (66 ft)
RPA-C2-50
50 m (264 ft)
RPA-C2-80
80 m (264 ft)
Model
Quantity
Description
Thimble
RPA-T2-4
4
Thimble for 3 mm wire rope
Rope Pull Switches
