It is not possible to give exact wiring instructions for a Safety Module that interfaces to a multitude of machine control configurations. The
following guidelines are general in nature.
The Safety Module has no delay function. Its output relay contacts open within 20 milliseconds after a safety input opens. This classifies
the Safety Module as functional stop "Category 0" control, as defined by ANSI NFPA 79 and IEC/EN 60204-1.
The inputs can be connected to (that meet the requirements for primary safety device above):

• A +24V dc solid-state (PNP) outputs in single-channel or dual-channel hookup configuration, or
• A +24V/0V dc source that is switched by hard/relay contacts in single-channel or dual-channel hookup configuration.

The dual-channel hookup configuration allows the primary safety device to detect certain failures and faults, such as short circuits, that
could result in a loss of the safety function. Two-channel control should be used whenever unsafe failure of the control wires cannot be
eliminated. The first circuit shown below can meet ISO 13849-1 Category 2, 3, or 4 requirements, depending on the safety rating and the
installation of the primary safety device.
The outputs of the primary safety device must, at minimum, comply with the requirements described. These outputs must be monitored
for failure by the primary safety device. In addition, a single output failure cannot prevent normal stopping action, and a successive cycle
cannot be initiated until the failure has been corrected.

Safety Output

Safety Output

EDM2

EDM1

+24V dc

0V dc

Y2

Y1

Y3

13

14

23

24

33

34

Machine

Control

Feedback (optional)

IM-T-9A

Primary

Safety

Device

Y4

S3

K2

S4

MPCE

1

MPCE

2

MPCE2

MPCE1

S2

K1

K2

K1

S1

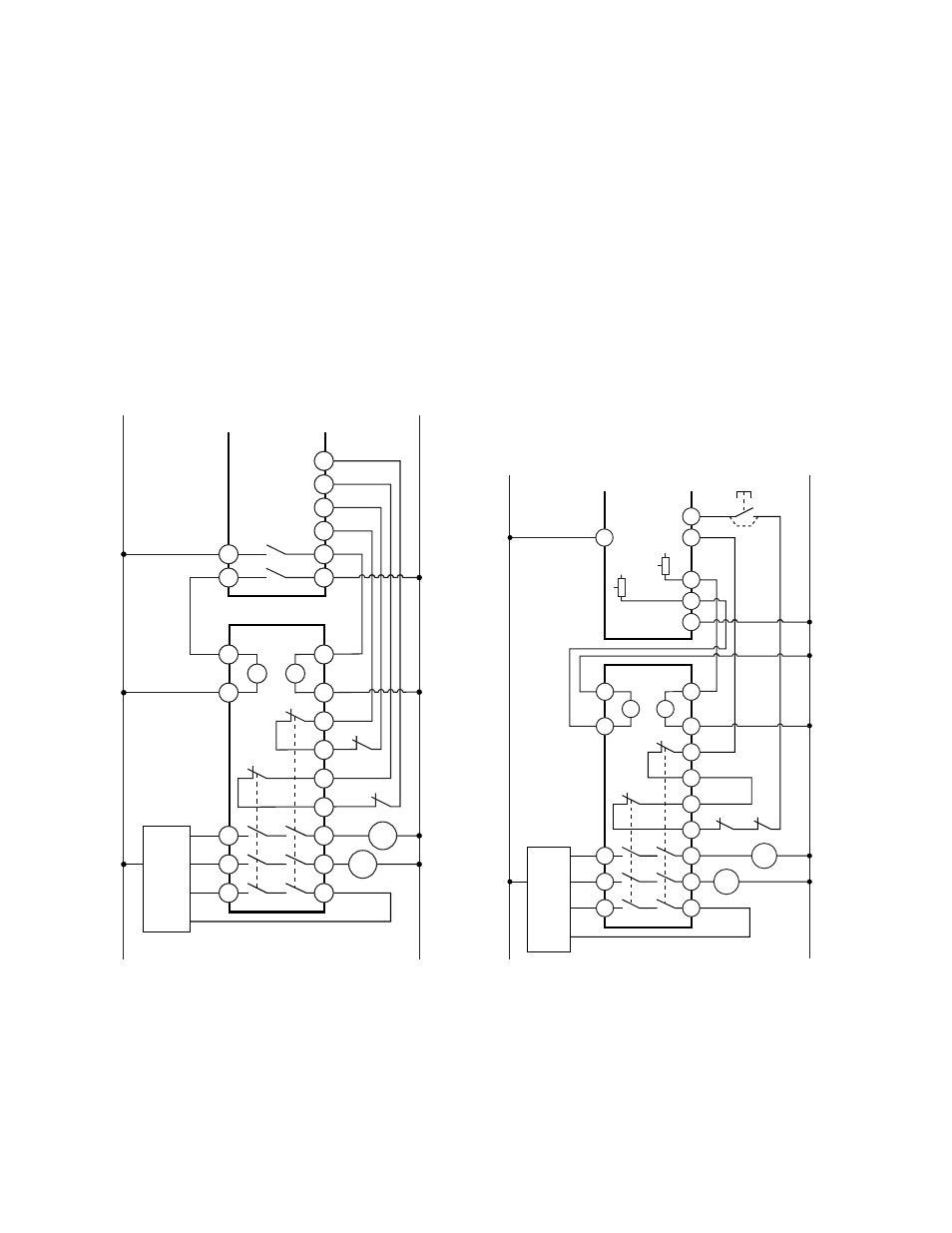

Figure 3. Generalized hookup to a 2-channel primary safety

device with two hard-contact safety outputs (FSD1 and FSD2)

and two monitoring inputs.

EDM

+24V dc

0V dc

14

23

24

Feedback (optional)

IM-T-9A

Primary

Safety

Device

MPCE

1

MPCE

2

MPCE2

MPCE1

Y2

Y1

Y3

Y4

Safety

Output

Safety

Output

S3

K2

S4

S1

K1

S2

+

+

13

Machine

Control

Reset

33

34

K2

K1

Figure 4. Generalized hookup to a 2-channel primary safety

device with two hard-contact safety outputs and one monitor-

ing contact feedback input.

Although this hookup shows model IM-T-9A, the hookup for model
IM-T-11A is identical.
