ANSI B11.19 Performance Criteria for Safeguarding
Contact: Safety Director, AMT – The Association for Manufacturing Technology, 7901 Westpark Drive, McLean, VA 22102, Tel.:
703-893-2900
ANSI NFPA 79 Electrical Standard for Industrial Machinery
Contact: National Fire Protection Association, 1 Batterymarch Park, P.O. Box 9101, Quincy, MA 02269-9101, Tel.: 800-344-3555
ANSI/RIA R15.06 Safety Requirements for Industrial Robots and Robot Systems
Contact: Robotic Industries Association, 900 Victors Way, P.O. Box 3724, Ann Arbor, MI 48106, Tel.: 734-994-6088
Applicable International Standards
ISO 12100-1 & -2 (EN 292-1 & -2) Safety of Machinery – Basic Concepts, General Principles for Design
IEC 60204-1 Electrical Equipment of Machines Part 1: General Requirements
IEC 61508 Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems
IEC 62061 Functional Safety of Safety-Related Electrical, Electronic and Programmable Control Systems
ISO 13849-1 (EN 954-1) Safety-Related Parts of Control Systems
ISO 13850 (EN 418) Emergency Stop Devices, Functional Aspects – Principles for Design
Contact: Global Engineering Documents, 15 Inverness Way East, Englewood, CO 80112-5704, Tel.: 800-854- 7179
Overview
An Emergency Stop Safety Module is used to increase the control re-
liability of an emergency stop circuit. As shown in the hookup draw-
ings, the models ES-UA-5A and ES-VA-5A E-Stop Safety Modules
(the Safety Modules) are designed to monitor a 1-channel or 2-chan-
nel E-stop switch. A 2-channel E-stop switch has two electrically iso-
lated contacts.
S34 S32 S35
S11 S12 S21 S22
S31 S32 S33
A1 A2 B1 B2
Y30 Y31 Y32
13 14 23 24
Y35 51 52
33 34 43 44

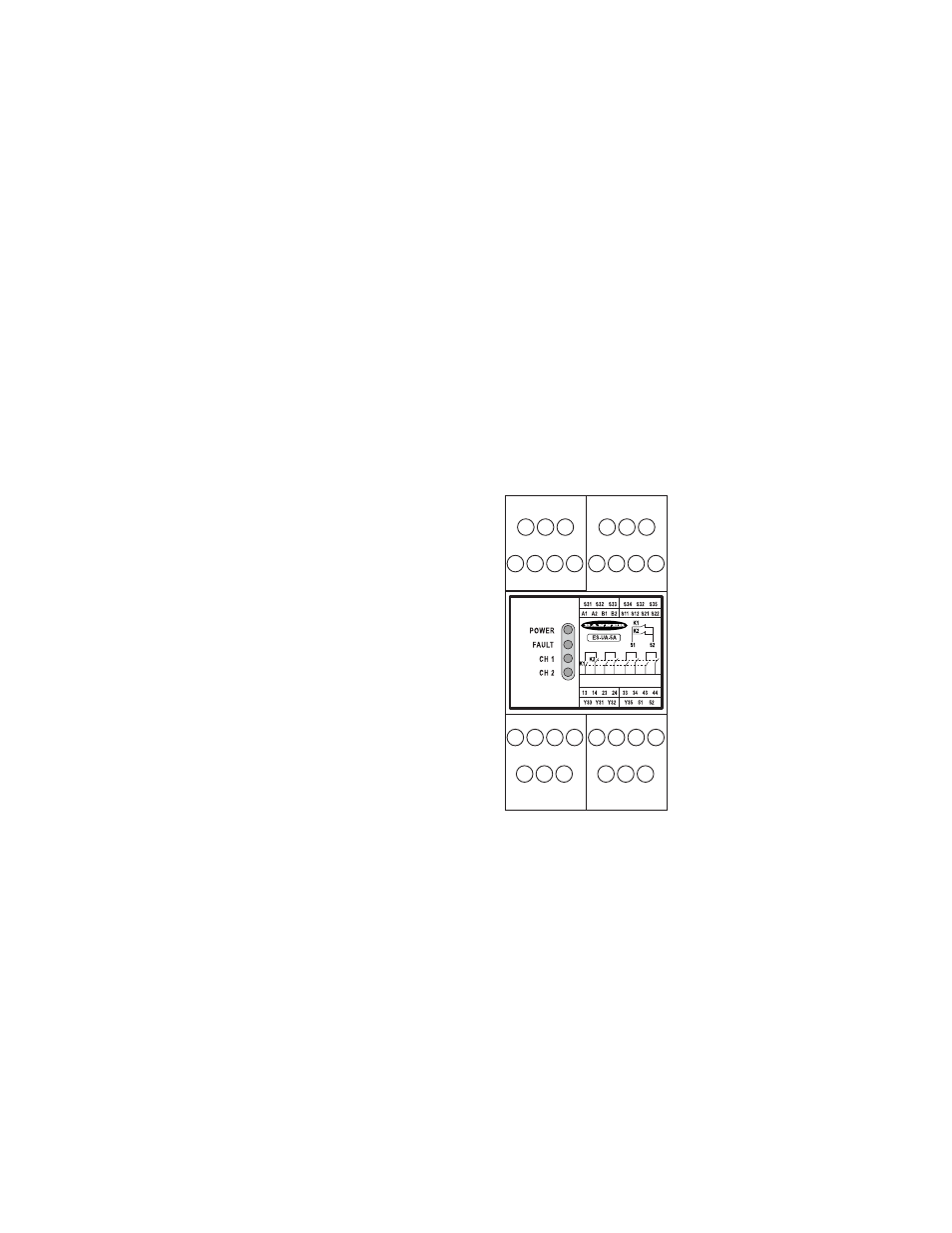

Figure 1. Features and Terminals
Safety Circuit Integrity and ISO 13849-1 (EN954-1) Safety Circuit Principles
Safety circuits involve the safety-related functions of a machine that minimize the level of risk of harm. These safety-related functions can
prevent initiation, or stop or remove a hazard. A failure of a safety-related function or its associated safety circuit may result in an in-
creased risk of harm.
The integrity of a safety circuit depends on several factors, including fault tolerance, risk reduction, reliable and well-tried components,
well-tried safety principles, and other design considerations.
Depending on the level of risk associated with the machine or its operation, an appropriate level of safety circuit performance must be
incorporated. ANSI/RIA R15.06 Industrial Robots, ANSI B11 Machine Tools, OSHA 29CFR1910.217 Mechanical Power Presses, and
ISO 13849-1 (EN954-1) Safety-Related Parts of a Control System standards provide details of the safety performance levels.
Safety Circuit Integrity Levels
The safety circuits in International and European standards have been segmented into categories, depending on their ability to maintain
their integrity in the event of a failure. The most recognized standard that details safety circuit integrity levels is ISO 13849-1 (EN954-1),
which establishes five levels: Categories B, 1, 2, 3, and 4 (most strict).
ES-UA-5A and ES-VA-5A E-Stop Safety Modules
