84 mm
(3.3")
45 mm
(1.8")
118.0 mm
(4.6")

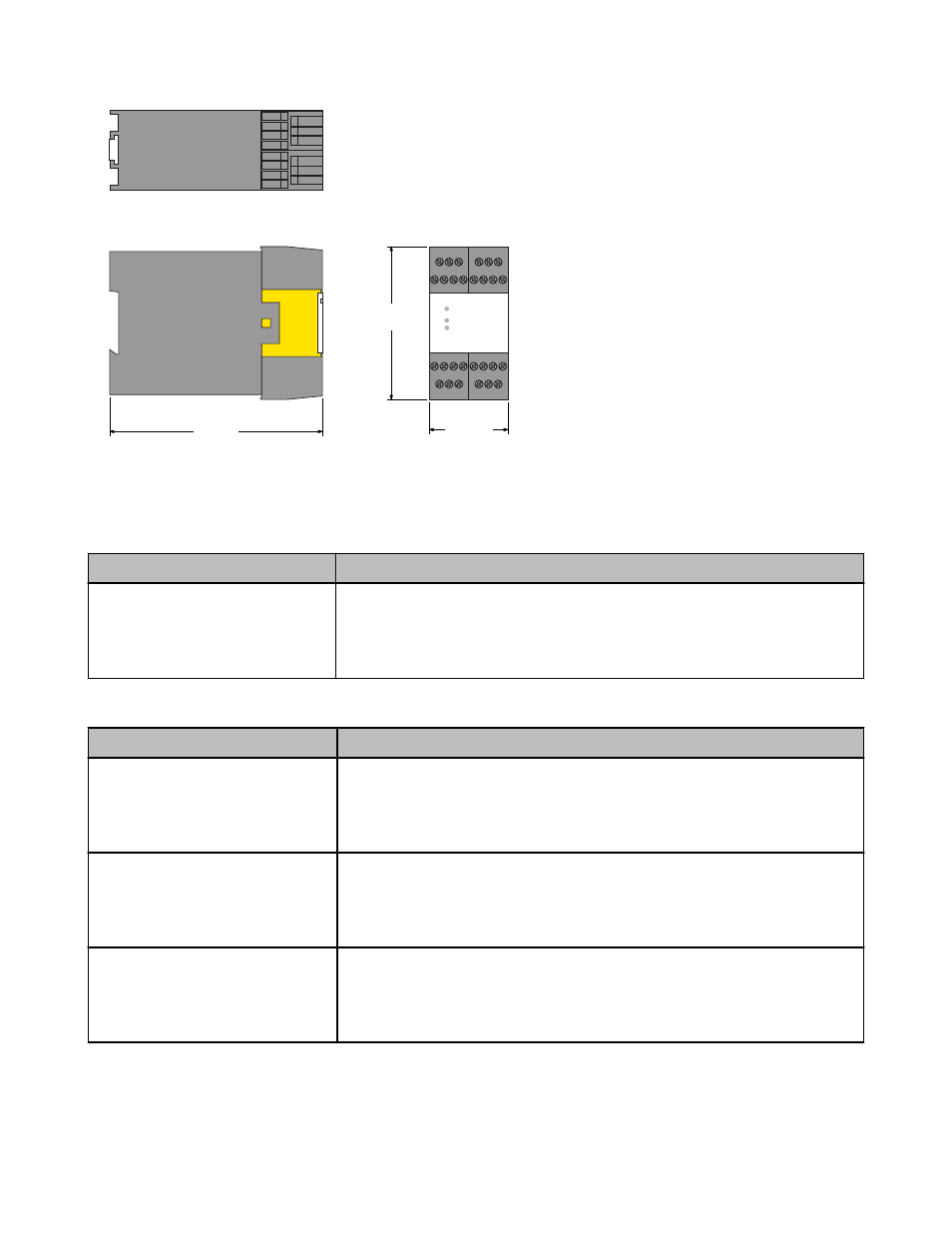

Figure 6. Dimensions in Millimeters (Inches)
Troubleshooting
Module will not reset
Indicator Status Possible Causes and Solutions
Power LED ON
Fault LED OFF
Ch1 LED Flashing
Ch2 LED Flashing Waiting for manual reset:
• EDM monitoring contacts are not closed. Check MSCs.
• Check jumper at S32-S35 (auto reset) or S32-S33 (manual reset).
• Check reset button connection.
No Fault Indicated
Indicator Status Possible Causes and Solutions
Power LED ON
Fault LED OFF
Ch1 LED OFF
Ch2 LED OFF E-stop button open:
• Connector loose.
• Re-arm E-stop button.
Power LED ON
Fault LED OFF
Ch1 LED OFF
Ch2 LED ON Ch.1 open; Ch. 2 closed:
• Check wiring to S11-S12.
• Check switch.
• Check connectors are properly seated.
Power LED ON
Fault LED OFF
Ch1 LED ON
Ch2 LED OFF Ch.1 closed; Ch. 2 open:
• Check wiring to S21-S22.
• Check switch.
• Check connectors are properly seated.
ES-UA-5A and ES-VA-5A E-Stop Safety Modules
