861 Advanced Compact IC, cut off to the required length and
push at least 5 mm of it onto aspirating capillary 38 (see
Figure 3 and Figure 4 and Figure 5) of the high-pressure
pump (it may be necessary to use emery paper).
•
If necessary, fix aspirating tubing 63 in the required position
in the interior with the aid of the Y.107.0150 self-adhesive
strap.

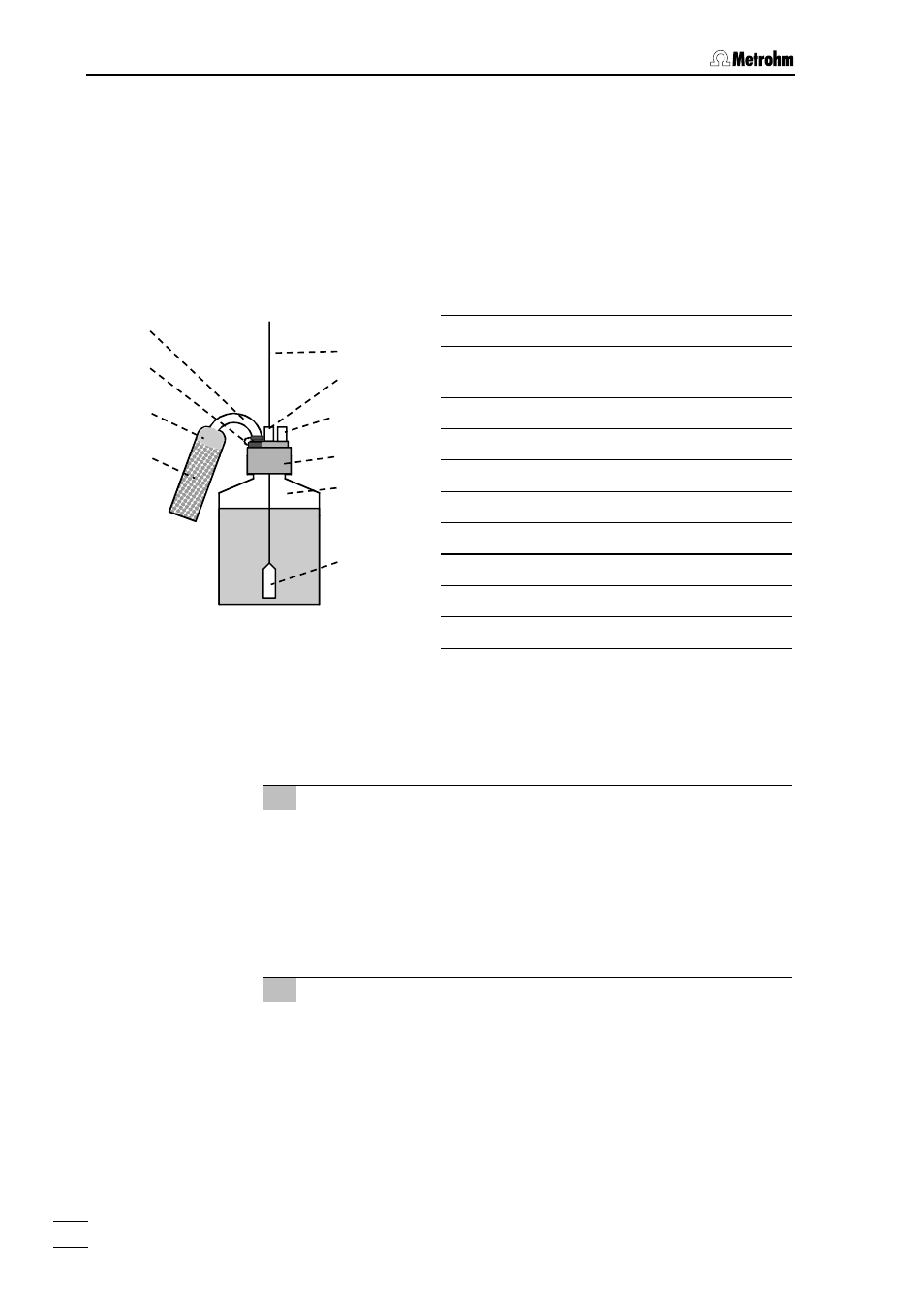

Figure 13: Connection of elu-
ent bottle
2.6.4
Deaerating the pump and rinsing the pulsation dampener
The first time that it is started up the high-pressure pump must be de-
aerated. Proceed as follows:
1 Prepare for deaeration
•
Open the rotary knob on purge valve 37 by approx. ½ turn in
the counterclockwise direction (see Figure 3 and Figure 4 and
Figure 5).
•
Remove the plastic stopper from connection 2 on the front
panel of 861 Advanced Compact IC (see Figure 1).
•
Push 6.2816.020 Syringe (without needle) into connection 2
until the stop is reached.
2 Open and connect system
•
Start the «IC Net» PC program, if it has not been already
been started (see Section 2.5.3).
•
Select
File / Open / System
in the main window. Select the sys-
tem created in Section 2.5.4, and click on
.
63 Aspirating tubing (6.1834.010)
64 Tubing nipple (4.420.4300; M8)
with E.301.0021 O-ring
65 Threaded stopper (6.1446.040; M6)
66 Bottle attachment (6.1602.105)
67 Eluent bottle (6.1608.070)
68 Aspirating filter (6.2821.090)
69 CO
2
absorber
70 Cotton wool
71 SGJ clip (6.2023.020)
72 Absorber tube (6.1609.000)
68
72
71
70
69
63
64
65
66
67
