3.2 Configuration
22
813 Compact Autosampler
For setting the work position place a filled sample tube on the
sample rack of the Autosampler on rack position 1.
The needle should remain dipped in the sample solution during
the aspiration interval or reach the bottom of the sample vial, de-
pending on the application.
Press to accept a setting. To cancel a setting press
. Press twice to abort the configuration pro-
cedure.

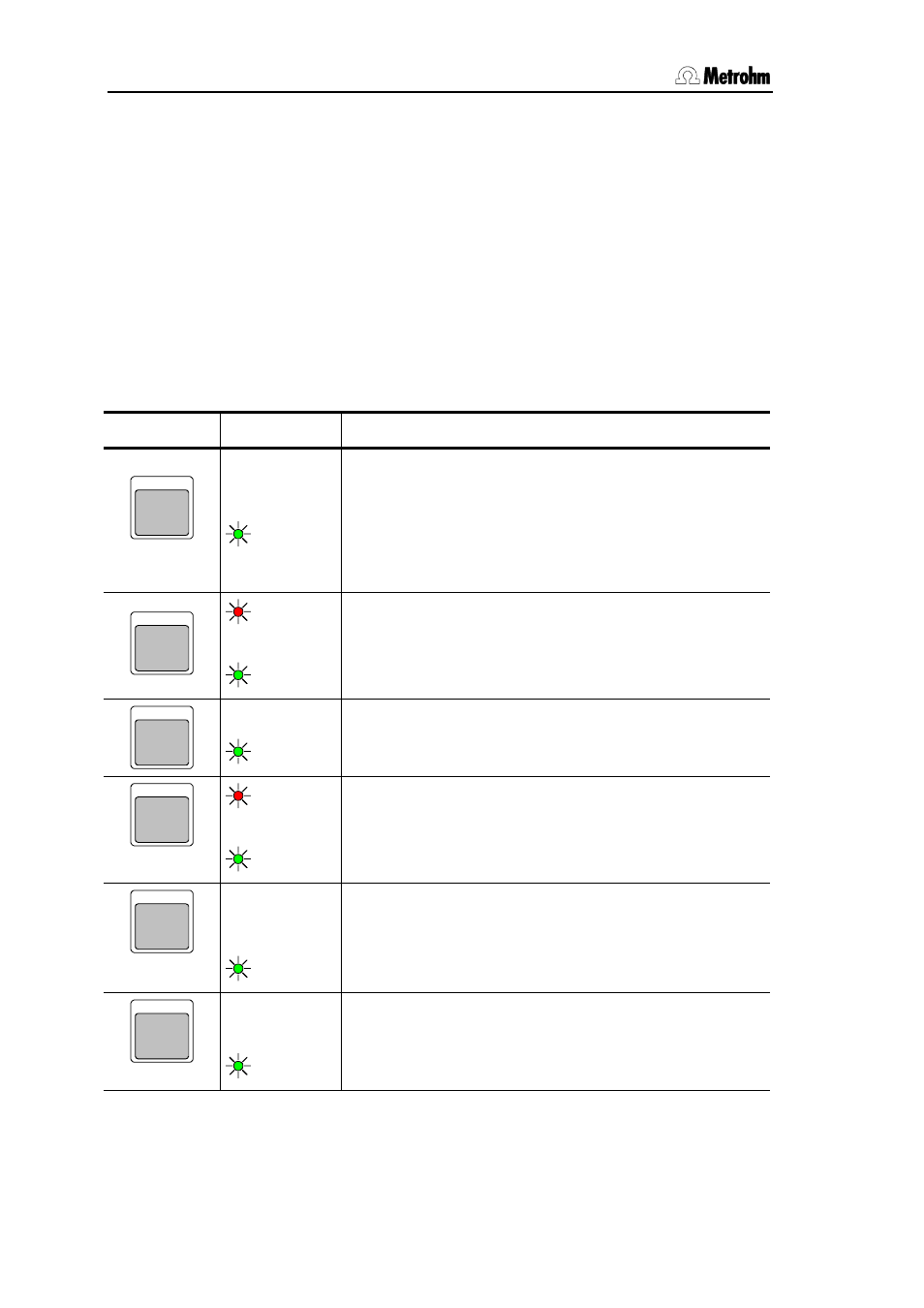

The configuration procedure
Key LEDs Explanation
HOLD
+
"Power ON"
green 1*
In order to start the configuration procedure the
key must be pressed while the Autosampler is
switched on.
The green LED lights up once to show that the configu-
ration procedure is active. The method can now be
selected.
HOLD
red 1-4*
green 1*
When the key is pressed the red LED blinks
once for the first method. Each time is
pressed again the next method is selected up to method
4, then method 1 again..
START
green 2*
accepts the setting. The green LED blinks
twice. The working position of the lift can now be
set.
HOLD
red blinks
green 2*
When the key is pressed the lift can be
moved manually. Each further time the key is
pressed the direction in which the lift moves is altered. In
this way the working position can be set accurately.
START
blinks
accepts the setting. The working position is
stored. The configuration procedure is now complete. It
can be restarted by pressing in order to select
the method.
STOP
RESET
lights up
The configuration procedure is terminated with
. When the green LED is illuminated the 813
Compact Autosampler is in the basic state and is ready
to process a series of samples.
See next page for a figure of the whole configuration process.
