2 Installation
813 Compact Autosampler
11
2.3.4 Installing the splash protection
To avoid any danger of injury by the needle, the 6.2751.070 splash
protection must always be installed when operating the 813 Compact
Autosampler!
1 Remove holding screws
Remove the holding screws 16 and the washer mounted on the
screw threads 9 at tower 18 using the 6.2621.100 Allen key.
2 Remove protective film from splash protection
Remove the plastic film glued on both sides of the splash
protection 1 .
3 Install splash protection
Attach splash protection 1 onto the screw threads 9 and 16 at
the tower 18 and fix it with the holding screws 9 and the washer
using the 6.2621.100 Allen key.
9
16
1

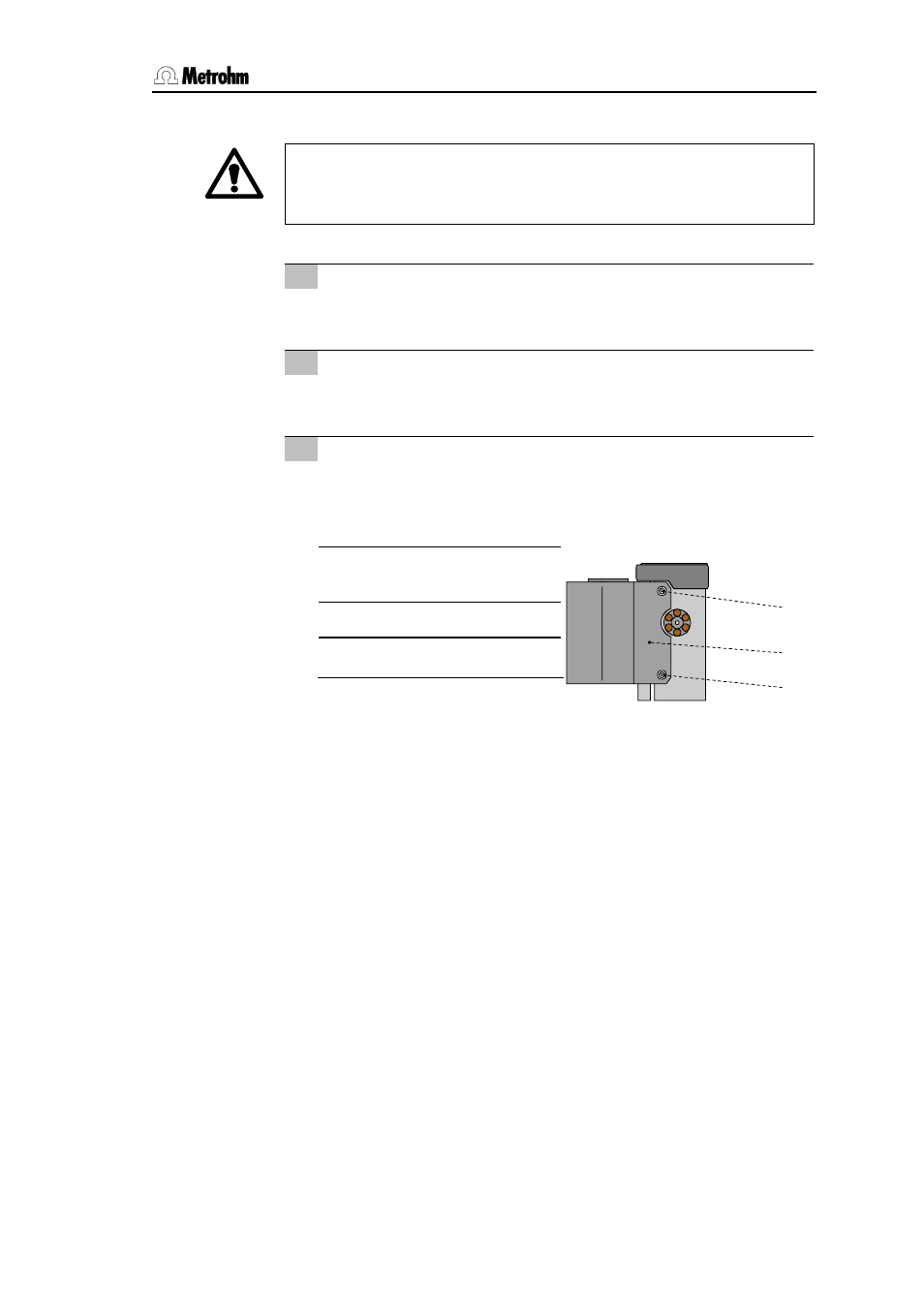

Fig. 7 Installing the splash protection
1 Splash protection
6.2751.040
9 Holding screw
16 Holding screw
