 LED will blink GREEN quickly if Forward Direction recording is successful.
 LED will blink PURPLE quickly if Home Point recording is successful.
 LED will blink CYAN quickly if POI recording is successful.
 After Home Point is recorded successfully, LED will blink continually under
below conditions. None of these conditions is omitted.
1. GPS signal is well, the satellites number MC searched is more than 6.
2. Distance between aircraft and the recorded home point is less than 8m.
3. Current control mode is not Manual mode.
 DO NOT toggle the switch between Positon-1 to Positon-3, since it may change the recording
of the Positon-2.
Step
4
IOC Flying Test
Then you can do Course Lock, Home Lock, and POI flying test

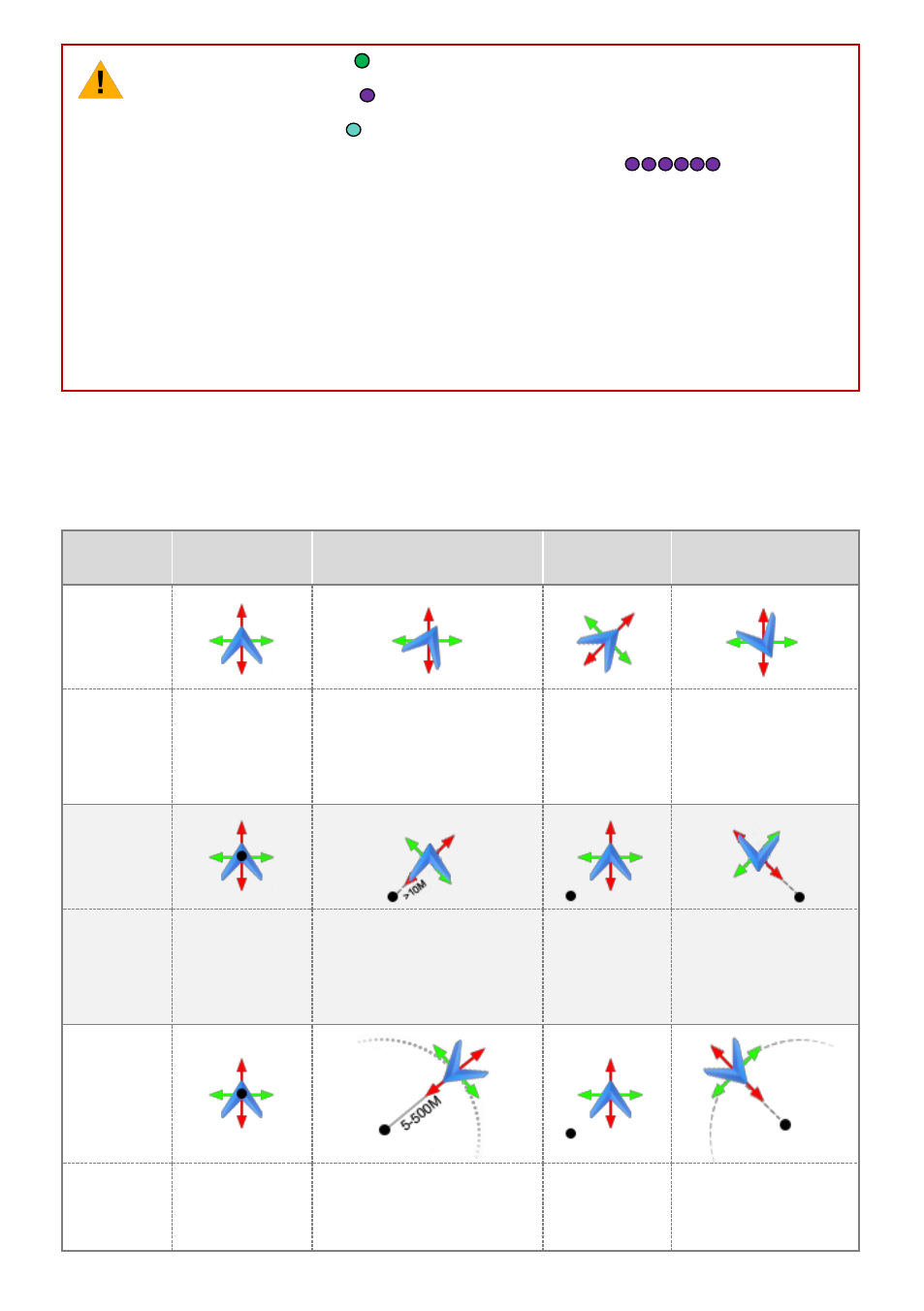

Carry out an IOC flight by the following procedure. The Control Mode LED will blink GREEN to indicate the IOC
mode only when the main controller is really to fly in Course Lock, Home Lock modes or POI.
During the
same flight
STEP1: Record STEP2: ON STEP3: OFF STEP4: ON again
Course
Lock
Switch
Setting
Record the
forward
direction
Set Control Mode switch at
GPS or ATTI. position,
Toggle IOC switch from OFF
to Course Lock position
Toggle IOC
switch to OFF
position
Toggle IOC switch
from OFF to Course
Lock position
Home Lock
Switch
Setting
Record the
home point
Set Control Mode switch at
GPS position,
Toggle IOC switch from OFF
to Home Lock position
Toggle IOC
switch to OFF
position
Toggle IOC switch
from OFF to Home
Lock position
POI
Switch
Setting
Record the POI
Set Control Mode switch at
GPS position,
Toggle IOC switch from OFF
Toggle IOC
switch to OFF
position
Toggle IOC switch
from OFF to POI
position
