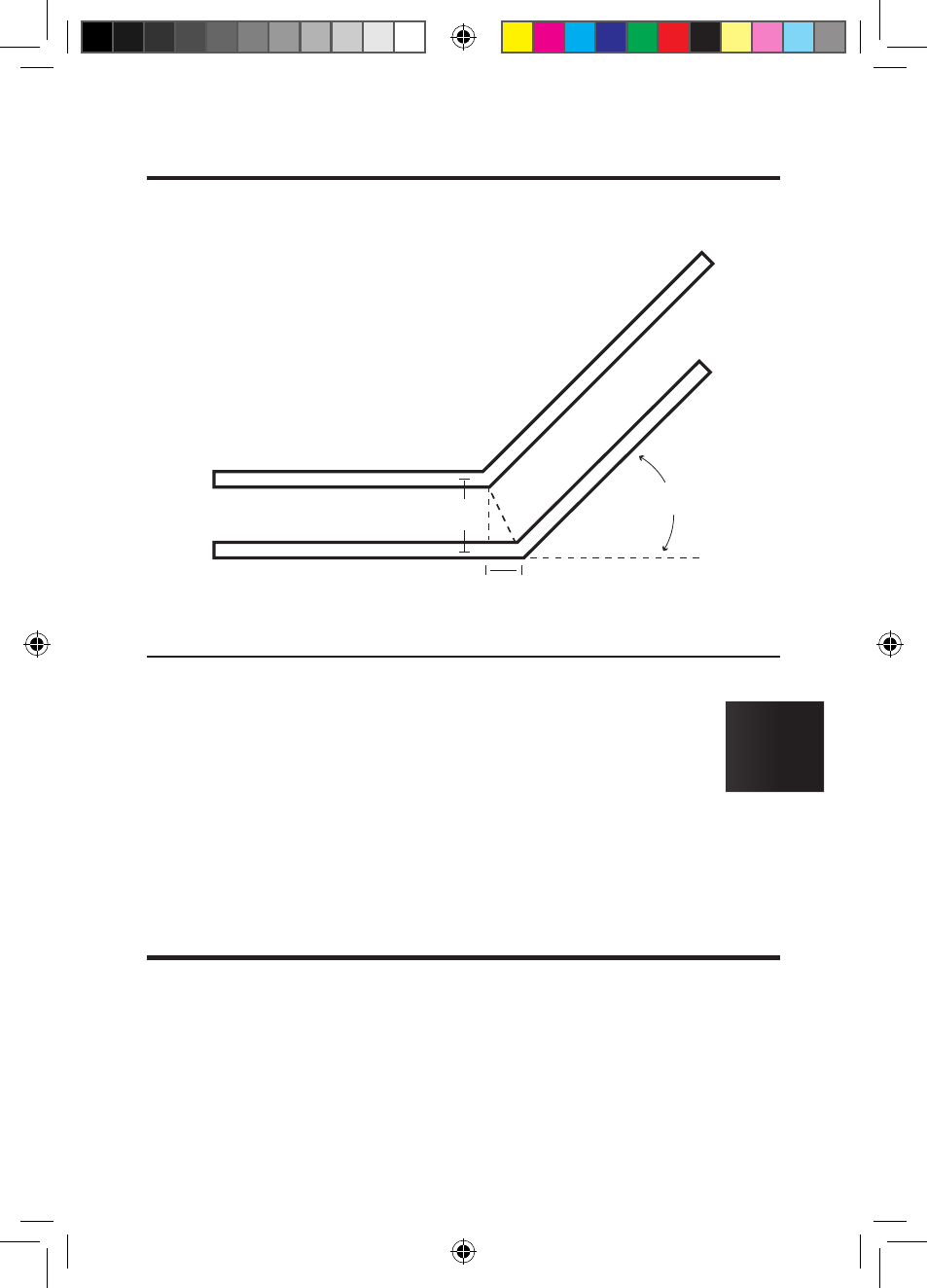

Concentric Pipe Bend Cutback
Find the pipe Cutback when you are running pipes through a
45º bend with a 10" offset.
10”
CUTBACK
45º
KEYSTROKES
DISPLAY
0.
1. Enter the bend angle:
/Ø 45.00
2. Enter the Offset:
OFST 10 INCH
3. Calculate the Cutback:
CUT 4 1/8 INCH
Rolling Offset
The components of rolling offset calculations sometimes have
different names in different geographic regions and in different
trades.
● Roll – the horizontal component of a rolling offset. May also
be known as “offset”.
● Offset – the vertical component of a rolling offset. May also
