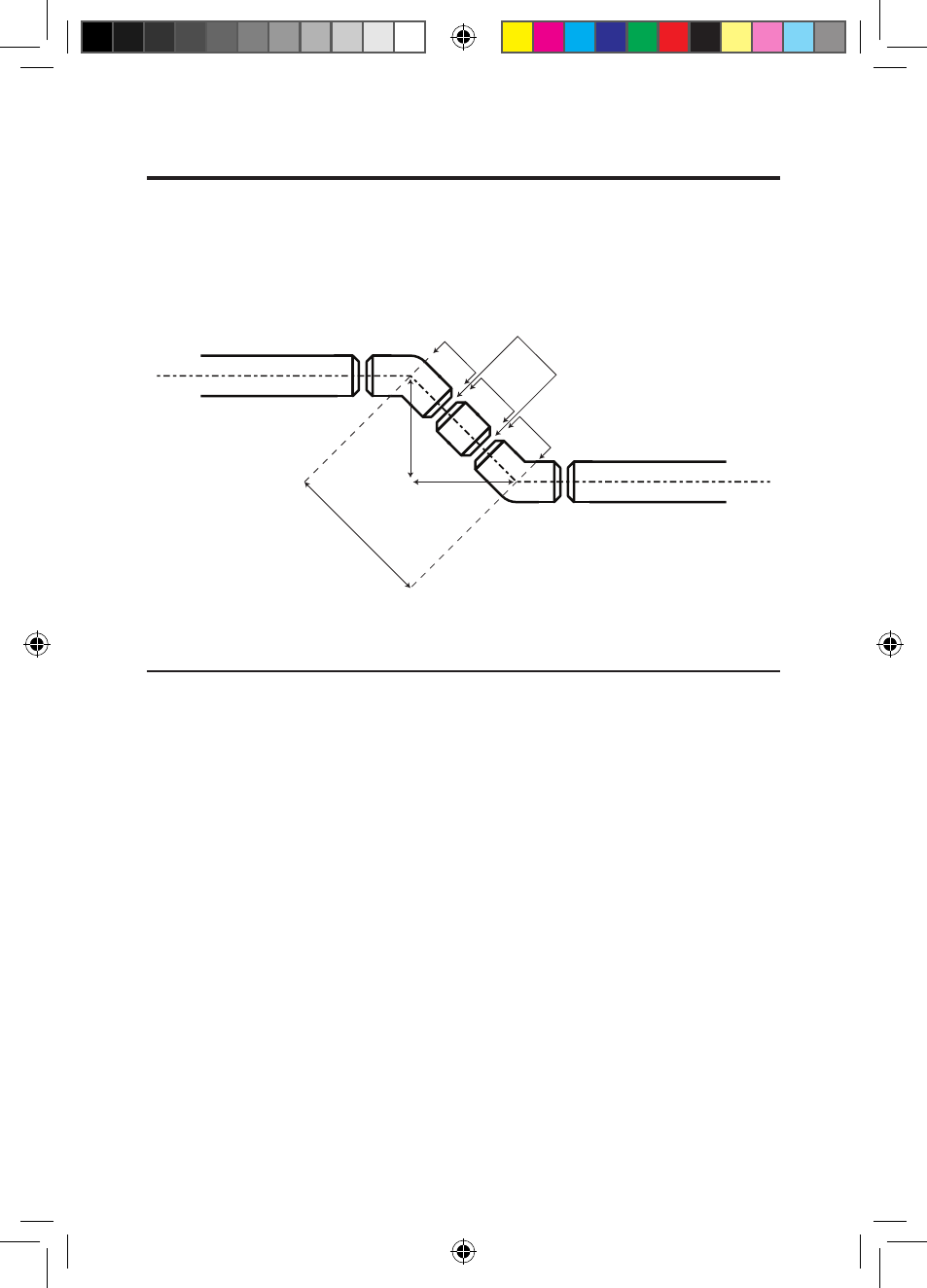

Simple Offset
Find the cut length for a pipe that has a 24" Run and 45° simple
offset. Example assumes a 6" 45° butt weld elbow with a take
out of 3 3/4" and a welder’s gap of 3/32."
24˝ Run
24˝
Travel
T.O.
T.O.
Cut Length
We
lder
’s G
aps
45º SIMPLE
OFFSET
T.O. = Take Out
KEYSTROKE DISPLAY

 0.
1. Enter Run:
    RUN 24 INCH
2. Enter bend angle:
   /Ø 45.00°
3. Find the Travel:
 33 15/16 INCH
4. Subtract 2 times the elbow take out (2 x 3 ¾") from the
calculated centerline Travel:
         26 7/16 INCH
5. Subtract 2 times the welder’s gap (2 x 3/32"):
       
26 1/4 INCH
