Brandmotion 2000-3811 User Manual
Page 9
Section 3: Scion xB, 2011 – Current
2000-3811 Instructions 8-1-13.Doc
Page 9 of 54

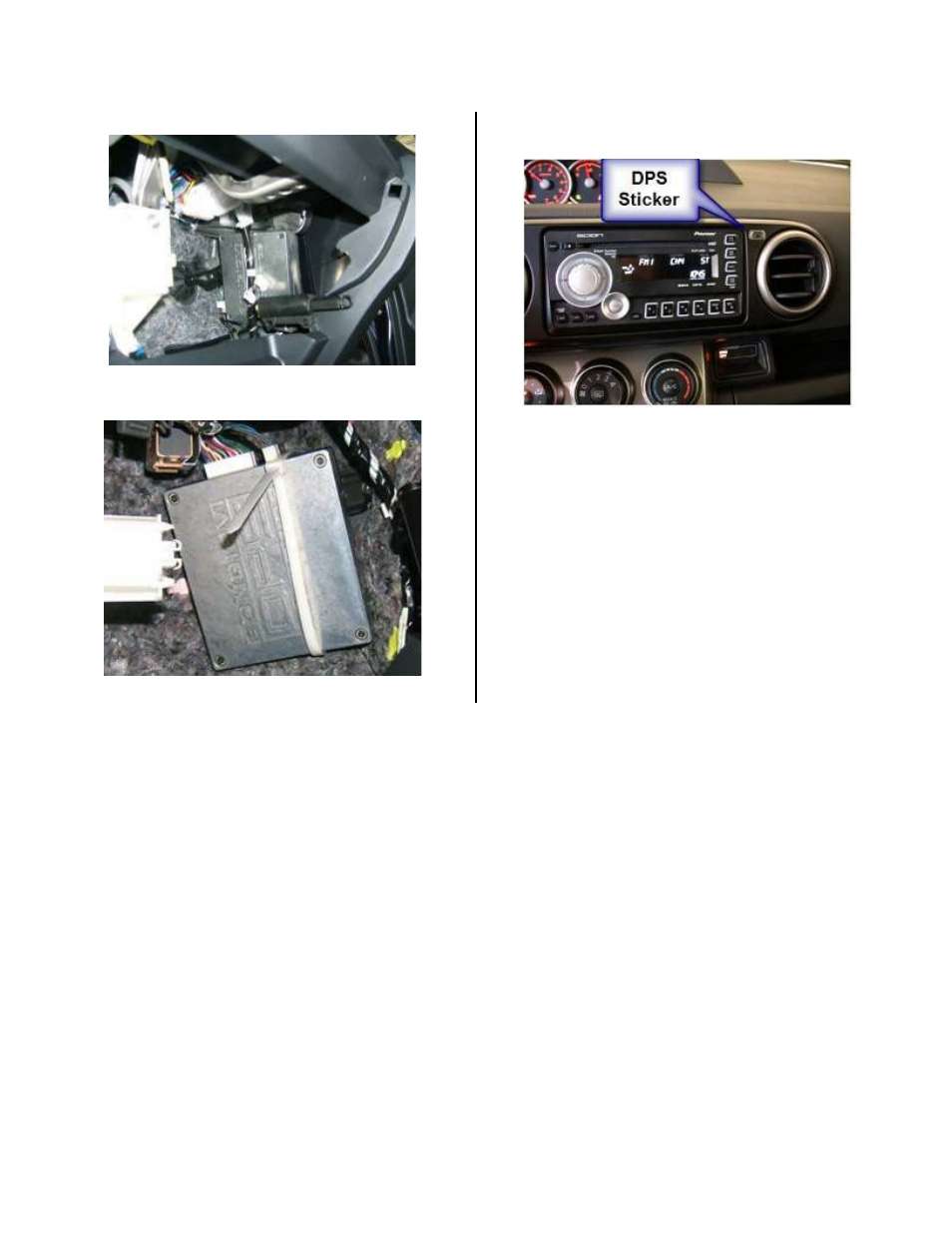

21. Slide supplied 24” Wire Ties under factory wire harness.
22. Place DPS module over supplied Wire Ties and tighten
to secure as shown. Use side cutters to trim excess.
23. Re-install removed parts in reverse order of removal.
24. Use a 50/50 mix of alcohol and water to clean dash
surface before installing the DPS badge.
