Section 6: Toyota Avalon, 2010 - Current
2000-3811 Instructions 8-1-13.Doc Page 15 of 54
1. Ensure all radio functions are working properly, return
all Treble, Bass, Fade, and Balance to neutral settings,
and remove any CDs to avoid possible jam before
disassembly.
2. For vehicles equipped with automatic transmissions,
place shifter in the N (neutral) position and set parking
brake.
3. Using a 10mm socket, loosen the negative battery
cable bolt. Remove negative battery cable from
terminal and position away from battery.

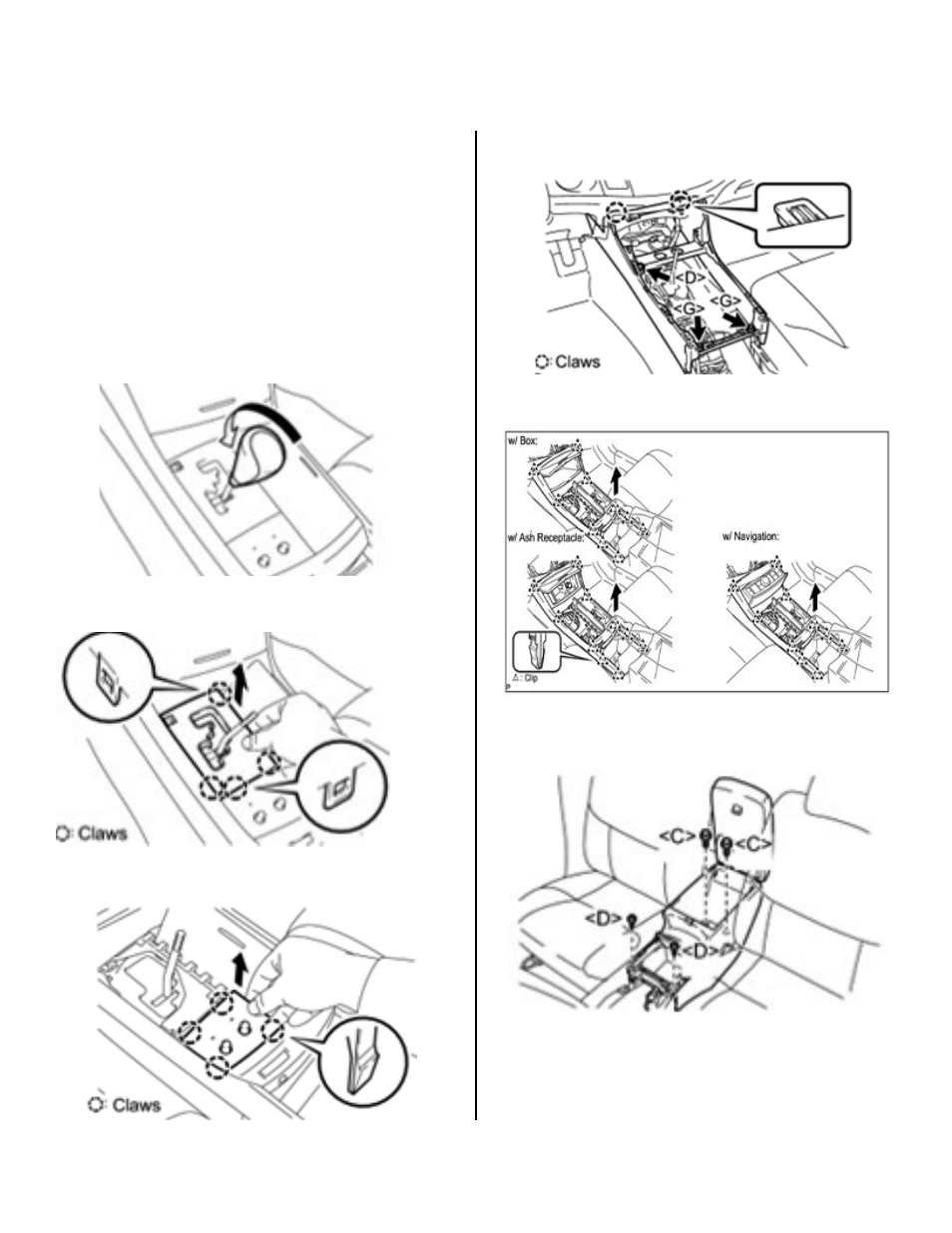

4. Remove shift lever knob by twisting shift lever knob
counterclockwise as indicated by the arrow below.
5. Disengage 4 claws retaining the shifter trim plate and
remove.
6. Disengage 4 claws retaining the seat heater trim plate
and remove.
7. Disengage the 6 claws retaining the console upper box
and remove.
8. Disconnect each connector and remove the console
upper panel sub-assembly.
9. Open console door to remove the 2 screws and 2
12mm bolts from back of console. Remove rear
console.
