2000-4100 thru 2000-4103 Installation Instructions (HomeLink)
IMPORTANT : Check kit contents and read instructions before installing. For the latest full color instructions
please visit www.brandmotion.com
Kit contents
1 – HomeLink Module 3 – Foam Gaskets
1 – 6’ Wiring Harness 3 – Posi-Taps
1 – Plastic Trim Template 3 – Foam Spacers
HomeLink Programming and Information Guide These Instructions
Additional Kit Contents
(varies according to SKU)
Kit Number Black Faceplate Gray Faceplate Tan Faceplate
2000-4100 Included Included Included
2000-4101 Included
2000-4102 Included
2000-4103 Included
Required Tools
Assorted flatblade, Phillips, and Torx screwdrivers X-Acto Knife
Digital Multimeter or Computer-safe Test Light Roto Tool
Plastic Trim Removal Tool Wire stripper/ cutter
Felt Tip Marker
Mount HomeLink Faceplate

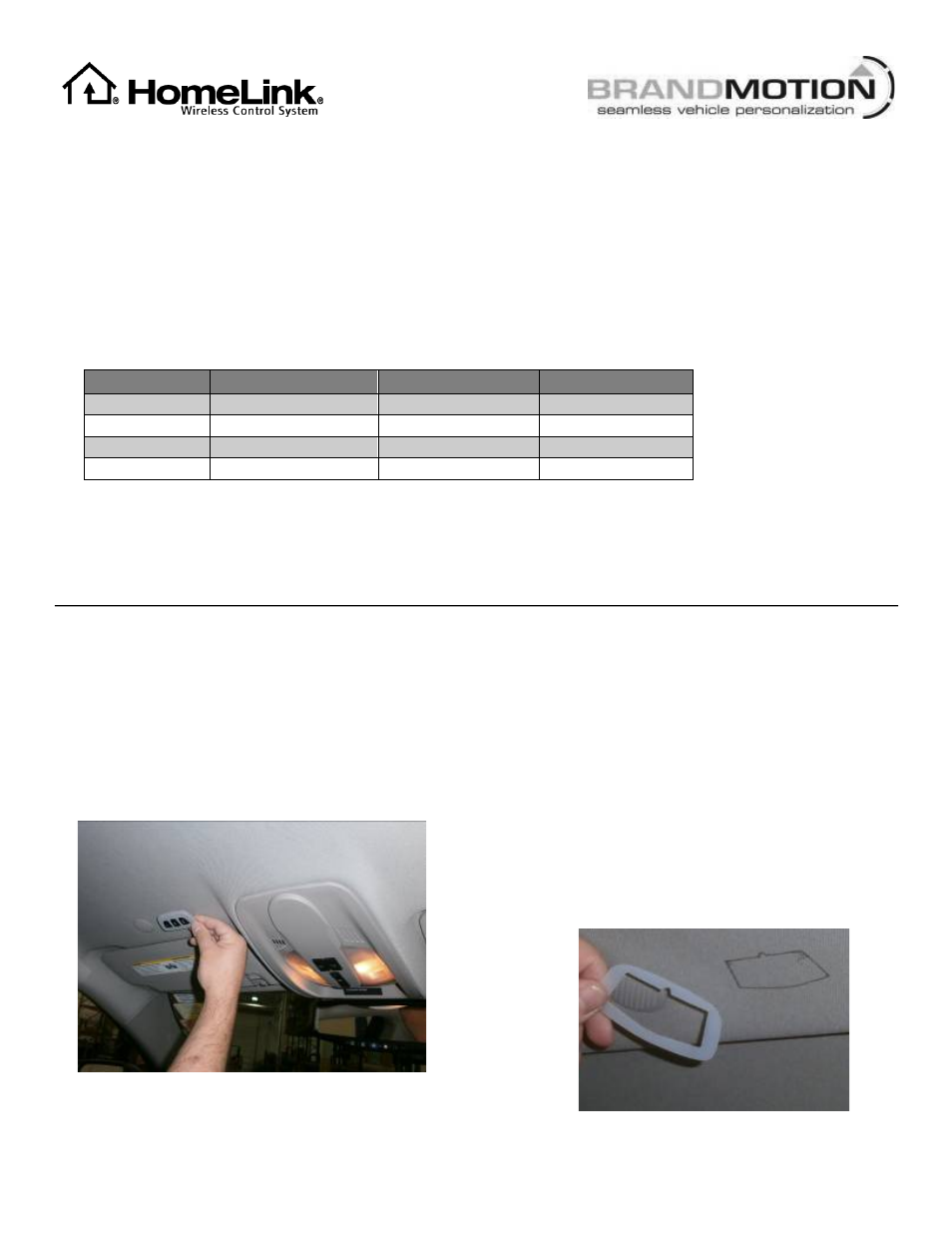

Step 1. Select Faceplate and use it to find your
desired mounting location for the HomeLink
Module. NOTE: Mounting surface must be fairly
flat and approximately 3” x 1¾” in size (7.62cm
x 4.45cm). Module may be mounted in the
headliner or in a plastic panel. Hold Faceplate
up to the location to make sure HomeLink fits
the space and will be convenient to use.
Step 2. Use a Plastic Trim Removal Tool to
remove any panels necessary to gain access to
the backside of mounting surface (substrate).
Make sure there is clearance behind the
mounting location and that the HomeLink unit
will not interfere with vehicle airbags or any
other component.
Step 3. Determine thickness of substrate.
Substrate thickness must be between or
compressible to between 1/16 to ¼ inch (2 to
8mm) thick for proper fitment.
Step 4. Use supplied Plastic Trim Template to
mark a clearance hole in the substrate.
