INSTALLATION INSTRUCTIONS
8601 Instructions 7-20-12.doc Page 2 of 4

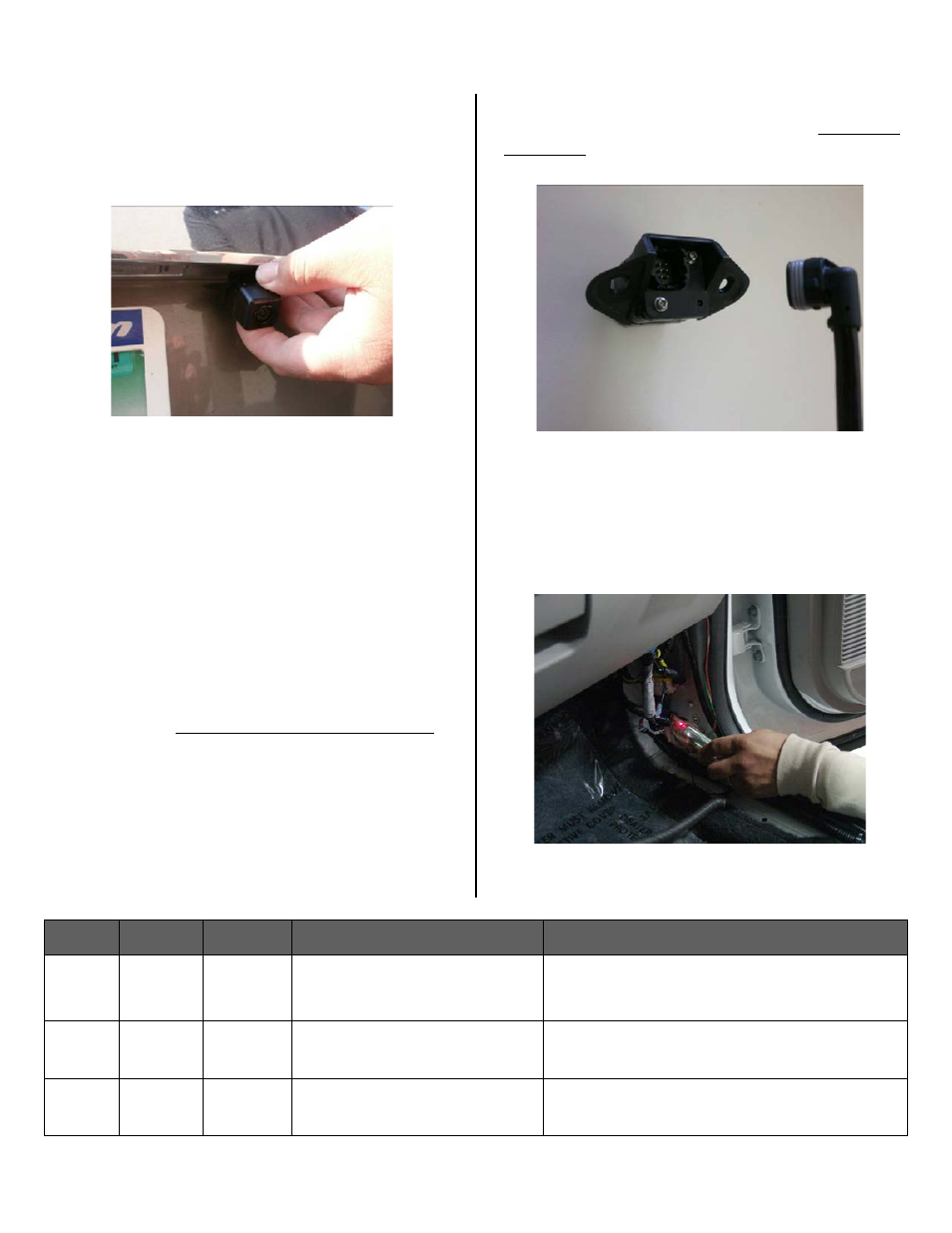

Step 1: Install Camera Mount. Place Camera
Mount in desired position to confirm fitment (Note:
Some states prohibit items blocking the vehicle
license plate; check local authorities to confirm
legal status for your specific application).
Step 2: Using the supplied Template, mark
and drill two 5/16” holes for the camera
mounting bolts and three 5/16” holes for the
Camera Mount opening. NOTE: If your vehicle
has a liftgate panel/trunk trim cover, it must be
removed.
Step 3: Using a Roto tool or a file, open up
the area between the three holes you just
drilled. The opening should now match the
opening on the Template.
Step 4: Mount the Camera using the supplied
hardware. Insert the 2 rubber nut inserts into the
outer holes and use a Phillips screwdriver to thread
the bolts in but do not tighten them down just yet.
Step 5 (if necessary): Using a ½” drill bit, drill
an opening for the head of the Camera
Harness to pass through. Insert Camera
Harness head through the hole. (RECOMMENDED:
Protect Camera Harness with a rubber grommet or
by applying a small amount of silicone caulk to the
area that comes into contact with the metal.)
Step 6: Snap the head of the Camera Harness
into the Camera. (CAUTION: This is a permanent
connection and cannot be disconnected without
compromising the integrity of the connection).
Step 7: Determine location of vehicle power
and ground. Using a vehicle specific service guide
and/or vehicle specific wiring diagram and a multi-
meter or computer-safe test light, locate which side
of the vehicle containing the following wires into
which you will need to tap for the Video Display
Harness wiring (see Chart A).
Chart A
Wire
Color Polarity Function Description Location note
Red 12v +
Ignition
controlled
power
This lead displays 12 volt + when
the key is in the RUN position
Commonly found on the main Ignition harness.
Black (-) Ground Chassis ground
A ground bolt is commonly found in the front kick
panel area with other wires attached. In some
cases you may need to supply a new screw.
Green 12v +
Reverse
trigger
This lead is activated when the
vehicle is engaged into reverse
gear
Commonly found on the front kick panel area on
the harness coming from the rear of the vehicle
