INSTALLATION
INSTRUCTIONS
6504 Instructions 2-4-14.Doc Page 2 of 6

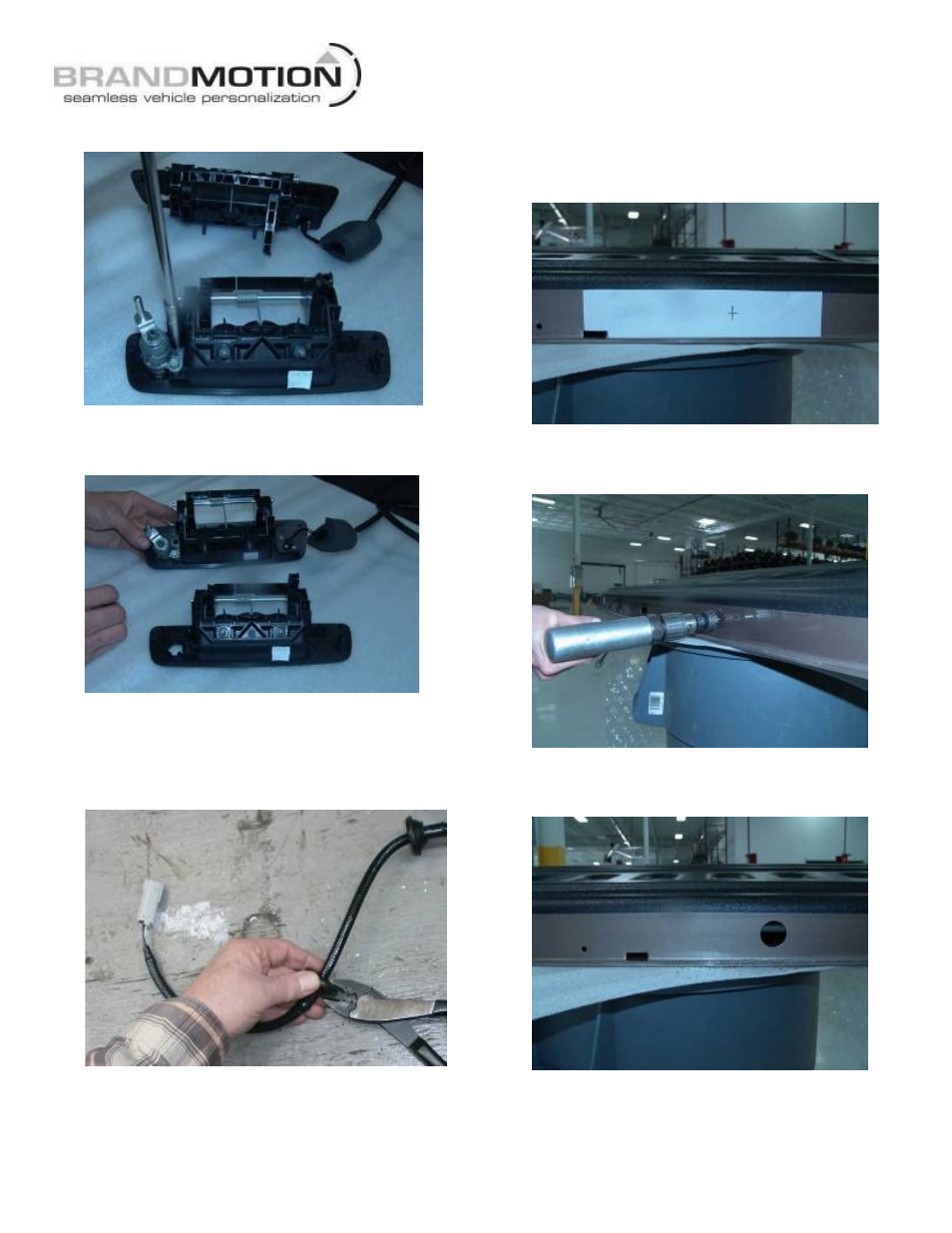

6. If equipped, remove the lock cylinder from existing
handle.
7. If equipped, remount the lock cylinder in the
supplied Tailgate Camera Handle using an 8mm
Socket and existing hardware.
8. Use a Utility Knife or Side Cutters to remove the
Rubber grommet closest to the gray connector end
from the Camera Harness. Wrap the Camera
Harness with Electrical Tape where you removed the
grommet.
9. Use Masking Tape to affix supplied Template A to
tailgate. An existing small rectangular hole in the
center of the lower tailgate edge will match up with
the left side of Template A. Use a Center Punch to
mark the tailgate at the “X” on Template A and
remove Template A.
10. Use a 1/8” drill bit to make a pilot hole at the center
punch mark. Then use a 1” Hole Cutter to cut a pass
through in the tailgate.
11. Clean rough edges of the hole using a Deburring
Tool or Round File. RECOMMENDED: Apply
Corrosion Inhibitor to the metal edges.
