Installation instructions

INSTALLATION INSTRUCTIONS
6504 Instructions 2-4-14.Doc
Page 1 of 6
Rear Vision System – Aftermarket and Factory Display Radio
(Factory Display requires Chrysler/Dodge dealer to activate)
2009 – 2012 Dodge Ram (Kit part number 1009-6504)
Please read thoroughly before starting installation
and check that kit contents are complete.
Items Included in the Kit:
Chassis Harness with RCA**
Tailgate Handle with Camera
8.4” Factory Touch Screen Jumper
Harness
1 bag containing:
Plug for Non-Locking Tailgates
(Optional)
White 22 pin connector (Optional)
1 bag containing:
These instructions
Template
**In some cases a RCA extension may be required
to connect to your aftermarket display; Kit#
9002-6111 may be purchased from
Brandmotion.com
Tools Required:
Socket Wrench with 7mm & 8mm Sockets
T20 and T30 Torx Bits
Phillips and Flat Blade Screwdrivers
Power Drill
1/8” Drill Bit
1” Hole Cutter
Pushpin Removal Tool
Round File or Deburring Tool
Center Punch
Utility Knife or Side Cutters
Masking Tape
Corrosion Inhibitor (recommended)
Soldering Iron & Solder (recommended)
Wire Ties (recommended)
We strive to provide accurate and up-to-date installation instructions.
For the latest full color instructions, please visit www.brandmotion.com

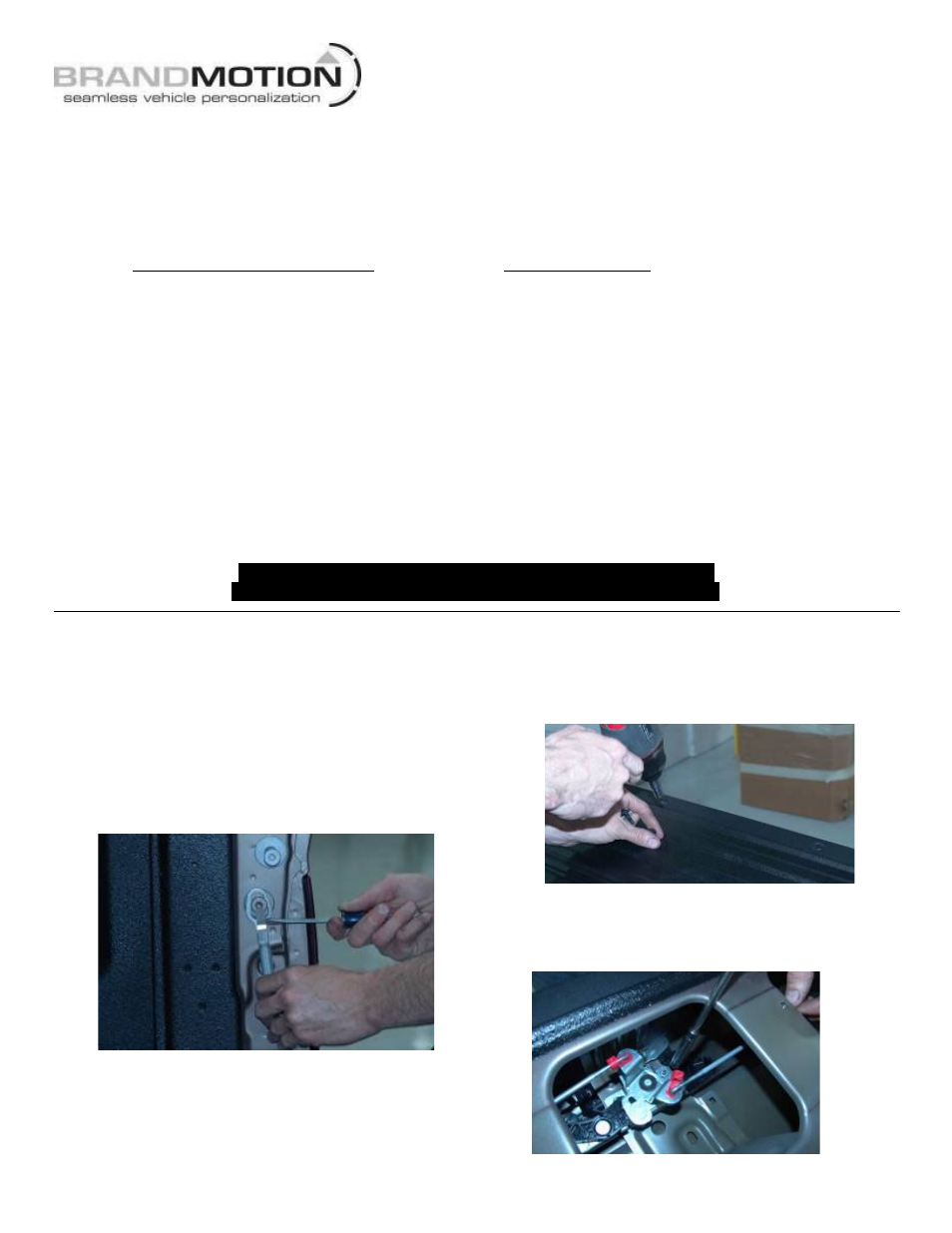

Install Tailgate Handle Camera
1. Set up a work area on which to set the tailgate after
removal. This area should be well protected to avoid
damage to tailgate.
2. Unhook both tailgate support straps by inserting a
Flat Blade Screwdriver between the locking tab and
strap mount. Lift the locking tab away from the
strap mount with the screwdriver while sliding the
tailgate strap upwards. The tailgate strap hanger
can now be removed from the mount.
3. Open tailgate about ten degrees and lift right side of
the tailgate off the pin. Next, slide tailgate to the
right to remove taking care not to damage the paint.
NOTE: Tailgate removal and installation requires two
people.
4. Remove the handle access panel inside the tailgate
using a T30 Torx driver. (NOTE: If vehicle is
equipped with a bed liner, the tailgate portion of the
liner must be removed prior to this step.)
5. Remove nuts attaching handle to tailgate using an
8mm Socket, then remove handle from tailgate.
(NOTE: Non-power locking tailgate mechanism
shown.)
