INSTALLATION
INSTRUCTIONS
8836 Instructions 10-7-14.docx Page 5 of 7

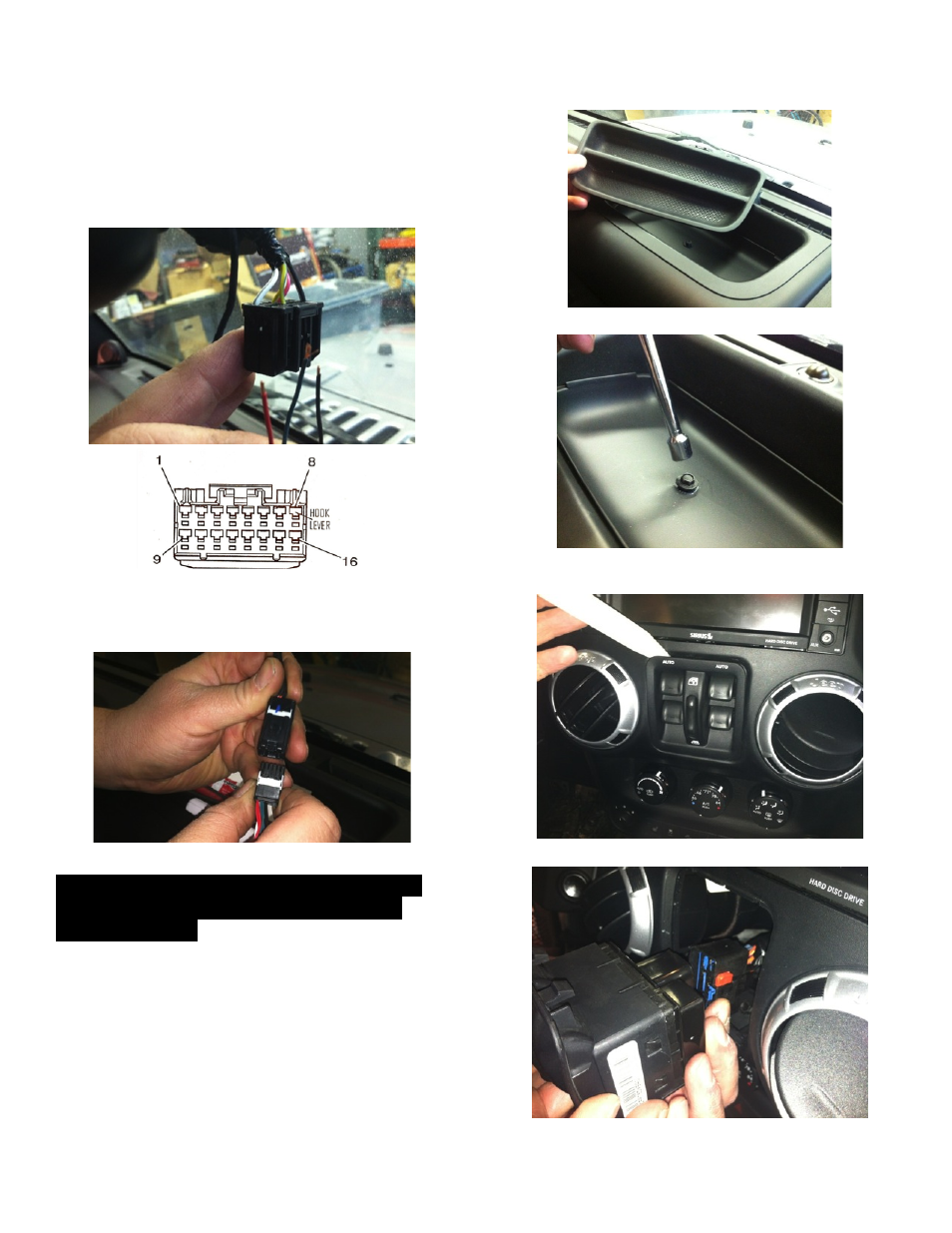

Step 27: Splice the two red and green wires located
near the 10-pin connector on supplied Mirror Harness to
the below indicated wires of the factory mirror harness
using solder and cover with heat shrink tubing
(recommended).
16 Pin Position 9 - Reverse White/Gray to Green Wire
16 Pin Position 13 - 12v Ignition Pink/Yellow to Red Wire
16-pin Connector face
Step 28: Connect supplied Mirror connector to supplied
Mirror Harness. Proceed to Step 44.
NOTE: Follow Steps 29 through 42 ONLY for
2007 to 2012 vehicles equipped with non-
powered mirrors.
Step 29: In the factory wire harness located in the
passenger foot well, locate the White/Gray Reverse
signal wire and splice Green Reverse wire from supplied
Mirror Harness. RECOMMENDED: Use solder and cover
with heat shrink tubing or use T-tabs as an alternate
connection method.
Step 30: Perform above Steps 21 through 26 before
proceeding to Step 31.
Step 31: Remove rubber bin insert from top of dash.
Step 32: Remove 7mm bolt .
Step 33: Using a plastic trim removal tool, remove
window switch panel.
Step 34: Disconnect harness from window switches.
