7

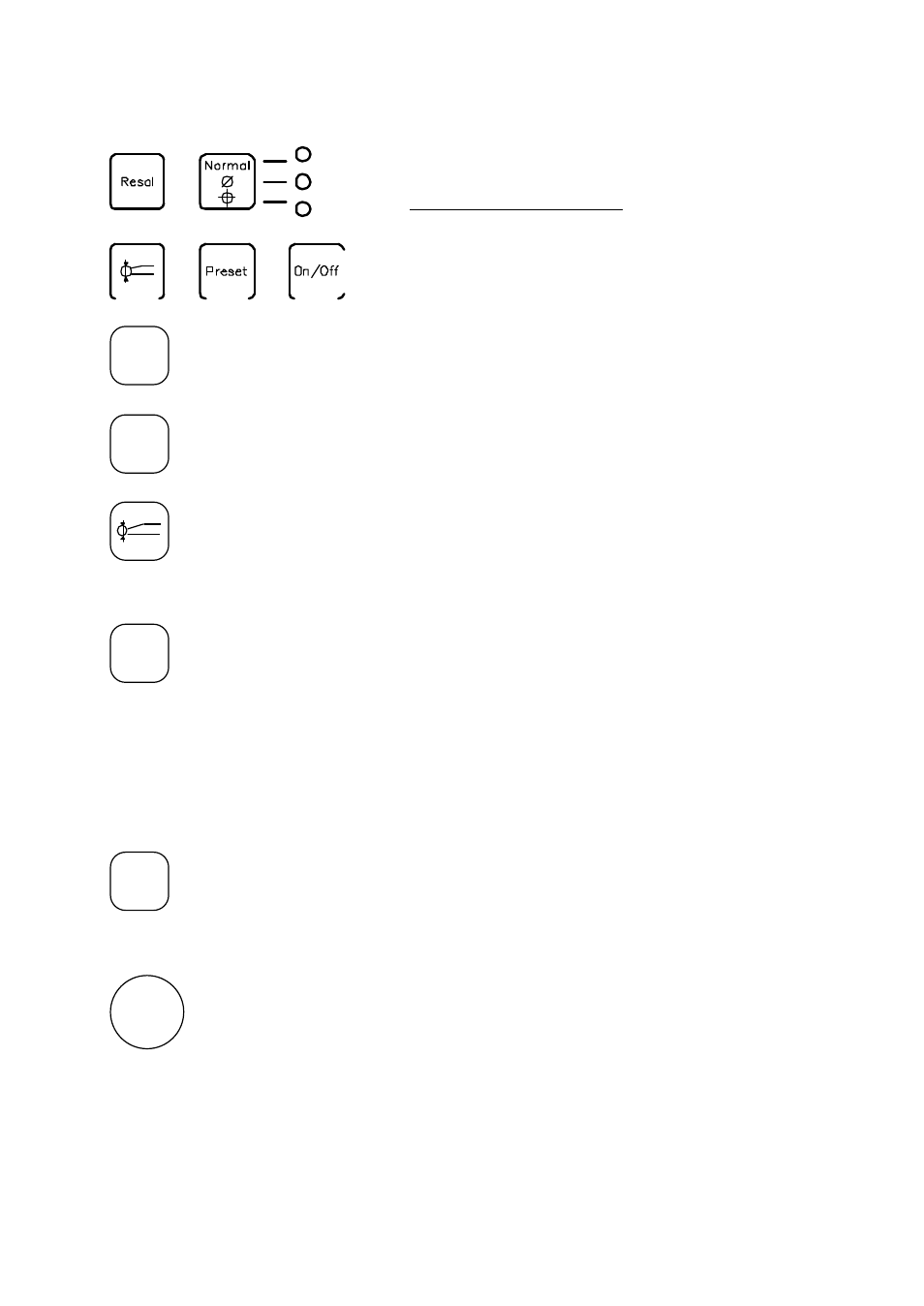

6. MAIN FUNCTIONS
Briefly pressing these keys provides direct access
to each function.
Switches the instrument ON or OFF.
Zeroes the display or sets to the memorized value.
- Displays the probe constant value. Return to measuring mode without
change : press any key.
- Measuring the constant : one measurement on each side of the
master gauge (see 5.2).
- Normal = green light = measuring heights of normal and reversed
surfaces (the probe constant must have been previously entered to
measure reversed surfaces).
-
∅ ∅ = orange light = measuring diameter (takes account of probe
constant). Measures internal or external diameters in any sequences.
-
⊕ ⊕ = yellow light = displays the centerline. Comes after the diameter
display, as soon as :
- the probe is released, or
- the Normal
∅ ⊕
key is pressed
Changes the display resolution: 0.001 mm
↔
0.01 mm.
or : 0.00005 in
↔
0.0005 in.
RS232 data output (function 1), only when measuring. If Print or the
external contact is held when switching on : changes Print or external
contact function :
1 = Print = RS232 data output
2 = Zero setting of the display
3 = Switches between Normal
↔
Diameter mode
4 = Switches between references Ref 1
↔
Ref 2
Choice of function by pressing Print or the external contact, validation
by pressing any other key
On/Off
Preset
Normal
∅
⊕
Resol
Print
