5
2.3 Modification Kits - The basic capability of the
controller can be quickly and conveniently extended
with the use of a variety of optional Modification Kits. The
Basic Controller modifications are:
D Tachometer Feedback
D Voltage/Tachometer Follower
D Instrument Interface/Preset Speed
D Test Meter Adapter
D Status/Diagnostic Indicator
D Dancer Follower
D Master Isolated Reference Receiver
D Contactor Adapter
The Auxiliary Panel modifications are:
D Blower Motor Starter
D Reversing Contactor
D Circuit Breaker
D Auxiliary M Contact
D Remote Dynamic Braking Kits are also available.
Complete descriptions of each Kit are given in Section 7.
L
1
, L
2
, L
3
INCOMING LINE
CONNECTIONS
47 - 45 (A
1
, - A
2
ARMATURE TERMINALS
F
1
, - F
2
TERMINALS
THREEĆPHASE
INCOMING
LINE FUSES
CONTROL CIRCUIT
FUSE
REMOTE OPERATOR'S
CONTROL BUFFER
CONTROL REFERENCE
INPUT TERMINALS
RIBBON CABLE CONNECTOR
TO DIGITAL DRIVER
MODULE
COVER
PLATE
REGULATOR PRINTED
CIRCUIT CARD
REVERSING
CONTACTOR OR
BLOWER MOTOR
STARTER
MOUNTING
LOCATION
INCOMING
PROTECTIVE
CIRCUITRY
WIRING (MOTOR
THERMOSTAT,
ETC.)
SHUNT FIELD
EXCITATION
FUSES
DIAGNOSTIC
CONNECTOR
M" CONTACTOR MOUNTING
LOCATION
MOUNTING
LOCATION FOR
OPTIONAL CIRCUIT
BREAKER OR
BLOWER MOTOR
STARTER
LSI REGULATOR
CHIP
DRIVE
ALIGNMENT
POTENTIOMETERS

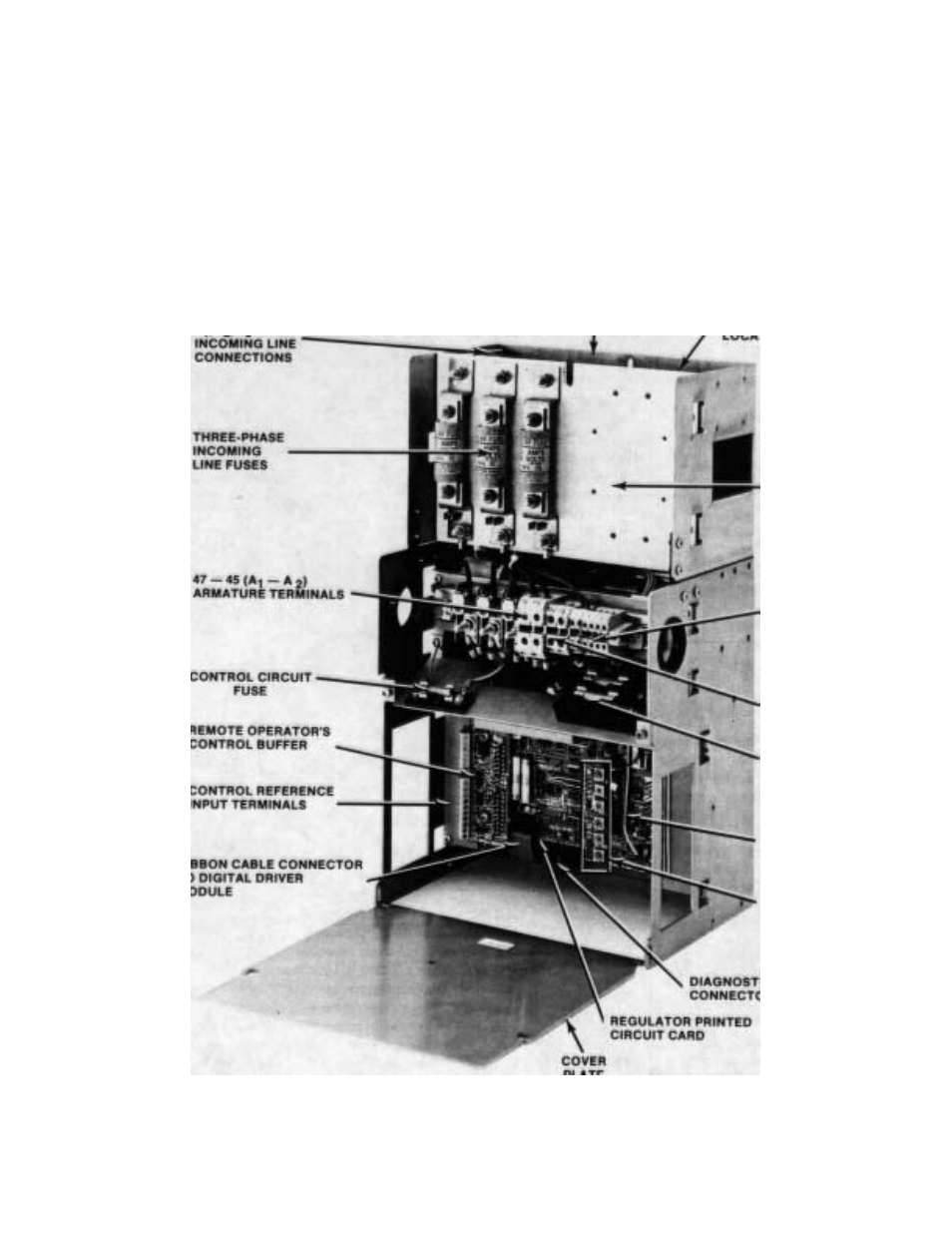

Figure 2.2 - FlexPak Plus DĆC VKSDrive 3 Ć40 HP Complete Controller Open Cover of Basic Drive
