7-18

ControlNet Communications Module

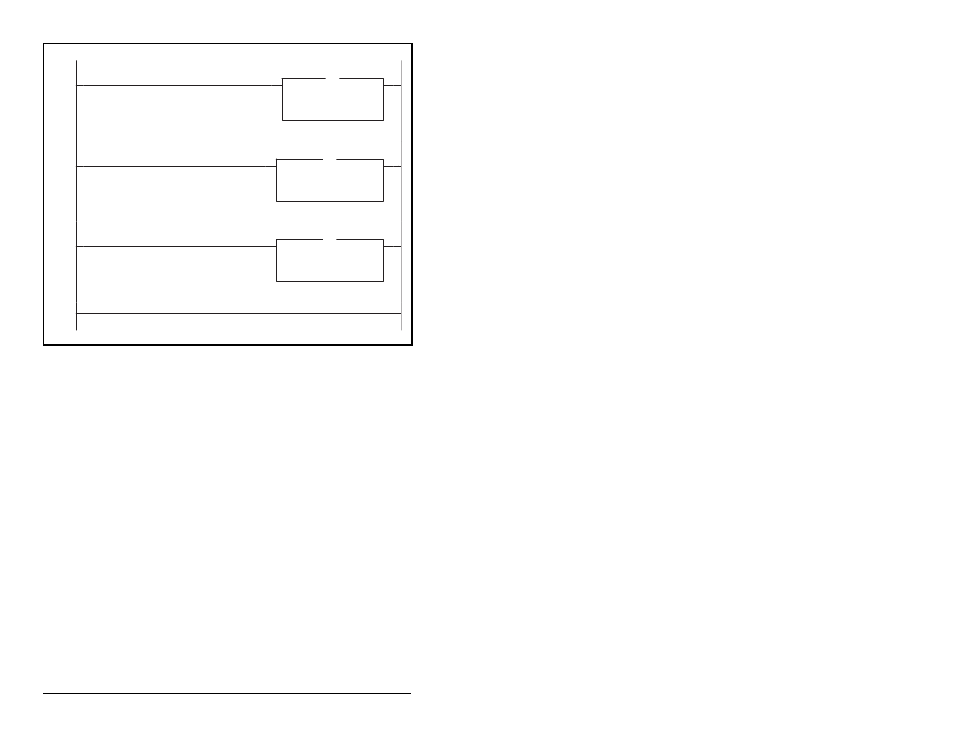

Figure 7.22 – I/O Messaging (Continued)

This rung moves data from the DriveReference tag to the drive where it is used as a frequency reference.

7

Copy File
Source

DriveReference

Dest

DriveOutputImage.Data[1]

Length

1

COP

This rung moves data from the DriveReference tag to the drive where it is used as a frequency reference.

This rung moves Datalink data from the drive.

8

Copy File
Source

DriveInputImage.Data[4]

Dest

ParameterDataFromDrive[0]

Length

8

COP

This rung moves Datalink data from the drive.

This rung moves Datalink data to the drive.

9

Copy File
Source

ParameterDataToDrive[0]

Dest

DriveOutputImage.Data[2]

Length

8

COP

This rung moves Datalink data to the drive.

(End)
