Rockwell Automation RECOMM-CNET ControlNet Communications Module User Manual
Page 79

ControlLogix Applications
7-11
Step 15. In the Data Types folder, click on the Module-Defined
sub-folder. When you create a module, module-defined
data types and tags are automatically created. These tags
allow you to access the Input and Output Data of the
module via the controller’s ladder logic.
Step 16. Select Communications / Download to download the
configuration to the controller (figure 7.16). RSLogix
automatically enters on-line mode when complete.

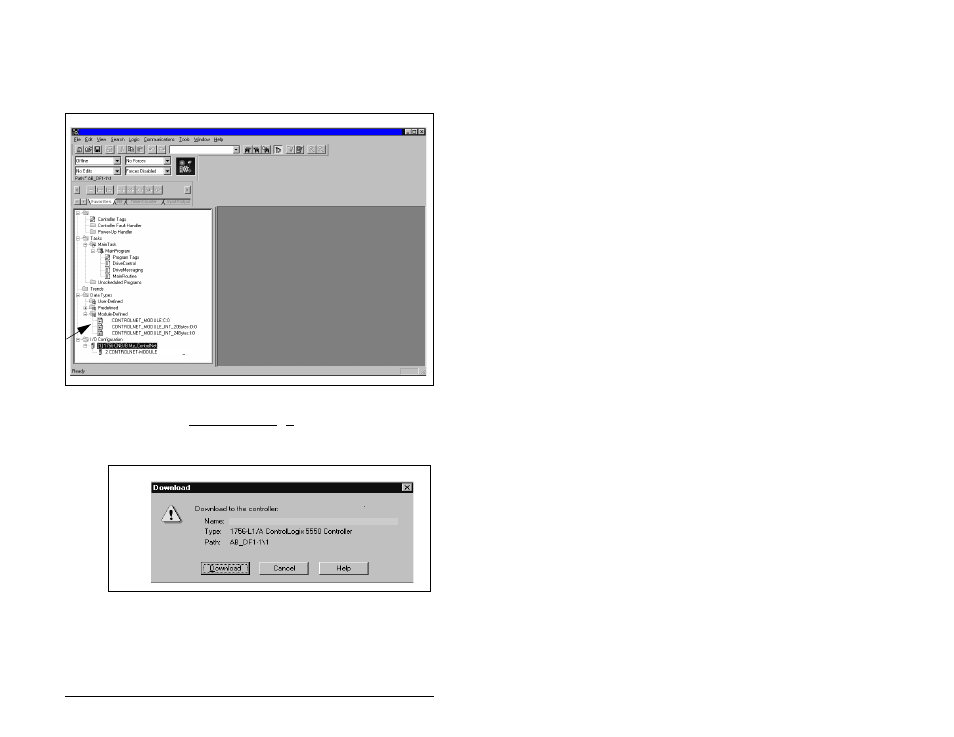

Figure 7.15 – RSLogix 5000: Module-Defined Screen
RSLogix 5000 - Example_RECOMM-CNET [1756-L1]
Controller Example_RECOMM-CNET
RE:
RE:
RE:
SP600_02
Figure 7.16 – Download to the Controller Dialong Box
Example_RECOMM-CNET
