Mp-series sealing air pressure kit – Rockwell Automation MPAI Heavy Duty Electric Cylinders User Manual
Page 58
58 MP-Series Heavy Duty Electric Cylinders
Rockwell Automation Publication MPAI-IN001E-EN-P - March 2012
MP-Series Sealing Air Pressure Kit
A sealing air pressure kit (catalog number MPF-7-AIR-PURGE) is available for field installation
on an M23 feedback connector. Positive air pressure supplied through the kit provides an
additional level of protection against the ingress of foreign substances and moisture.
The kit replaces the M23 feedback connector cap, provides a replacement O-ring, and includes
installation instructions. You must supply 4 mm (5/32 in.) OD Teflon FEP tubing, and an
external air supply that does exceed 0.1 bar (1.45 psi).

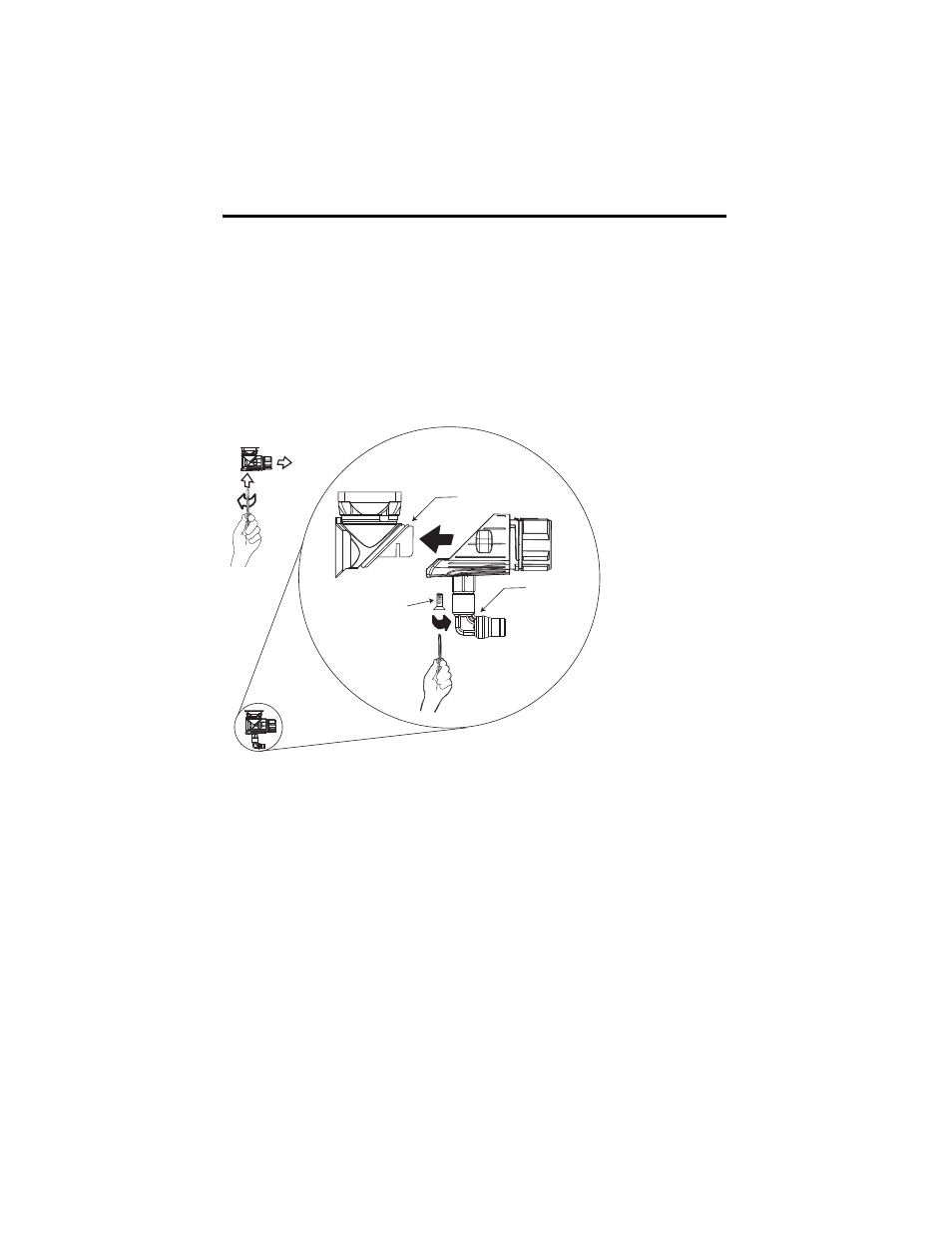

Air Pressure Kit Installation on an M23 Feedback Connector
O-ring
Air Fitting
Torx Screw
M3 x 10 mm Flat Head
Feedback connector attaches to a rotary or linear
motion device that is not shown.
