MP-Series Heavy Duty Electric Cylinders 53
Rockwell Automation Publication MPAI-IN001E-EN-P - March 2012
Accessories

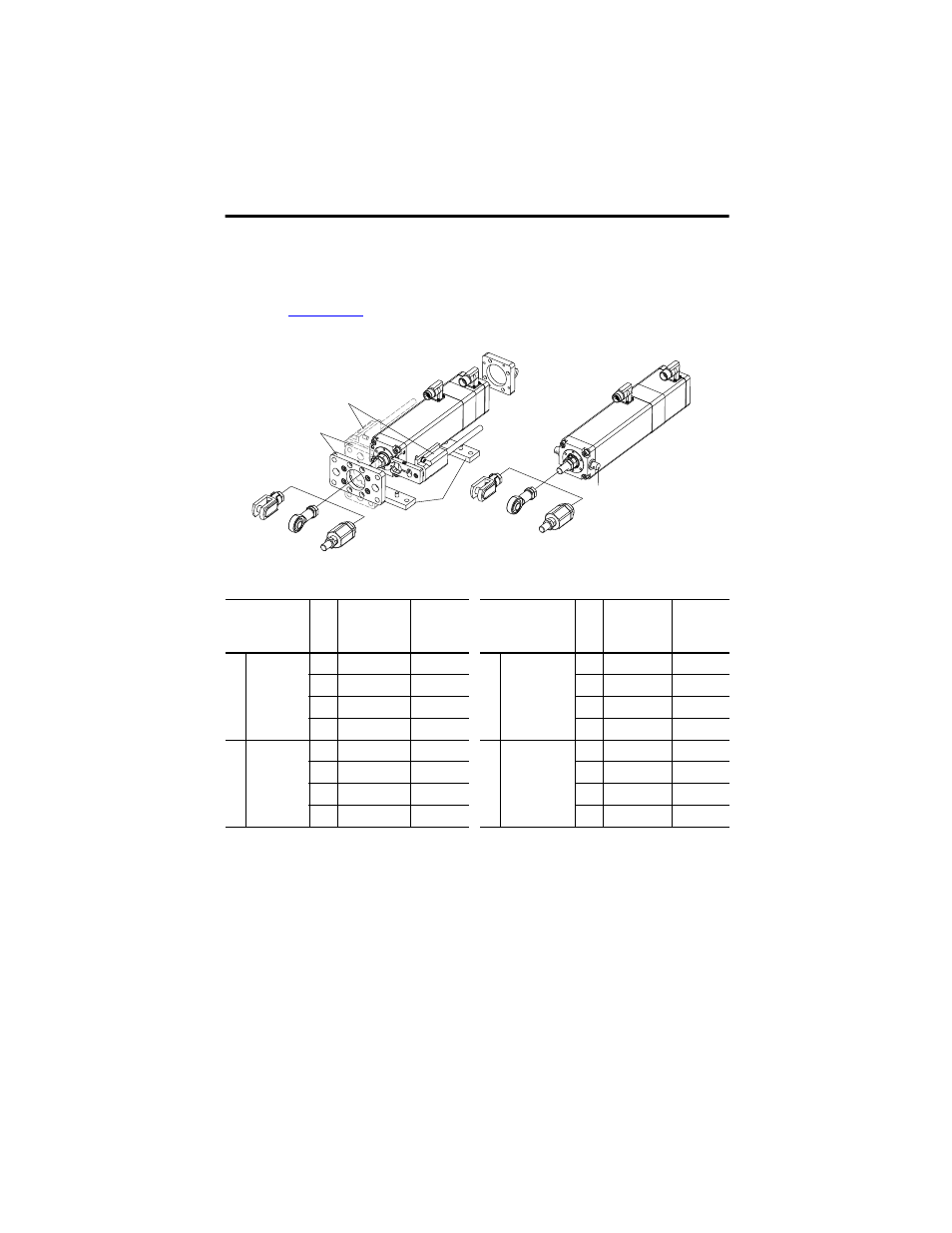

This diagram depicts the accessories available for the electric cylinders. Tables list the catalog
number and weight for each accessory. Refer to the Kinetix Motion Control Selection Guide,
publication GMC-SG001 , for dimensions.
Mounting Accessories
Accessory Item
Fr
am
e
Cat. No. Weight,
approx
g (oz) Accessory Item
Fr
am
e
Cat. No. Weight,
approx
g (oz)
1 Mounting
plates
64 MPAI-NA206 500 (17.6) 3 Front flange mount 64 MPAI-NA201 490 (17.3)
83 MPAI-NA306 920 (32.5) 83 MPAI-NA301 1070 (37.7)
110 MPAI-NA406 1150 (40.6) 110 MPAI-NA401 1740 (61.4)
144 MPAI-NA506 3080 (108.6) 144 MPAI-NA501 4170 (147.1)
2 Rear clevis
mount
64 MPAI-NA203 310 (10.9) 3 Front flange mount
(stainless steel)
64 MPAI-NA221 500 (17.6)
83 MPAI-NA303 700 (24.7) 83 MPAI-NA321 1090 (38.4)
110 MPAI-NA403 1430 (12.3) 110 MPAI-NA421 1770 (62.4)
144 MPAI-NA503 3010 (106.2) 144 MPAI-NA521 4250 (149.9)
Electric Cylinder
MPAI-A/BxxxxxM3xA
and Accessories
Trunnion-mount Electric Cylinder
MPAI-A/BxxxxxM3xB
and Accessories
3
4
6
5 6
5 1
Trunnion Mount (x2)
2
7
