Kinetix 2000 Drive Systems
Kinetix 2000 System Examples
This system example illustrates how the required drive modules and accessories are used in a typical system.

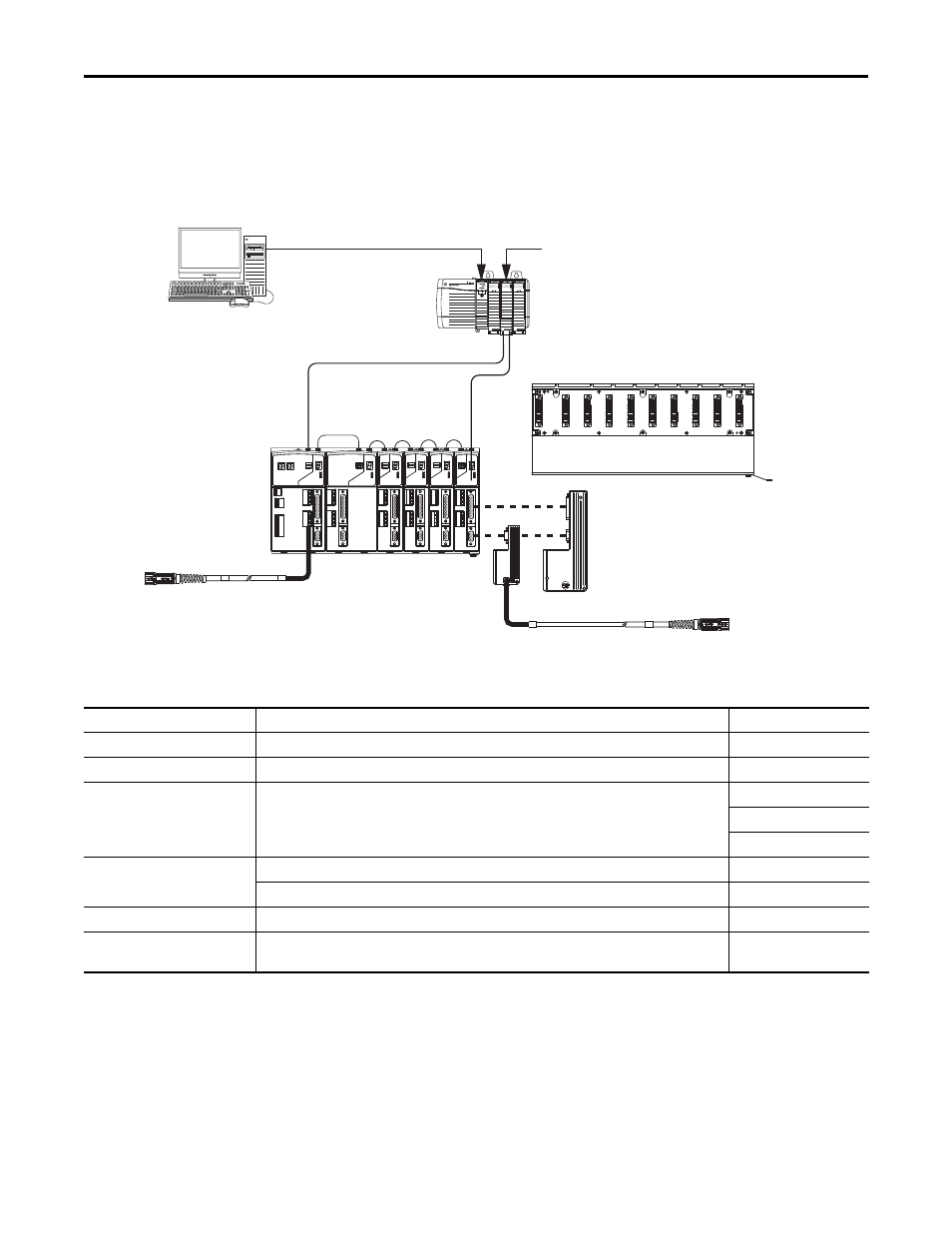

Kinetix 2000 Drive System Example (SERCOS interface)
Optional Drive Accessories
Drive Accessory
Description
Cat. No.
2094 shunt module
50 W continuous shunt power (mounts on power rail)
2093-ASP06
2094 slot-filler module
Fills unused slots on the 2094 power rail
2093-PRF
Bulletin 2094 line interface module
(LIM)
Replaces many of the common input power devices for your drive system
2094-ALxxS
2094-AL09
2094-XL75S-C2
2090 AC line filters
250V AC, 50/60 Hz, single-phase, EMC
2090-XXLF-TC116
520V AC, 50/60 Hz, three-phase, EMC
2090-XXLF-TC316
Bulletin 2090 cable clamp bracket kit
Provides stress relief for motor power cable and electrical path from cable shield to machine ground
2090-K2KSCLAMP-4
External auxiliary encoders
Allen-Bradley® sine/cosine and incremental external encoders
Bulletin 842A, 844D, 845H,
and 845T
0.2 m
(7.1 in.)
0.1 m (5.1 in.)
or
SERCOS Fiber-optic
Drive-to-Drive Cables
2093-AMxx
(single-wide)
AM Modules
2093-AC05-MPx
IAM Module
2093-PRSx
Power Rail
2093-PRSx
Power Rail
2094-K2CK-xxxx
Low-profile Connector Kits for
Motor Feedback and I/O
Bulletin 2090 Motor Feedback Cables
Bulletin 2090 Motor Power Cables
2093-AMxx
(double-wide)
AM Module
2090-SCxxx-x
SERCOS Fiber-optic Cables
Logix SERCOS interface Module
Logix Controller Platform
(ControlLogix® controller is shown)
RSLogix™ 5000
Software
Logix Controller Programming Network
