GV3000/SE AC Bookshelf Drive Software Reference, Version 6.06
5.3
Accessing, Reading, and Clearing the Faults in the
Error Log
The following procedure shows how to access and clear the error log. Note that you
cannot clear a single entry from the error log. The entire log, including all the fault
codes and the day and time stamp of each fault, will be cleared simultaneously using
this procedure.
SF
Self-tuning status
(Vector only)
See parameter U.009
SrL
Communication
loss between
Regulator/PC/OIM
Serial port communication cable, PC
or OIM communication port setup.
Check connection cable and
communication port setup.
UAr
Spurious host PC
comm interrupt
Regulator board failure.
Replace Regulator board.
UbS
Asymmetrical bus
charge
Bad Power Module.
Contact Reliance.
Table 5.2 – List of Fault Codes (Continued)
Code
Fault
Description
Fault Cause
Corrective Action

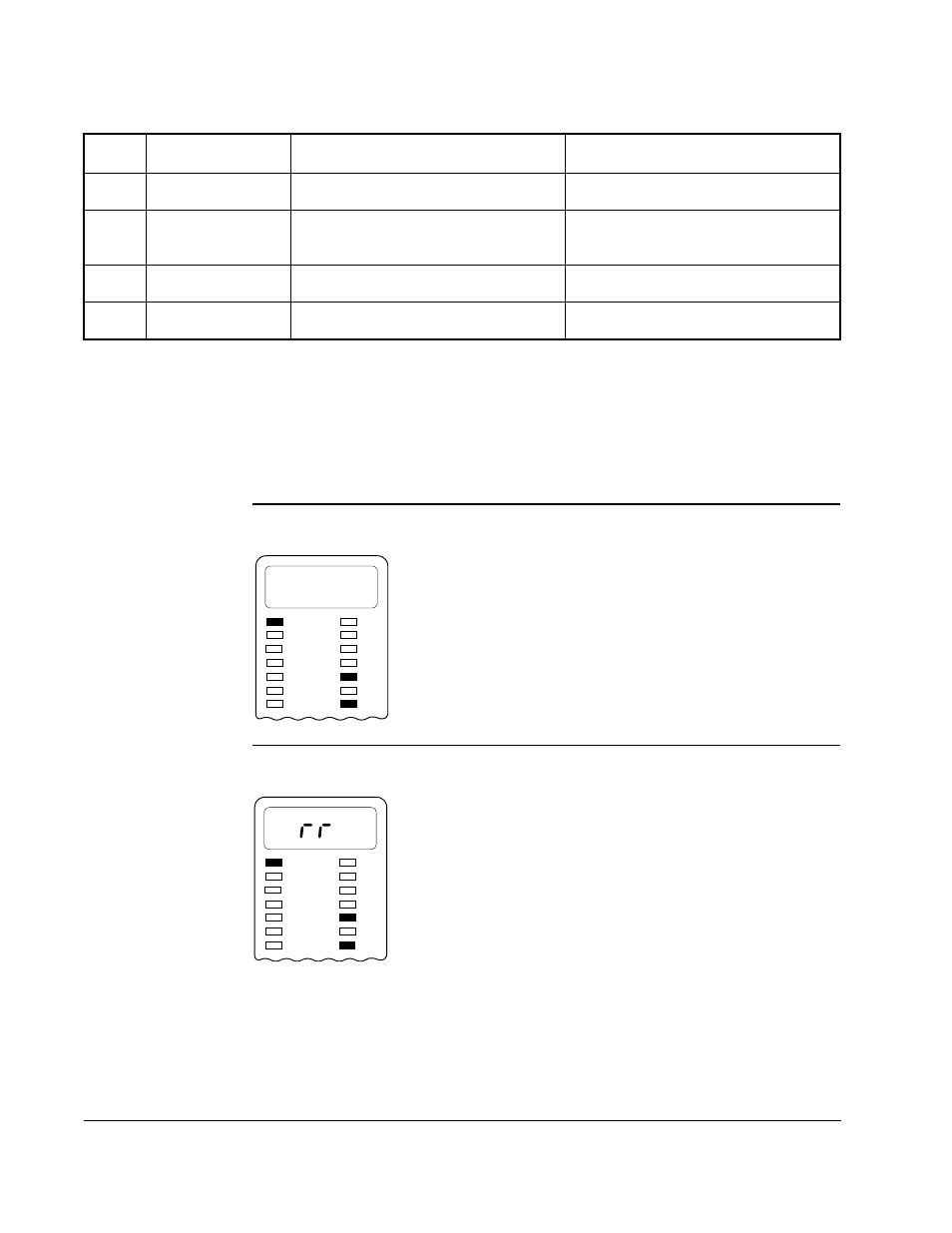

Step 1. Press the PROG key.
The First Menu General parameters are
displayed. The PROG LED will turn on.
Step 2. Press the
▼
key until Err is displayed.
3
530
9
$
+]
N:
754
3$66
581
-2*
$872
):'
5(9
352*
5(0
(
530
9
$
+]
N:
754
3$66
581
-2*
$872
):'
5(9
352*
5(0
