Configuring the Interbus Scanner 5-5
Step 4. Right-click on the Program icon and select
Description. Enter a name for the program (the actual
RSLogix500 file name is recommended), and any
additional information desired, as shown in figure 5.5.
Click OK when complete.
Step 5. When complete, the representation area will look as
shown in figure 5.6.

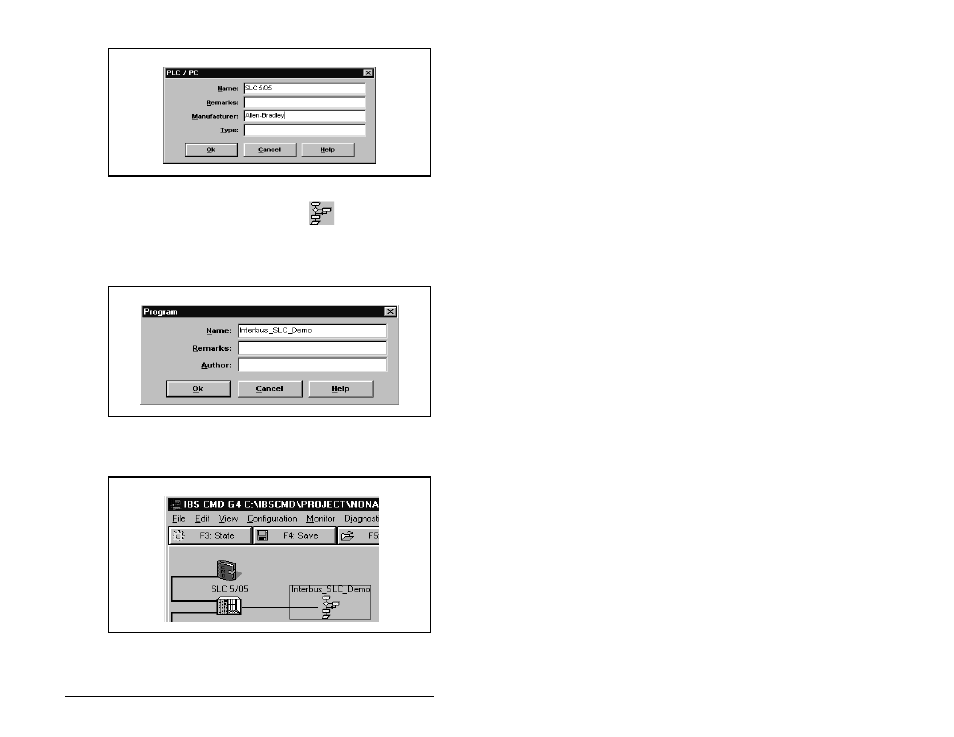

Figure 5.4 – Entering a Name for the Interbus Controller
Figure 5.5 – Entering a Name for the Interbus Program
Figure 5.6 – Sample Interbus CMD Project
Using SP600 w/RECOMM-IBUS
SP600 Interbus Demo
