5-6 Running Applications
Recipe Screens Recipe screens allow the MicroView to write multiple controller
addresses at the same time. Recipe screens can also be linked so that
more than one recipe is downloaded.
Depending upon the application designer, recipe screens will either
automatically download data or display a prompt allowing the
download to be initiated when [
] is pressed.
Once the download is initiated, the MicroView writes the recipe data
to the various controller addresses. You cannot modify the recipe data
that is sent, recipe data is specified by the application designer.
V
a
T4:14.2 (Timer Value)
N7:30 = 0 (Integer Value)
N7:31 = 100 (Integer Value)
T4:15:1 (Timer Value)
N7:100 = 500 (Integer Value)
B3:10 = 10 (Binary Value)

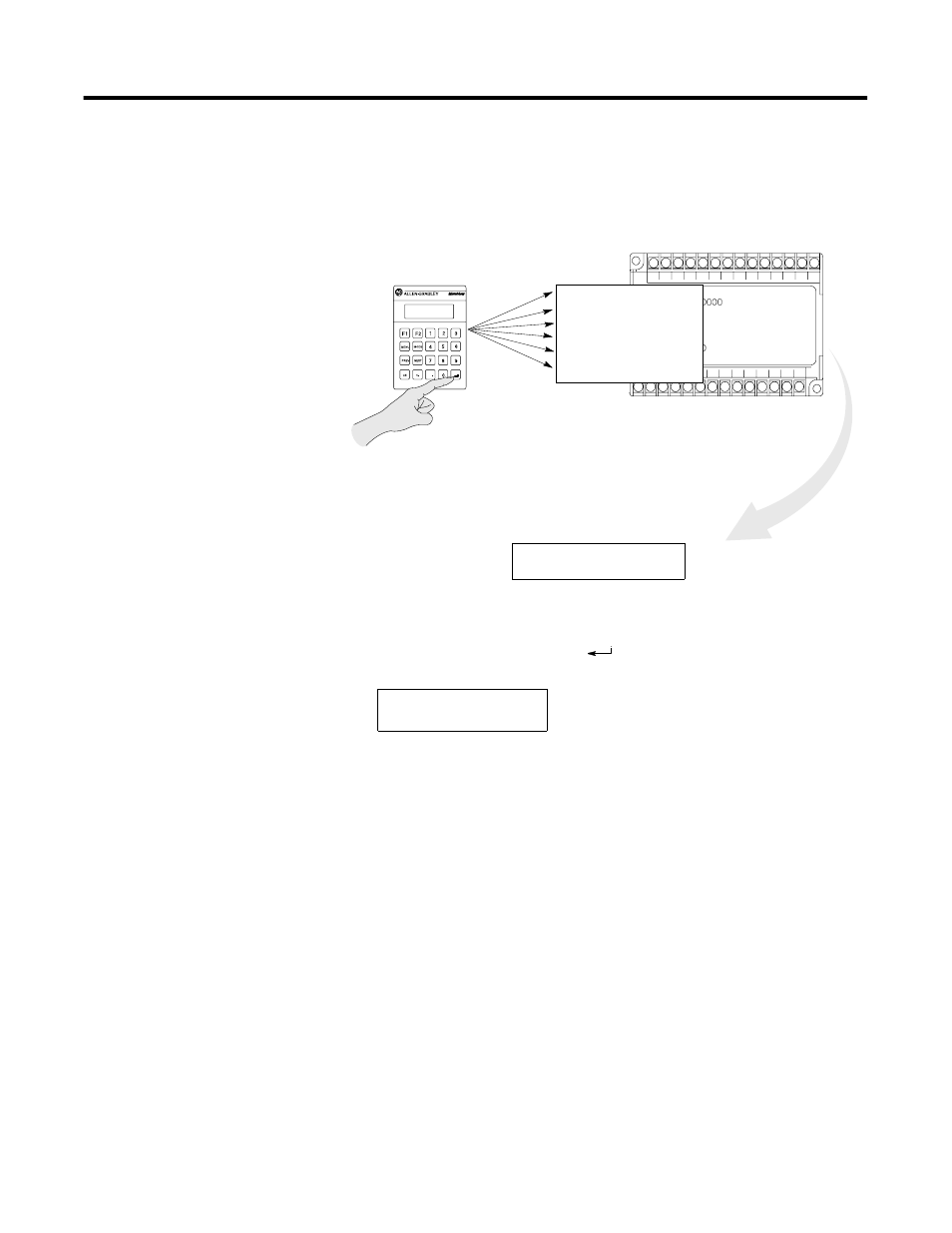

Operator Initiates
Recipe Download
MicroView Downloads Data to
Multiple Controller Addresses
MicroLogix Controller
MicroView Operator Interface
Controller Modifies Process
Using New Recipe Data
Download Recipe?
“ENTER” to Send
