Print Setup
The Print Setup screen lets you access screens to configure print
options for:
• Displays
• Alarms
• Diagnostic messages.
Display, Alarm, and Diagnostic Print Setup
The setup for printing displays, alarm messages and diagnostics
messages from an RSView .MER application is the same. The
Advanced Settings for each function are different.

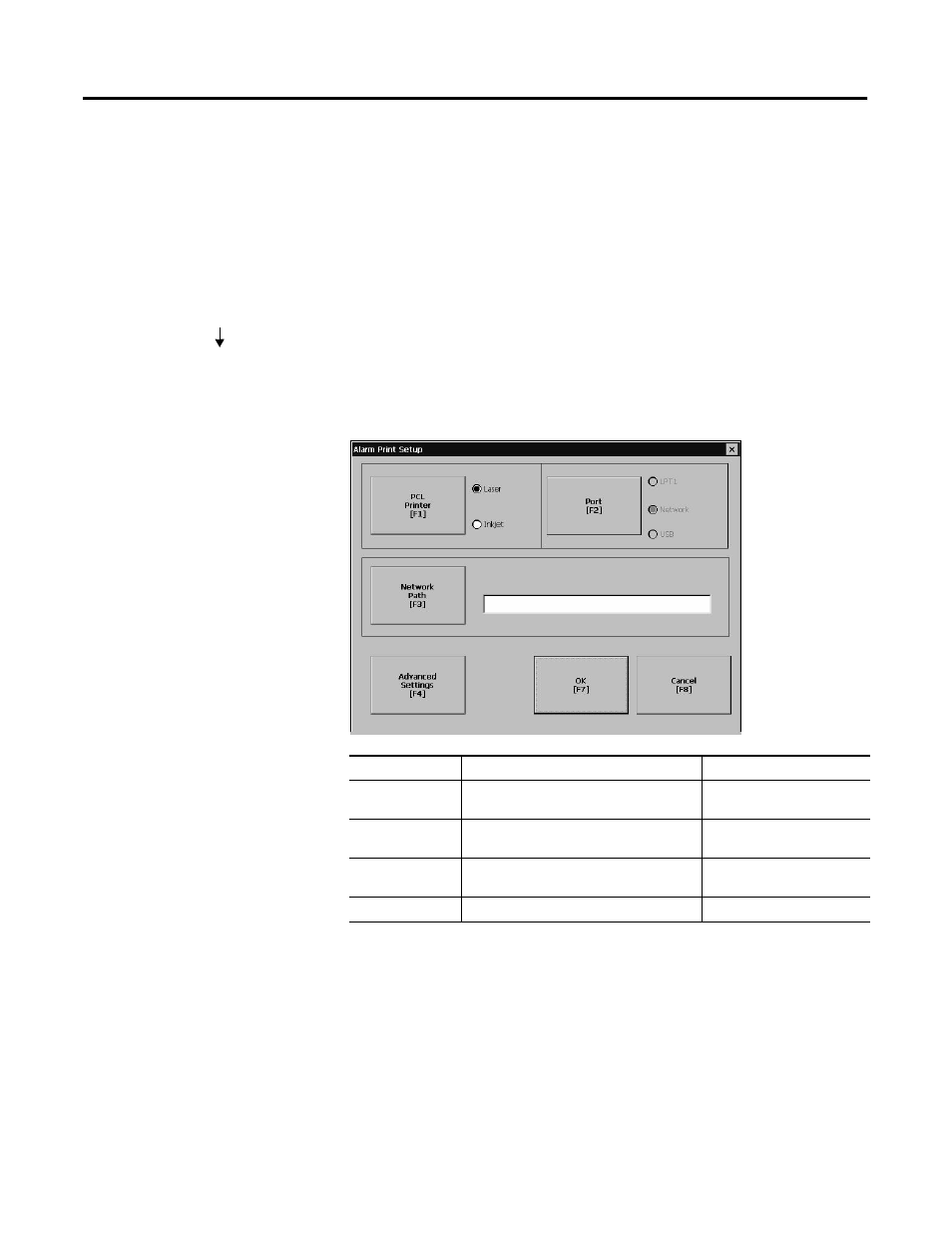

Advanced Settings for Display Print Setup
Select the Advanced Settings button to:
• change print orientation (portrait or landscape)
• enable or disable draft mode
Field
Description
Valid Values
PCL Printer
Type of printer to use.
Laser (default)
Inkjet
Port
Port to use for printing displays, alarm
messages, and diagnostic messages.
Network (default)
Network Path
Network path of printer to use if the Port
selection is Network.
519 characters maximum
Advanced Settings
Press this button to open additional settings.
