Publication 2727-UM002D-EN-P
1-2 Overview
The MobileView Guard G750 connects as a client to a Windows NT or
Windows 2000 server. It also provides a Windows CE platform for
applications generated with common visualization tools, Visual Basic,
Visual C++, and the CE 4.x Software Developers Kits (SDK) included
on the product CD.
The MobileView Guard G750 Catalog Numbers 2727-G7P20D1Q6 and
2727-G7P20D3Q7 support RSView Machine Edition Software.
The MobileView Guard G750 easily adapts to specific applications
using configurable operating and control elements.

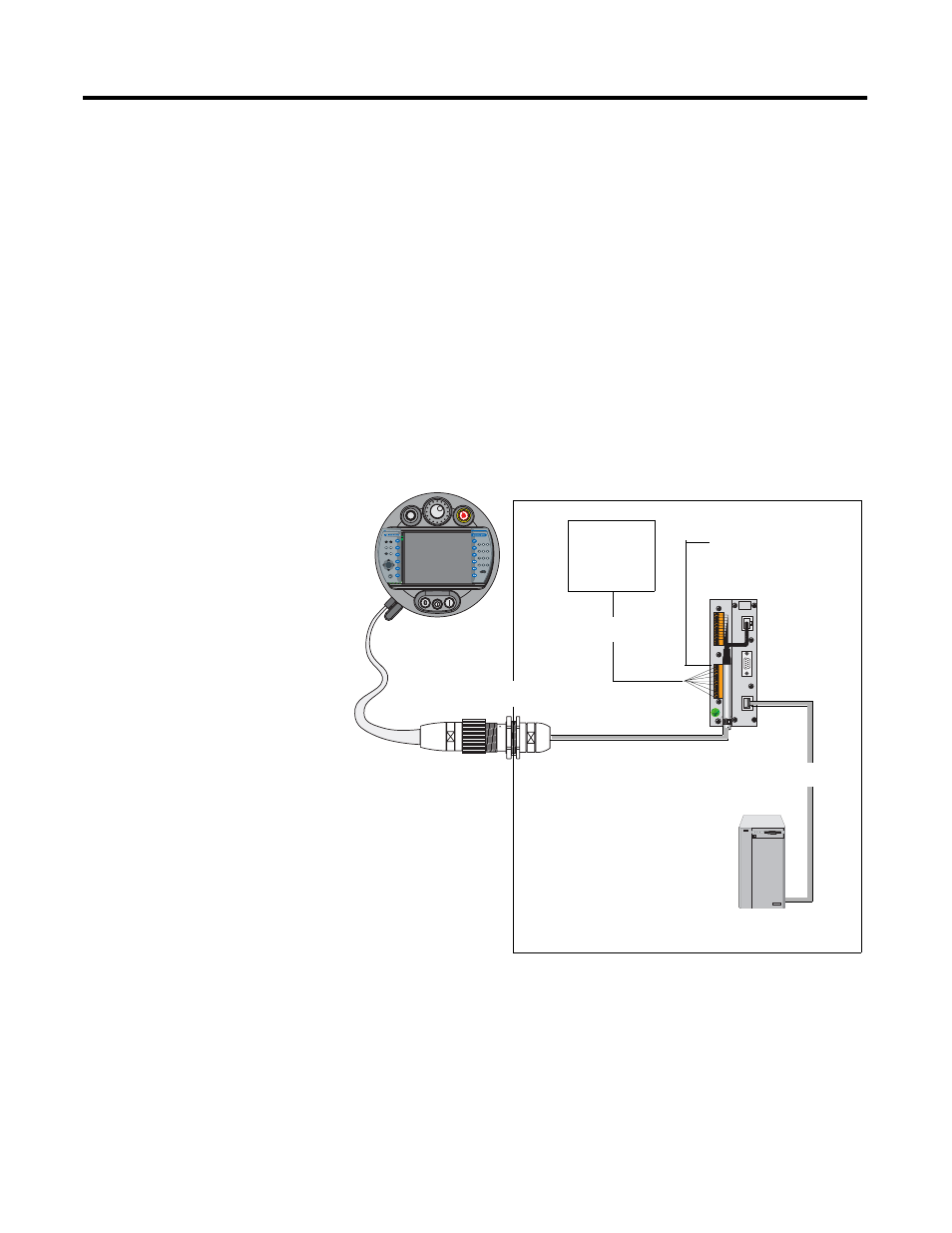

MobileView Guard Sample
System Configuration
7 8 9
4 5 6
1 2 3
. 0 -
ESC
K ETOP
R u n E rr o r
24V D C ON LY
TER M IN AL IN
R S422 OUT
ETH ER N ET O U T
+24V GND ES1+ ES1- ES2+ ES2- ED1 + ED1 - ED2 + ED2 -
+24V GND ES1+ ES1- ES2+ ES2- ED1 + ED1 - ED2 + ED2 -
MobileView
Junction Box
PILZ PST 1
Safety Relay
Local or Remote
Windows NT or 2000 Server
MobileView Guard Terminal
running as CE Thin Client and/or
Custom CE Applications
5, 10, 15, 20 meter mobile
Connection Cable
Discrete
Connections
Typical System Control Cabinet
24V dc Power
Ethernet
Connection
Discrete/Ethernet
Connection
